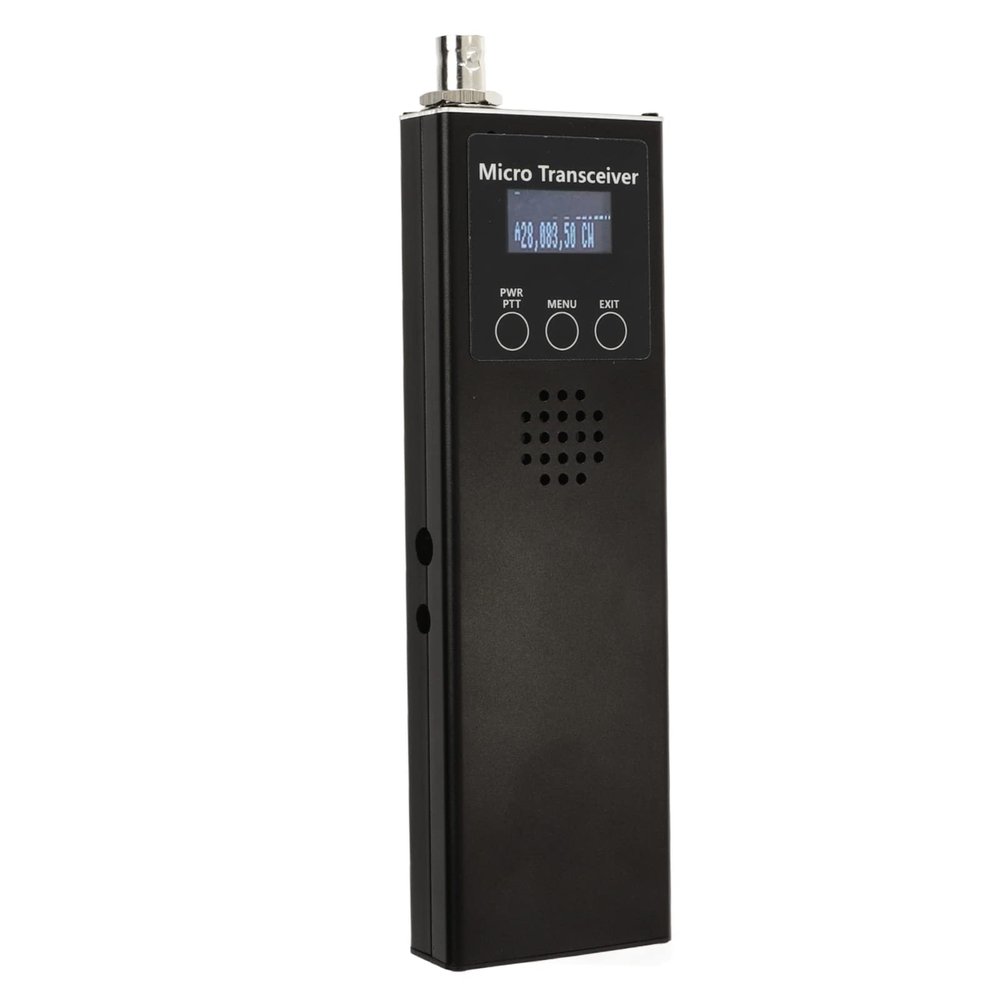

Handheld Transceiver, Wide Reception Range, Built in Battery, Lightweight, for Climbing, Hiking, Outdoor Activities, Site Monitoring (Plug)

Description

1. Great Efficiency: Designed to have a wide reception frequency range of 0.5MHz30MHz, the radio transceiver with 4 band coverage has high efficiency.
2. Has Longer Range: Moreover, the maximum range can get up to 1.5km, so the HF SSB QRP uSDX handheld radio receiver will meet your various work needs.
3. Built in Battery: The capacity of the built in battery is 1100mAh, and the rechargeable has a long working hour of 10 hours under reception mode.
4. Wide Application: Allows for broad application in climbing and hiking, outdoor activities, site monitoring and so on, very practical and reliable.
5. Simpler Carrying: Comes with a light weight and a compact size as well, the durable radio transceiver is very convenient to carry for your work.

Specification:
Item Type: Radio Transceiver
Battery: 1 x rechargeable lithium battery 1100mAh, shipped with built in battery. And under reception mode it can be used for about 10 hours.
Maximum Range: Approx. <1500m / 4921.26ft
Display: Yes
Model: Portable Transceiver
Receiving Frequency: 0.5MHz-30MHz. Theoretically, it can get to the upper limit of SI5351. (Since the product configuration of lpf is 10/15/20/40M four bands, the user needs to pair another lpf to suppress stray harmonics)
Transmission Frequency: 1.8-30MHz
Working Mode: CW, AM, SSB
Minimum Step Size: 10Hz
Antenna Impedance: 50
Working Temperature Range: 0 - +50
Power Supply Voltage: 10.5-16V DC, negative grounded.
Current consumption:
Current Consumption for Reception: 100mA, maximum.
Current Consumption for Release: 1A, maximum.
RF Output Power: 0.1-5W for SSB and CW. 0.1-5W for AM carrier at 13.8V DC.
Input: 100-240V
Output: 12V 1A
Product Size: Approx. 50 x 20 x 180mm / 1.97 x 0.79 x 7.09in

How to Use:
After startup, adjust the appropriate band to use.

packing list:
1 xRadio Transceiver
1 x Connecting Cable
1 x Adapter
1 x Converter
