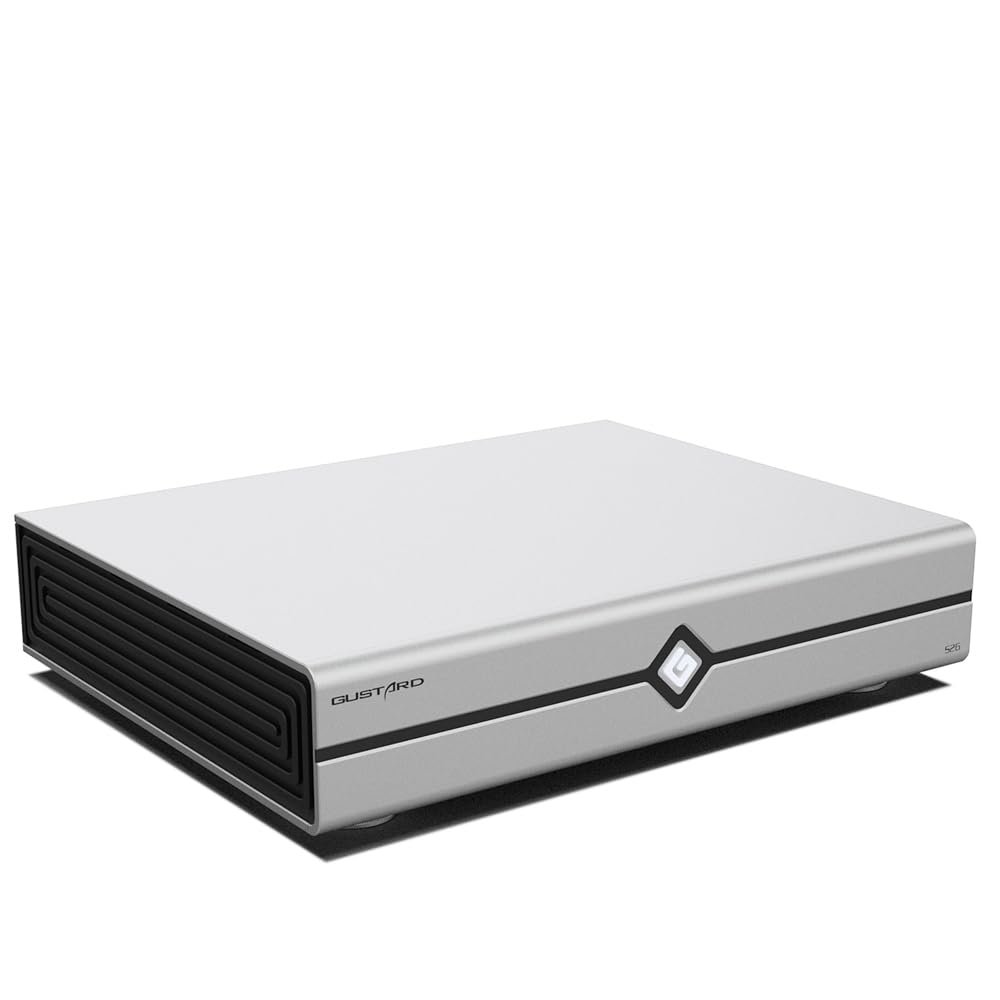

Gustard S26 Dedicated Music Server - Ultra-Low Latency Audio Processing System and Playback System Airplay UpnP Roon 32bit 768kHz DSD512 (Silver)

Description

• Gustard's S26 is a streamer designed to deliver exceptional audio performance thanks to the meticulous optimisation of each of its components. In fact, everything from the cooling system to the choice of hardware components and the power supply circuit has been designed to ensure smooth operation while reducing noise and jitter in the output signal as much as possible.
• Ryzen 5 5600U processor: The S26 is powered by a Ryzen 5 5600U. This powerful processor is based on the Zen 3 architecture, with 6 cores and 12 threads clocked at 2.3GHz and capable of going up to 4.2GHz in turbo mode, enabling the S26 to be fluid in all circumstances, ensuring unrivalled user comfort.
• Efficient cooling system: To avoid noise and interference, Gustard S26 opted for a heat pipe cooling system using copper tubes, guaranteeing efficient heat dissipation without the interference and mechanical vibrations that a fan could produce.
• Internal SSD memory: To store your favourite tracks in the best possible quality, the S26 is equipped with a 1TB NVMe SSD, giving you instant access to them thanks to the speed of this technology's roaming transmission, as well as the DDR4 RAM it's equipped with. Furthermore, if you wish for more storage, you can add up to 4TB of PCIe 3.0 SSD NVMe memory (SSD sold separately).
• Quality power supply: The S26's power supply is based on a 120VA OFC copper transformer. The current then passes through a double bridge rectifier capable of generating up to 800V in direct current with a capacity of 25A. Furthermore, the inrush current capacity of 400A guarantees the efficiency and reliability of the system. 40800F capacitors then stabilise the power supply to provide the device with a continuous energy supply without interference. The power supply to the various modules that make up the S26 is then provided via multiple independent circuits, each equipped with a low voltage drop regulator, ensuring a clean power supply whose noise never exceeds 5V.

S26 Music Server Specifications:
Model: S26
System: CelWare Audio OS
Motherboard: X86 Self-developed Motherboard
CPU: AMD 5600U, 6-core/12-thread, Base Frequency 2.3GHz, Turbo up to 4.2GHz
RAM: DDR4 8GB
Storage: 1TB SSD (Built-in)
Expansion Slot: 1x M.2 NVMe interface, supports PCIe 3.0x4 2280 SSD (Tested max 4TB)
Servicer Support:
Power Supply: 120VA Linear Power Supply
Servicer: CelPlayer Player,Roon Core,UPnP Server
Feature CelPlayer Pure Audio Player with In-Memory Playback Technology;
Bridge: Roon Bridge, UPnP Render, HQPlayer NAA, AirPlay, Spotify etc.

Input Interfaces:
USB: USB 3.0 (3A)
LAN Speed: 100/1000Mbps
10MHz Clock Input (BNC): Input Impedance:5000, Input Level: 0dBm-20dBm,
CMOS Square Wave: 0.2V-3.3V, Sine Wave: 0.5V-3.3V

Digital Output
IIS:
PCM: 44.1 kHz-768kHz 16Bit-32Bit;
DSD(NATIVE): DSD64-DSD1024;
DSD(DOP): 64-DOP256;

AES,Coaxial,Optical:
PCM: 44.1 kHz-192kHz 16Bit-32Bit;
DSD(NATIVE): Not Supported
DSD(DOP): DSD64

USB:
Determined by USB Audio Device

Other Parameters:
AC Power: 115V/230V 50/60Hz (Manual switching)
Power Consumption: 30-40W
Weight: 5.5kg
Packaged Weight: 7.3kg
Dimensions:
Unit: 330mm (W)x 260mm (D)x 65mm (H) (Excluding protrusions)
Packaging: 420mm(L)360mm(W)175mm(H)
