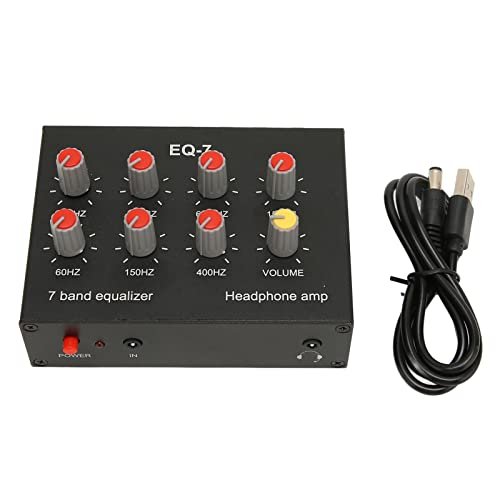

Graphic Equalizer HiFi Separates 7 Band Sound Equalizer Aluminum Alloy 7 Band Sound Equalizer Output Input 12Db High Bass Adjustment Dual Channel Digital Equalizer

Description

• Graphic Equalizer Hifi Separates Control Range: 7 Band Equalization Circuit Control Range 12Db, Equalization Band: 60Hz,150Hz,400Hz,1Khz,3Khz,6.5Khz,15Khz, By Ti Or St Original Tl074 Composition.
• 7 Band Sound Equalizer Basic Parameters: 7 Band Sound Equalizer Preamplification Gain, 4580 Op Amp Provides 5 Times Amplification (14Db); Input Impedan 20K, Output Impedan 600 Ohms.
• Graphic Equalizer Hifi Separates Compatible With Headphones: Sound Equalizer Ear Amplifier Part Of The Ne5532 Composed Of Type 47 Headphone Driver Circuit, Easy To Drive All Types Of Headphones, Adjustable High And Low.
• 7 Band Digital Equalizer 3.5Mm Interfa: 3.5Mm Input Interfa Supports 4 Pole Plug, The Output Connects To The Headset With A Microphone, Which Can Be Used On ll Phones For Normal Calls, And Another Terminal With A Group Lotus Interfa Is Available.
• 7 Band Sound Equalizer Aluminum Alloy: The 7 Band Car Sound Equalizer Is Made Of Aluminum Alloy, High Strength, Resistan, Stable Performan, Dc5V12V Power Supply, Dual Channel Sound.

1. Control Range: 7 band equalization circuit control range 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
2. Basic Parameters: 7 band sound equalizer preamplification gain, 4580 op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.
3. Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.
4. 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group lotus interface is available.
5. Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, , stable performance, DC5V?12V power supply, dual channel sound.

Specification:
Item Type: 7 Band Sound Equalizer
Material: Aluminum Alloy
Power Supply: DC5V-12V
Interface Specification: 5.5x2.1
Input Impedance: 20K
Output Impedance: 600 Ohms
Equalization Circuit Control Range: 12dB
Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ

How to Use:
Remove the product and use it

PackageList:
1 x 7 Band Sound Equalizer
1 Supply Cable
