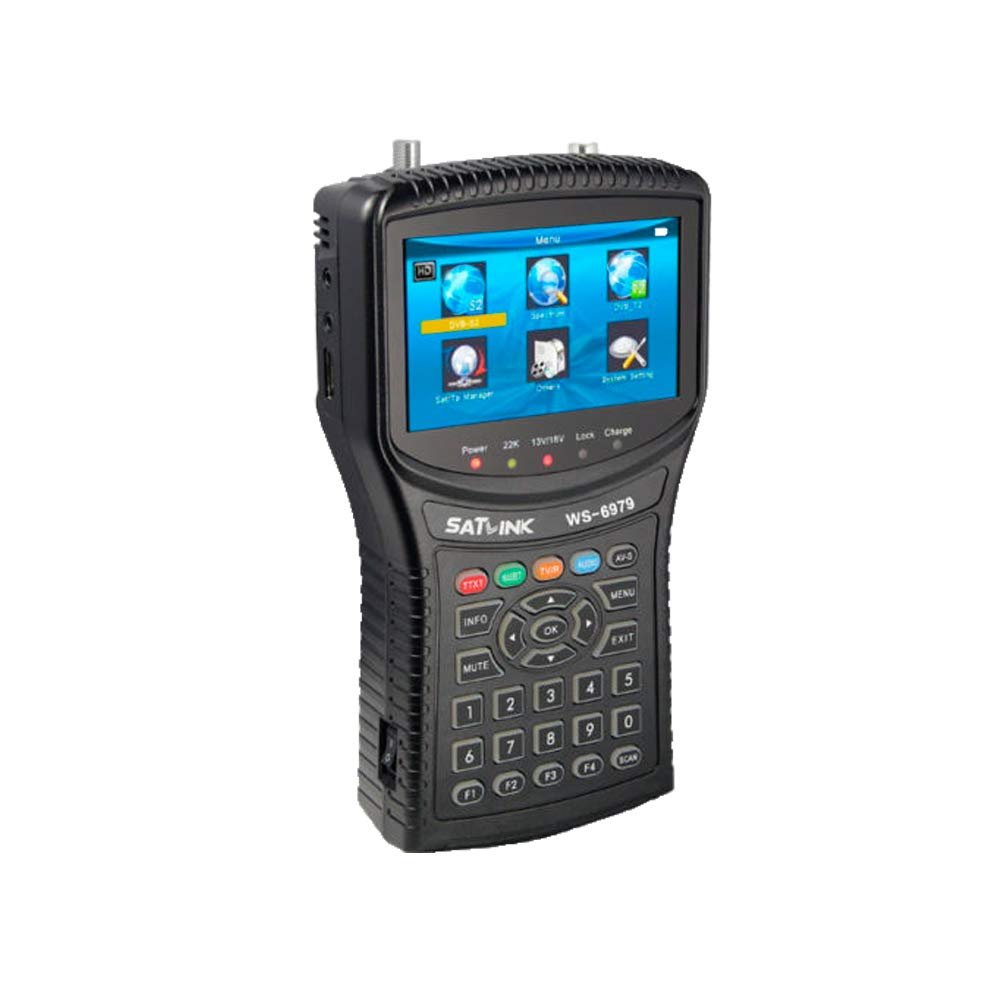

Graigar Satlink WS-6979 DVB-S2 & DVB-T2 Combo Digital Satellite Finder WS6979 Spectrum Meter Analyzer with TFT LCD Screen

Description

• Satlink WS-6979 Digital Satellite Finder has 4.3 Inch High Definition TFT LCD Screen.
• WS6979 Spectrum Meter Analyzer has Fully DVB-S/S2/T/T2, MPEG-2/MPEG4 compliant, MPEG-2 / H.264 Hardware decoding.
• Satlink WS-6979 Digital Satellite Finder is Digital meter for signal strength and quality, Constellation analyzer, Spectrum analyzer.
• Supports scan of Auto, Blind, Manual or NIT, Sound and Light Alarm for Locking Signal, Auto Calculate Angle of AZ ,EL, Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone.
• Speaker Integrated, Support both AV out and AV in, LNB short protect, 7.4V/3000mAh Li-Ion Battery Included, Software upgrade via USB port.

Note that:DVB-T is not supported in North America, so this function is not applicable in North America (Instead, DVB-T is supported in Europe.)
Feature
4.3 Inch High Definition TFT LCD Screen
Fully DVB-S/S2/T/T2,MPEG-2/MPEG4 compliant
MPEG-2/H.264 Hardware decoding
Digital meter for signal strength and quality
Constellation analyzer
Spectrum analyzer
Supports scan of Auto,Blind, Manual or NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ,EL
Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
Speaker Integrated
Support both AV out and AV in
LNB short protect
7.4V/3000mAh Li-Ion Battery Included
Software upgrade via USB port
Easy to carry
Specifications:
Standards: DVB-S2/S,DVB-T/T2
Connector Type F Type
Input Frequency 950 to 2150 MHz
Signal Input Level - 65 to -25 dBm
Band Switch Control 22KHz
LNB Supply 13V/18V, IMax 400mA
Demodulation Type QPSK,8PSK,16APSK
Symbol Rate 2
Video Output CVBS,
Audio output Stereo Audio L/R output
Video input CVBS,
Audio input Stereo Audio L/R input
Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD
resolution,H.264 MP&HP@L4,HW JPEG decoding
Signal compatibility Support conversion for different video formats
Video Format 4:3,16:9,By Pan & Scan and Letter Box
conversion Adapter OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz
Power consumption Max. 10W
Net Weight: 2kg
Package Included:
1xSatellite Meter Satlink WS-6979
1xAV cable
1xPower Adapter
1xCar Charger Cable
1 Silicone Case
1xUser's manual
