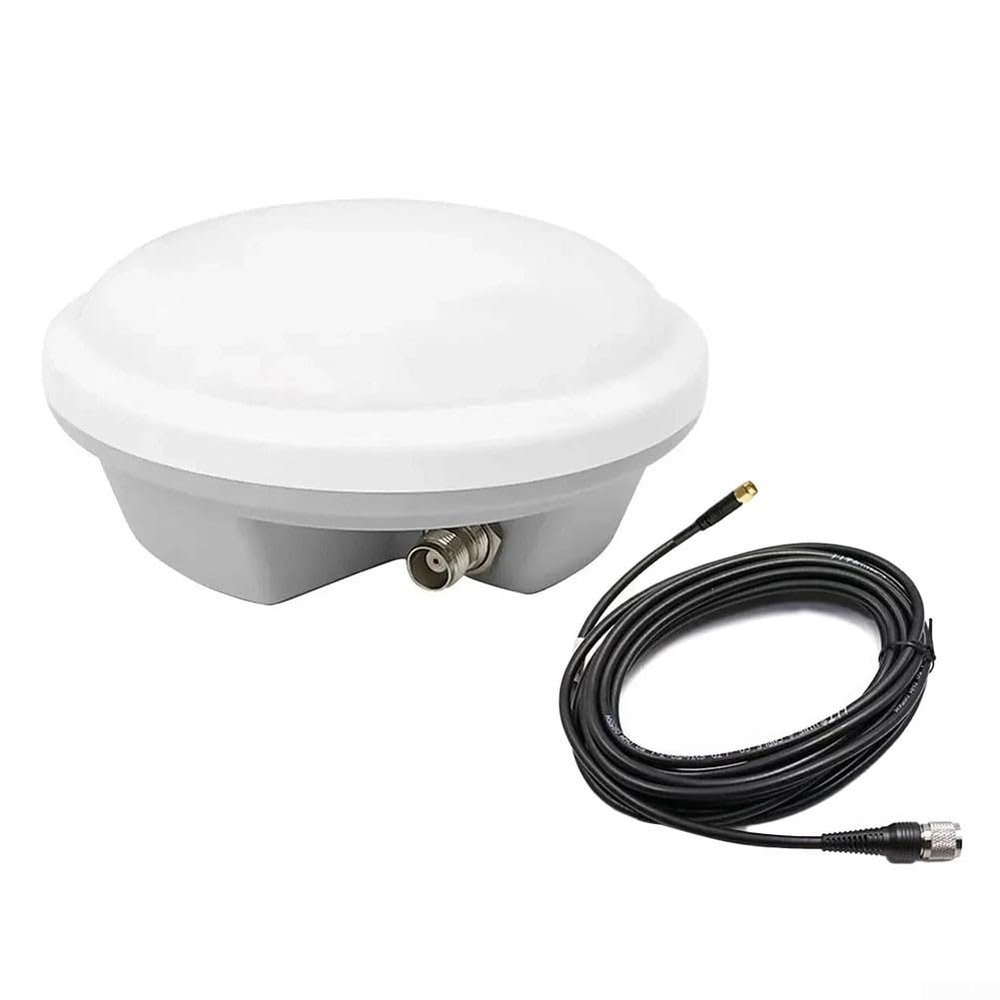

GNSS Antenna AG-35H GPS L1/L2/L5 BDS B1/B2/B3 Glonass G1/G2/G3 For Galileo Multi-Satellite High For Precision Receiver For Agricultural Survey Mapping White 152Mm(TNC-TNC)

Description

• [HIGH RELIABILITY GNSS ANTENNA] The AG-35H GNSS antenna is designed for high reliability, featuring a double-layer superposition structure that enhances signal reception across multiple satellite systems.
• [WIDE SIGNAL SUPPORT] This antenna supports a range of satellite signals including GPS L1/L2/L5, BDS B1/B2/B3, GLONASS G1/G2/G3, and E1/E5a/E5b/E6L Band for comprehensive coverage in navigation applications.
• [OPTIMAL GAIN PERFORMANCE] With a maximum gain of over 0dBi@FC, this antenna s strong signal strength for accurate positioning data in various environments.
• [ INSTALLATION] Designed for easy rooftop installation on vehicles or static mounts for mapping purposes; for surveyors and outdoor enthusiasts alike.
• [SIZING REMINDER] you check your device's compatibility; dimensions are 152mm x 5mm.

Features:
* Manufactured and tested under strict quality control standards.
* Stable performance and high reliability.
* AG-35H GNSS Antenna Magnet GPS L1 L2 L5 for Galileo Glonass BDs Car Roof for Agricultural Mapping AG35.
* Four-star full-frequency GNSS measurement antenna side outlet.

Specifications:
Part name: Full-frequency measurement antenna
Connecting wire (optional): TNC-TNCTNC-SMA
Material: ABS, metal
Color: white
Size: 152mm*67.5mm
Antenna structure: Four feed points, double-layer superposition structure
Supported satellite signals: GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L-Band
Maximum gain: >5.0dBi@FC
Polarization: Right-hand circular polarization (RHCP)
Antenna axis ratio @ : <1.5dB
Horizontal coverage angle: 360
Characteristic impedance: 50 ohm
Phase center error: 2.0mm
Phase center repeatability: 1.0mm
Working frequency: 1164MHZ~1300MHZ;1525MHZ~1621MHZ
Low noise gain: 40+2.0dB (Typ. @25C)
Installation : 5/8-11 and magnetic suction cup

Package contents:
1 x full-frequency measurement antenna
1 x connecting cable
