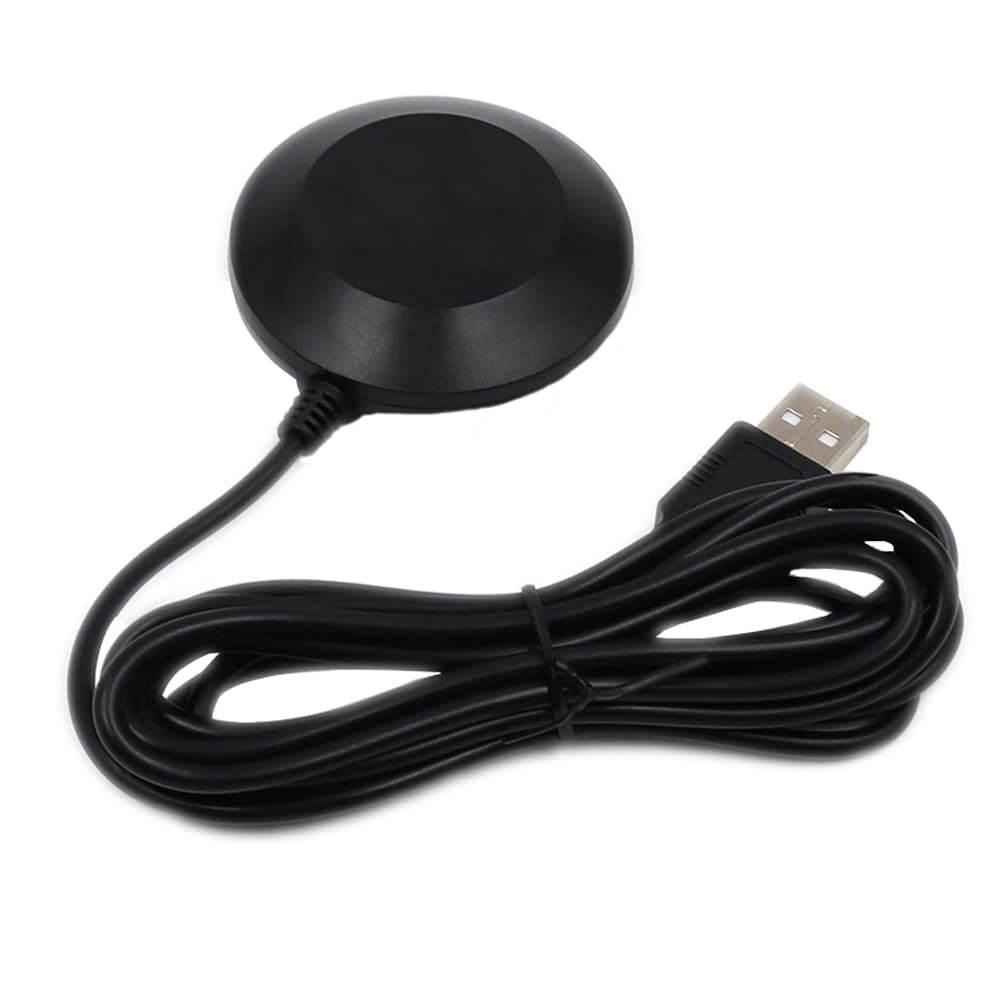

Geekstory BN-808 G-Mouse USB GPS Dongle Navigation Module M8030-KT Chip External GPS Antenna with 4M Flash USB GPS Receiver for Raspberry Pi Linux Windows 7 8 10

Description

• BN-808 USB GPS Module support windows and linux system, not for android and IOS system.
• BN-808 USB GPS receiver uses the latest eighth generation chip (M8030-KT). The Receiving Format: GPS, GLONASS, BDS, GALILEO, SBAS and QZSS. default GPS+GLONASS+SBAS+QZSS combined positioning. If you need high accuracy, it is recommended to use GPS+GLONASS+SBAS+QZSS+GALILEO or GPS+BDS+SBAS+QZSS+GALILEO combined positioning mode, and have 72 Searching Channel; Frequency: GPS L1GLONASS L1BeiDou B1SBAS L1Galileo E1
• You need to install the driver to use BN-808 USB GPS Module on Windows system, but it is plug and play on Linux system
• This usb GPS receiver has a cable length of 2 meters, Bottom with magnet adsorption, BN-808 USB GPS Module has 4M flash to save the configuration. So you don't need to reset the data when you use it next time
• The product documentation link cannot be displayed. If you need technical documentation, please click Geekstoryto em-ail us.
• Documentation you can find at the bottom of the details page - Product guides and documents: (User Manual (PDF), which contains details on how to use and links to the drivers.
• Drive link: https(:)//tinyurl.com/gps-module-manual

Description:

Chip: U8 (M8030-KT)
Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72 Searching Channel
Tracking: -167dBm
Reacquisition: -160dBm
Cold start: -148dBm
Hot start: -156dBm
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Support Rate: 4800bps to 921600bps,Default 9600bps
Data Level: Default USB level
Data Protocol: NMEA-0183 or UBX, Default NMEA-0183
Single GNSS: 1Hz-18Hz
Concurrent GNSS: 1Hz-10Hz,Default 1Hzv FLASH: build in 4M FLASH, You can free configure output data
VCC: DC Voltage 3.6V-5.5V,Typical: 5.0V
Current: Capture 50mA@5.0V
Software: U-center

Package Includes:
1 X BN-808 GPS Module
