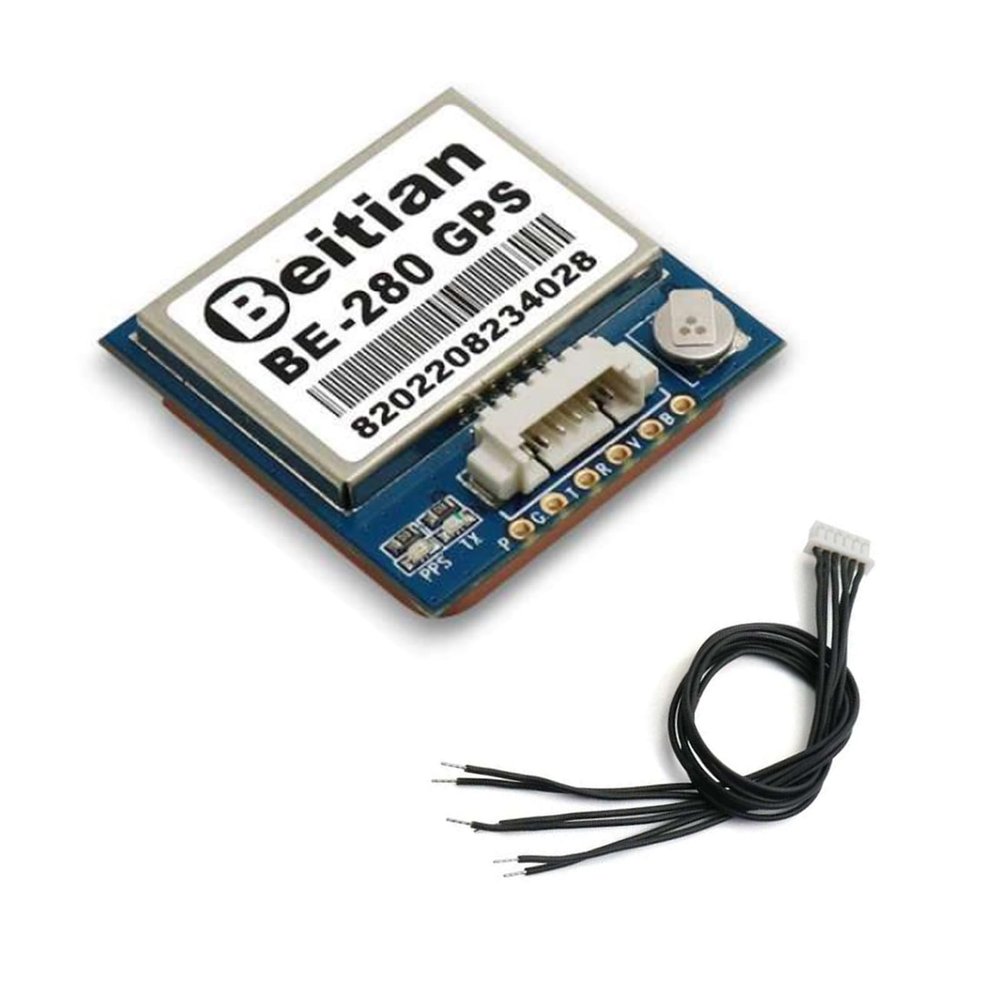

Geekstory BE-280 GPS Module M10050 Chip with Ceramic Antenna Positioning Tracking TTL Level 38400bps Beidou GPS Antenna for Arduino Raspberry Pi Aircraft Pixhawk APM Flight Controller

Description

• BE-280 gps module without flash memory to save configuration, so you need to reset data next time when you use it. And it has no compass. If you need gps with flash and compass, please buy bn-880bn-880q or be-880be-880q from Geekstory
• This BE-280 GPS Module using the latest 10th generation chip. When you use it for Raspberry Pi, there is no driver needed. Here is connection with RPi, red to 3.3v, black to gnd, green to txd, white to rxd
• Data Level : TTL or RS-232, Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable.
• The TX LED flash means gps module output normally. The PPS LED flash means gps module locate your place. Baud Rate : 4800bps to 921600bps, Default 38400bps.
• What you will get: 1*BE-280 GPS Module; 1*1.25mm 6pins Cable; 1* 1.25mm 6P Connector Male Cable; 1*1.25mm 6P Connector Female Cable

Description:
Chip: M10050
Receiver mode: GPS, Galileo, BDS, QZSS and SBAS
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
72 search channel
Baud rate: 4800bps-921600bps, 38400bps by default
Output level: TTL or RS-232, TTL by default
Output agreement: NMEA-0183 or UBX, NMEA-0183 by default
Single: GNSS:1Hz-18Hz
Standard: GNSS:1Hz-10Hz,1Hz by default
Size: 28*28*8.4 mm

Module pin
1.PPS, Sec pulse will output after positioning, pulse period is 1s, high level persists 100 ms, used for system synchronization
2.GND, connect to the ground
3.TX data output of module
4.RX data input of module
5.VCC, 3.0V-5.5V, recommend 5.0V
6.BOOT

Package Includes:
1 X BE-280 GPS module
3 X Cable
