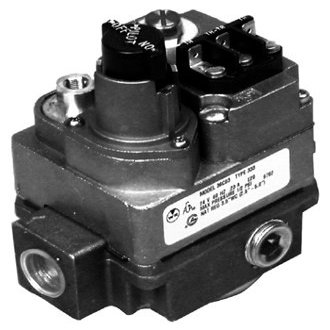

Gas Valve, 2 Stage Fast Open, Natural/LP by White-Rodgers

Description

36H64-463 Universal Electronic Ignition Gas Valve White-Rodgers The versatile 36H series gas valve cover a wide range os applications. Designed for use with most electronic ignition systems (HIS/DSI/Proven Pilot), it replaces hundreds of existing models in the field. The 36H Series is White-Rodgers' highest capacity gas valve. White-Rodgers is the leading manufacturer of gas valves to the OEM. When it's time to replace - replace with the same brand trusted by OEM's on their equipment! Features: Convertible - natural or LP gas Conversion Kit Included Adjustable regulators Inlet/outlet screens Electric on-off switch Inlet & Outlet Pressure taps Reducer Bushing Kit: Included CSA approved Specs: Electrical Rating: 0.54 Amps Voltage: 24 VAC Frequency: 50/60 Hz Operating Ambient Temperature: -40 Degrees to 175 Degrees F (-40 Degrees to 79 Degrees C) Pressure Rating (max.): 1/2 PSI (14.0" W.C.) Pipe Size: 3/4 x 3/4 Opening Characteristics: Fast Stages: 2 HIS/DSI: Yes Proven Pilot: Yes Standing Pilot: No Intermittent Pilot: Yes 1" PD Capacity: Natrual Gas: 300,000 Liquid Propane: 486,000 Regulator Adjustment Range: Natrual Gas: 1" to 3.5" Low, 2.5" to 5.0" High Liquid Propane: 4.0" to 9.5" Low, 8.0" to12.0" High Available Literature: Installation Instructions Specification Sheet Wiring Diagram Field Conversion
