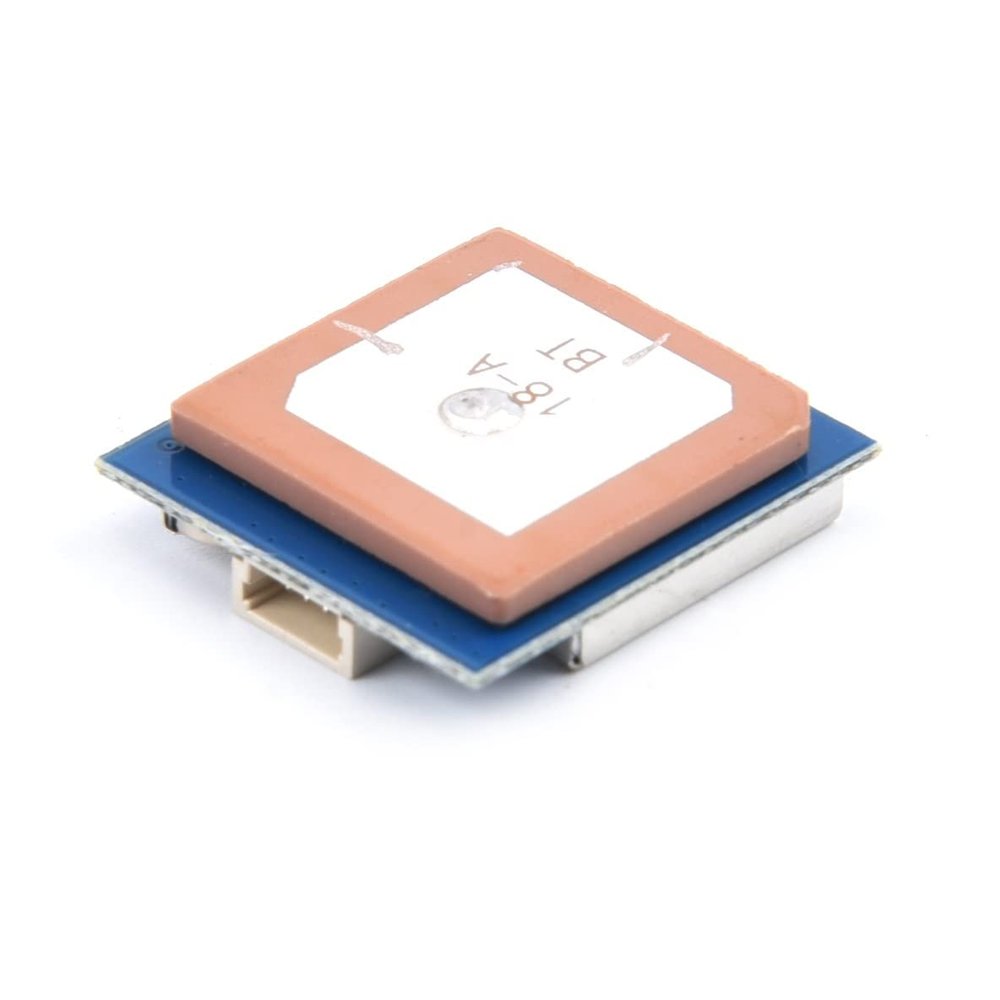

FTYUERT Drone toy accessories For BN-220 BN220 3.6V-5.0V TTL GNSS GLONASS Dual GPS Module Built in FLASH for Mini F3 F4 Flight Control FPV Frame Kit(1PCS BN-220 GPS)

Description

• Made of - -, reliable and durable,
• Repair parts, used for accidental damage replacement, making repairs more worry-free,
• Long service life and easy to install.
• Tested in good condition,100% working!

For BN-220 BN220 3.6V-5.0V TTL GNSS GLONASS Dual GPS Module Built in FLASH for Mini F3 F4 Flight Control FPV Frame Kit

Model: For BN-220 GNSSmodule
Features:
Iitem
Description
Electrical Characteristics
Chipset
M8030-KT
Frequency: GPS L1, GLONASS L1, BDSB1, SBAS L1, QZSS L1
Receiving Format GPS,GLONASS,BDS,SBAS,QZSS.
Default GPS, GLONASS, SBAS, QZSS.
Channels: 72SearchingChannel
Sensitivity
Tracking: -167dBm
Reacquisition: -160dBm
Cold Start: -148dBm
Hot Start: -156dBm
Accuracy
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Acquisition Time
Cold Start: 26s
Warm Start: 25s
Hot Start: 1s
Data Output
Support Rate: 4800bpsto921600bps,Default 9600bps
Data Level
TTL Level
Data Protocol: NMEA-0183
NMEA Message
RMC, VTG, GGA, GSA, GSV, GLL
Update Rate
1Hz-10Hz,Default1Hz
FLASH
4M FLASH, Store the configuration permanently
Operational Limits
<;50,000m
<;515m/s
<;4g
Power Consumption: VCC
DCVoltage3.6V-5.5V, Typical:5.0V
Current: Capture50mA/5.0V
Mechanical Specifications
Dimension: 22mm*20mm*6mm
Weight: 5.3g
Connector: 1.00mm4pinsconnector
Environment
Operating Temp: -40 C ~ +85C
StorageTemp -40C ~ +105C
LED Built-inLED
TX LED: blue. The data output, TX LED flashing
PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed
Pin Description:
PIN
PIN Name I/O
Description
1 GND
G Ground
2 TX
O Serial Data Output.
3 RX
I Serial Data Input.
4 VCC
I DC 3.6V-5.5V supply input,Typical:5.0V
1pcs or 2pcs or 3pcs x BN-220 GPS Module with cable
