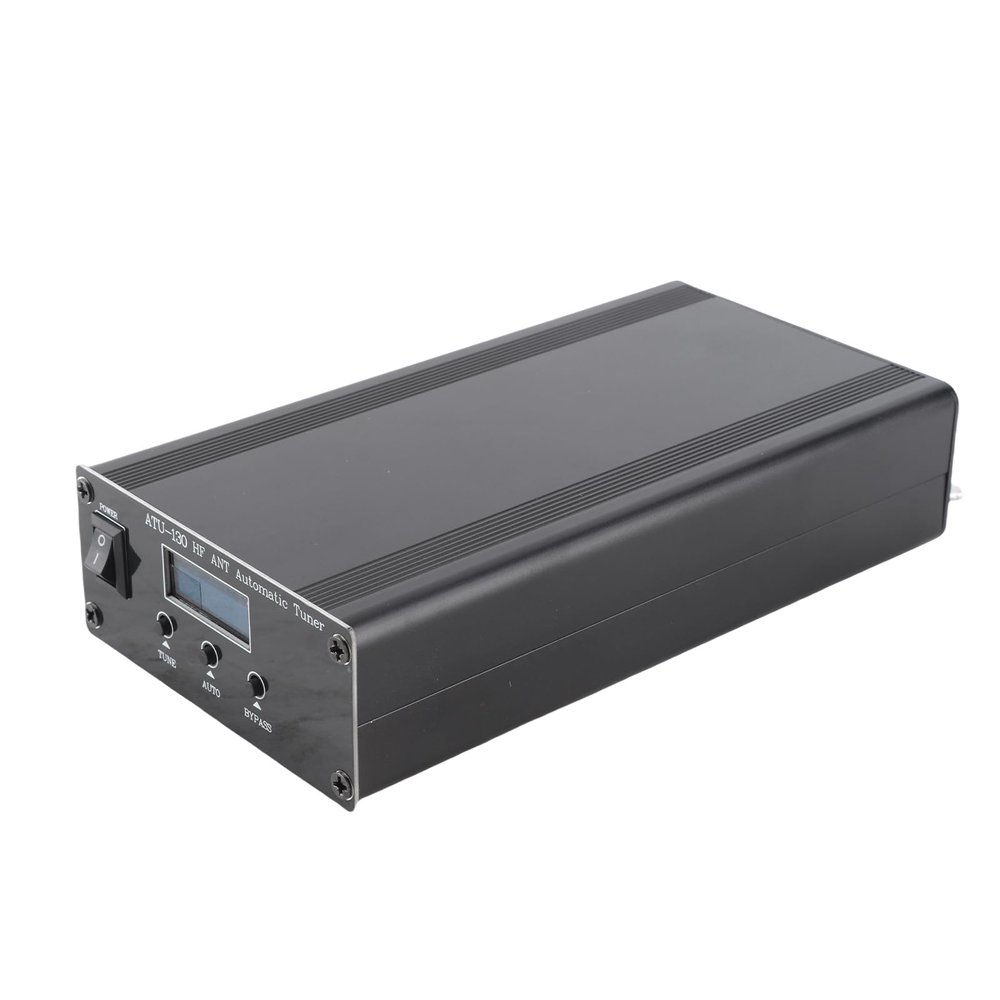

200W Automatic Antenna Tuner for 1.8 50MHz Shortwave Bands with OLED Display Compact Design Ham Radio Station Tuner for Stable Signal

Description

• ANTENNA TUNER: Miniature shortwave automatic antenna tuner, without any control line operation, suitable for most radio stations.
• GOOD PERFORMANCE: Higher level capacitance, larger magnetic ring, thicker wire diameter, greater power bearing capacity, total inductance 12.4uh.
• EXCELLENT PARTS: Adopts C channel 1000V high voltage SMD capacitor, advanced chip and UHF connector to ensure
• COMPACT SIZE: The automatic antenna tuner has compact structure, convenient connection, portable design is suitable for home or vehicle use.
• After-sales: If you have any questions after purchase, please us in time, we will answer your questions seriously and provide high-quality after-sales service.

Specification:
Item Type: Automatic Antenna Tuner
Model: ATU-130
Material: Aluminum Alloy
Power Supply Voltage Range: 10-15VDC (+in the center)
Maximum Current Consumption: 500mA
Maximum Working Power: 150W
Starting Tuning Minimum Power: 5W
Minimum Measurable Power: 0.1W
Measurement Accuracy Up to 10W Power: 0.1W
Measurement Accuracy Greater Than 10W Power: 1W
Maximum Installed Inductance: 8.53?H
Minimum Installation Inductancee: 0.05?H
Micro Automatic Antenna Tuner Features:
Has the function of power meter standing meter (according to BYPASS, straight through mode, one horizontal line in the middle of the screen, the test value is approximate, and the accuracyis lower than that of professional high accuracy meter, for reference).
PIC18F2520, MCU (faster).
Short machine automatic antenna tuner
The third edition adopts the design of 4 large magnetic ring inductors, which generates less heat than the original edition.
HF32, 10A, HF33, 5A relays are used.
High voltage porcelain chip capacitor is adopted.
The maximum measurable value is SSB 275w. It is recommended that the SSB should not exceed 200w for a long time.
For other continuous modes, the power shall not be greater than 100W (FT8, CW, FM, when the standing deviation is large before adjustment, the power shall be reduced as appropriate, and it is recommended to use 10min interval for 5min).
Size: Approx. 38 x 88 x 155mm / 1.5 x 3.5 x 6.1in (excluding projections)
Weight: Approx. 0.5Kg / 17.6oz (portable, suitable for vehicle, indoor and outdoor fixation, etc.)
1.8-50MHz (specifically affected by antenna length and standing deviation).
Tuning Impedance Range: 5?-1.2K?
Application: Can be used for long line (recommended), GP (recommended), inverted V, bipolar, end fed and other antennas to adjust standing and match short machine impedance.

Package List:
1 x
