for CNC for Breakout Board Adapter for Stepper Motor Driver, USB to for CNC Interface Converter with -Axis Control, Parallel Port Adapter for CNC Spindle Speed and 0-10V Analog

Description

• For CNC For Breakout Board Adapter: Enables seamless connection between USB interface and stepper motor drivers for precise For CNC machine control with full support for parallel port-dependent software including WIN For XP and WIN7 32-bit systems

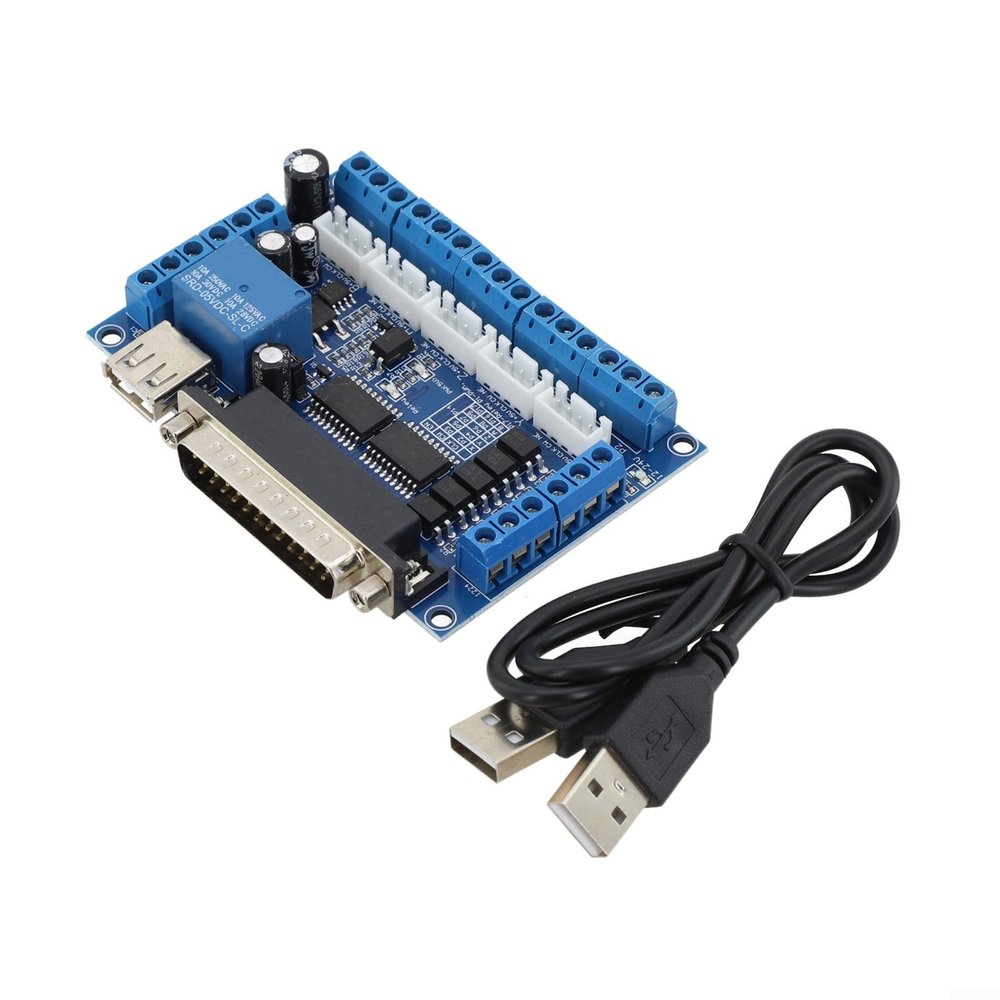

• Kit Included: Package contains x -ax is For breakout board adapter and x USB cable for immediate setup and integration into existing For CNC systems reliable signal transmission across all 17 ports
• Dual Power Isolation Design: Features separated USB power supply and peripheral power input (12-24V) to maintain computer safety while supporting wide voltage range with anti-reverse connection to avoid damage
• Advanced Signal Protection: All input signals are optocoupler-isolated allowing safe integration of stop buttons and limit switches while P1 port supports 0-10V analog output or for spindle speed regulation
• Flexible Output Configuration: For relay output spindle on/off switching via P17 port and compatible with both common cathode and common anode inputs up to 5V enabling control of up to -ax is stepper motors

Product description

Features and Made of materials, sturdy and Fully supports for and other computer software to support parallel port control USB power supply and peripheral power supply are separated to protect computer security Peripheral wide voltage input, 12-24V, with anti-reverse connection function All input signals are isolated and can be connected to tool emer gency stop and limit to protect computer safety O ne For relay output port to control the spindle switch. Output port P17 port O ne channel outputs 0-10V analog voltage through optocoupler isolation, which can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port All 17 ports are open, can be connected to optocoupler drive, and can control -ax is stepper motors P1 is for output, which can control the spindle speed regulator through optocoupler input Can be driven by common cathode or common anode input level up to 5V Specification: Size: about 90*61*15mm Cable length: approx. 50 cm Notice: The laptop must have its own parallel port, USB to parallel port cannot be used! ! for software supports WIN for XP (recommended!), WIN7 32-bit can barely use it, but WIN7 64-bit does not support it! The USB to parallel port cable cannot be used because the parallel port converted in this way is virtual. Package Included: x -ax is for breakout board x USB cable Note: .The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness. 2.Please allow slight manual measurement deviation for the data.
