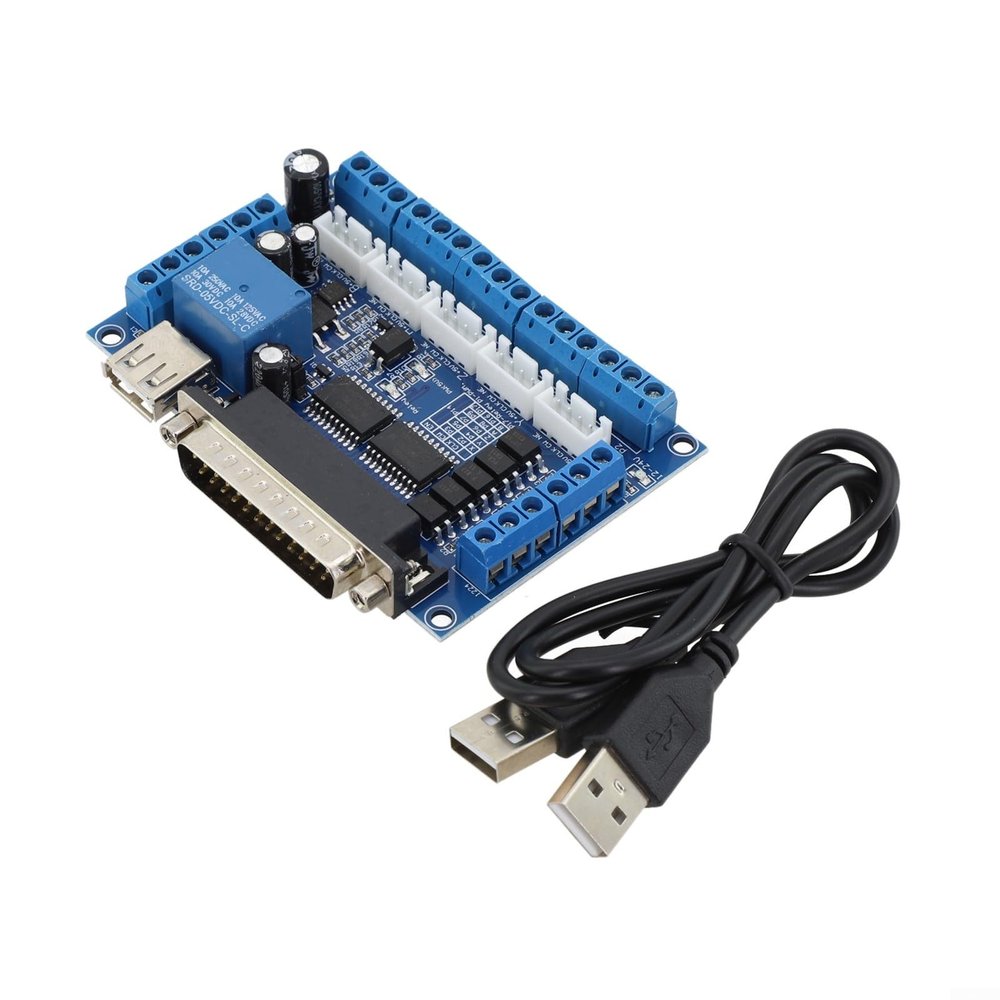

for CNC for Breakout Board Adapter for 5-Axis Stepper Motor Driver, USB to Parallel Port Interface Converter with Isolated Inputs, 0-10V Analog Output, for Relay Control for

Description

• 5-Axis For CNC Control Board: Fully supports parallel port control software on For XP (recommended) and WIN7 32-bit systems enabling seamless integration with common 5-axis stepper motor setups for precise machining operations this board is designed to work specifically with computers that have a native parallel port as virtual USB to parallel adapters are not supported
• For CNC Interface Adapter: Connects directly to For breakout boards and stepper motor drivers providing isolated input signals to enhance system safety by allowing connections to stop buttons and limit switches while separating USB power from peripheral power to protect computer hardware during operation
• USB Powered For Breakout Board Solution: Features a general wide voltage input range of 12-24V with anti-reverse connection protection and optocoupler-isolated 0-10V analog output on P1 port for spindle speed control when paired with compatible converters stable performance under varying load conditions
• For Relay And Analog Output Functionality: Includes For relay output port (P17) to control spindle on/off switching and a dedicated output on P1 for regulating spindle speed via optocoupler input supporting both common cathode and common anode signal types up to 5V for flexible integration
• Compact Design With Full Port Access: All 17 ports are open and connected to optocoupler drives for enhanced signal transmission measuring approximately 90*61*15mm with a 50cm USB cable included note that actual color may vary slightly due to and screen settings

Product description

Features and Made of materials, sturdy and Fully supports for and other computer software to support parallel port control USB power supply and peripheral power supply are separated to protect computer security Peripheral wide voltage input, 12-24V, with anti-reverse connection function All input signals are isolated and can be connected to tool emer gency stop and limit to protect computer safety O ne For relay output port to control the spindle switch. Output port P17 port O ne channel outputs 0-10V analog voltage through optocoupler isolation, which can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port All 17 ports are open, can be connected to optocoupler drive, and can control 5-ax is stepper motors P1 is for output, which can control the spindle speed regulator through optocoupler input Can be driven by common cathode or common anode input level up to 5V Specification: Size: about 90*61*15mm Cable length: approx. 50 cm Notice: The laptop must have its own parallel port, USB to parallel port cannot be used! ! for software supports WIN for XP (recommended!), WIN7 32-bit can barely use it, but WIN7 64-bit does not support it! The USB to parallel port cable cannot be used because the parallel port converted in this way is virtual. Package Included: 1 x 5-ax is for breakout board 1 x USB cable Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness. 2.Please allow slight manual measurement deviation for the data.
