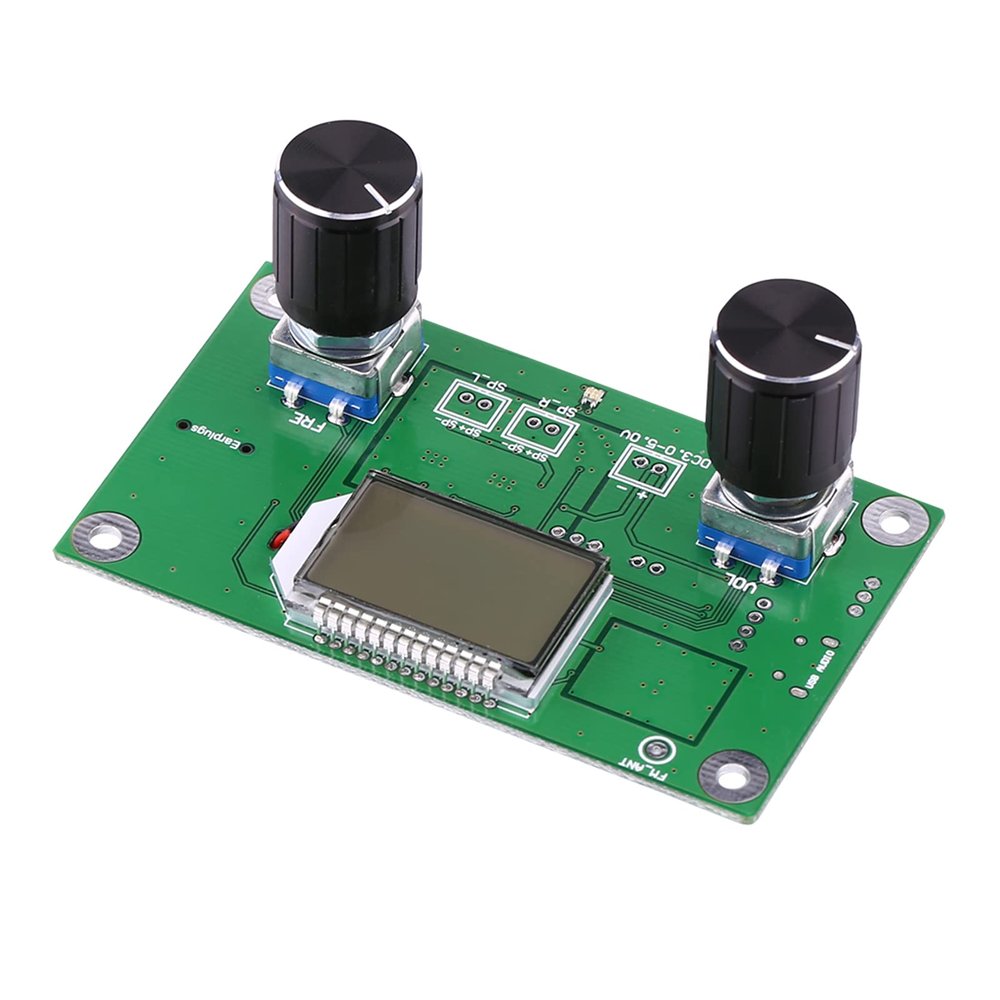

FM Radio Module, Stereo FM Radio Receiver Module with LCD Display DSP PLL 87-108MHz Receiving Support Serial Port Control

Description

• LCD display is more intuitive and accurate, and has very low power consumption and tiny noise interference
• Using incremental digital 360 rotating encoder to adjust volume and frequency, which is accurate, stable, , and also offers comfortable hand feeling
• Using quartz crystal for frequency stabilization, and receiving frequency will not drift when temperature changes
• Using professional audio DSP to process and analyze audio , auto mute when there is no or week as big FM base noise, in order to get rid of the annoying rustle of traditional FM radio
• Advanced digital audio processing (DSP) and FM phase-locked modulation (PLL) ensure less sound distortion and more

Features:
Advanced digital audio processing (DSP) and FM phase-locked modulation (PLL) ensure less sound distortion and more
LCD display is more intuitive and accurate, and has very low power consumption and tiny noise interference.
Automatic store data when the power is out.
Automatic switching between speaker and earphone output.
Using quartz crystal for frequency stabilization, and receiving frequency will not drift when temperature changes.
Using professional audio DSP to process and analyze audio , auto mute when there is no or week as big FM base noise, in order to get rid of the annoying rustle of traditional FM radio.
Using incremental digital 360 rotating encoder to adjust volume and frequency, which is accurate, stable, , and also offers comfortable hand feeling.
30-class digital volume adjustment range.
Support serial communication control, so you can use computer, MCU and other equipment with serial port to control module.

Specifications:
Output Power: 500mW (drive earphone), 3Wx2 (drive speaker)
Frequency Response: 50Hz to 18KHz
Receiving Frequency Range:
87.0MHz to 108.0MHz(close campus broadcast),
76.0MHz to 108.0MHz(open campus broadcast)
Equivalent Noise: ?30dB
Input Voltage: DC 3V to 5V
Input Current: 1000mA at maximum volume, 60mA at minimum volume (for reference only)
Channel: Stereo
Size: 75 x 45 x 30mm / 2.95 x 1.77 x 1.18
Screen Size: 25 x 16mm / 0.98 x 0.63

Instruction:
1, Use battery or regulated power supply as power source.Switch-mode power supply without filter such as power bank, phone charger ca
