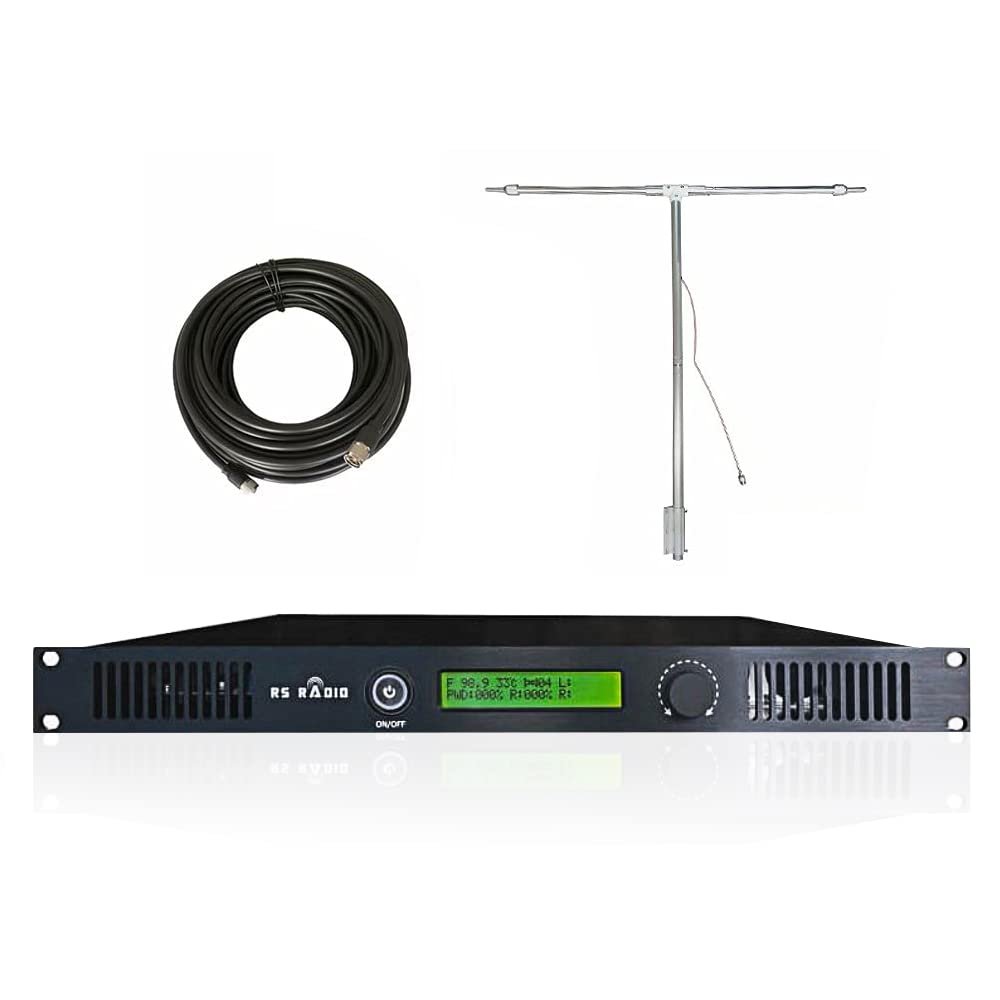

FM Broadcast Transmitter 200W+Antenna+Cable for Church, Long Range Professional Low Power FM Radio Broadcasting Equipment Transmitter Kit for Radio Station,Home

Description

• Frequency ResponseThe frequency of fm long range transmitter can be set up your own channel within this range and transit music.
• Long Range TransmissionThis radio station transmitter in high power mode can transmit about 10-15km,Wide spread, effectively avoid crowd gathering. Suitable for open places like Church, drive-in service, shopping mall etc.
• LCD DisplayFM professional broadcast transmitter adopts a blue LED screen which can clearly display various indications.You can easily set all the parameters.
• Excellent Heat DissipationThis FM Broadcasting Transmitter with a fan heat sink and high-quality aluminum alloy material, which can effectively extend the life of the device. Even if works for a long time, it will not be hot.
• Adjustable Power outputThe RF out of this 200watt FM transmitter is continuously adjustable from 0-200 watt at the stepping of 0.1watt, which means you can tune it to 50w...100w...200w with just one transmitter youll get multiple modes of outputs and easy to tune as per your needs.

Technical Specifications

1.Working Voltage:AC100V-AC260V
2.Working Current:1A
3. Frequency Stability:10PPM
4.Frequency Stepping:100KHz
5.Environment temperature:-10~45
6.Output Impedance:50
7. RF output power:0W~200W
8.Harmonic, clutter radiation:60dB
9.Audio distortion:0.5%
10.Frequency Response:50Hz~15000Hz
11.Separation:35 dB
12.Input level:15 dBV
13.Frequency Modulation:75KHZ
14.SNR:65dB
S/N:75dB(30H~15kHz,100%)
Pre-emphasis:0S,50S,75S
15.Size:18.9*13.6*1.8inch

FEATURES:
1.Primary Application: high quality at a very attractive price.Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%.
2.Reliability/Continuity: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
3. Audio Performance: low distortion and intermodulation values and a high noise/signal ratio.
4.Operating Efficiency: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
5. Ease of Maintenance: advanced module engineering ensures extreme of access and simple maintenance. Includes an high performance air filter. The power supply is plug-in type, easily removable.
6.Interface Control: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
7.Input/Output Interface: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. TOSLINK, AES/ EBU digital audio inputs are available as an option.
8. Remote Control: built-in telemetry system via GSM modem or via WEB/SNMP (option).
9. Regulatory Compliance: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

Product package
Transmitter, Power line, Audio line, Antenna,cable
