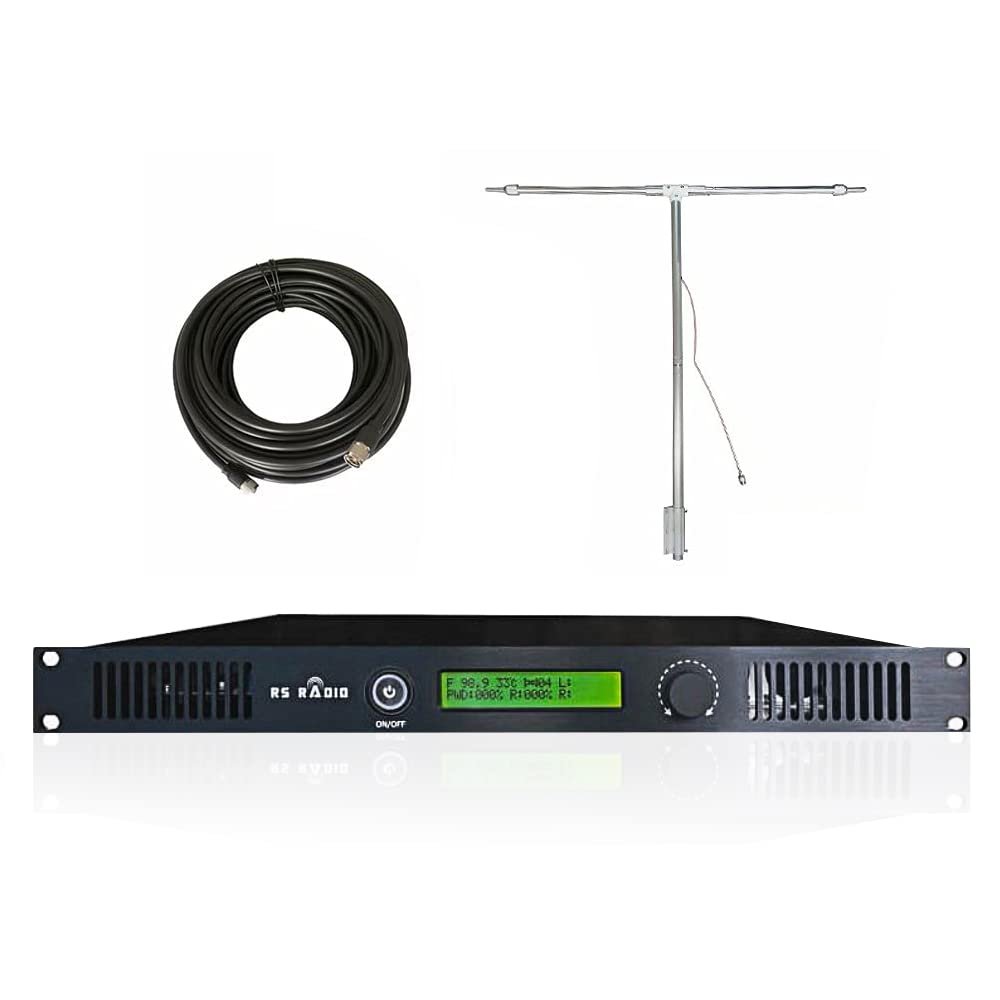

FM Broadcast Transmitter 100W+Antenna+Cable for Church, Long Range Professional Low Power FM Radio Broadcasting Equipment for Radio Station,Home

Description

• Frequency ResponseThe frequency of FM radio broadcast transmitter can be set up your own channel within this range and transit music.
• LCD DisplayFM Broadcasting transmitter adopts a blue LED screen which can clearly display various indications.You can easily set all the parameters.
• Excellent Heat DissipationThis long range FM transmitter with a fan heat sink and high-quality aluminum alloy material, which can effectively extend the life of the device. Even if works for a long time, it will not be hot.
• Long Range TransmissionThis FM radio transmitter in high power mode can transmit about 7-12km. Wide spread, effectively avoid crowd gathering. Suitable for open places like Church, drive-in service, shopping mall etc.
• Over SWR ProtectionSWR is the indication of antenna system connection with fm broadcast transmitter. Once the connection is bad and causing a high SWR Value, the fm radio transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.

Technical Specifications

1.Working Voltage:AC100V-AC260V
2.Working Current:1A
3. Frequency Stability:10PPM
4.Frequency Stepping:100KHz
5.Environment temperature:-10~45
6.Output Impedance:50
7. RF output power:0W~100W
8.Harmonic, clutter radiation:60dB
9.Audio distortion:0.5%
10.Frequency Response:50Hz~15000Hz
11.Separation:35 dB
12.Input level:15 dBV
13.Frequency Modulation:75KHZ
14.SNR:65dB
S/N:75dB(30H~15kHz,100%)
Pre-emphasis:0S,50S,75S
15.Size:18.9*13.6*1.8inch
Frequency:88-108MHZ

FEATURES:
1.Primary Application: high quality at a very attractive price.Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%.
2.Reliability/Continuity: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
3. Audio Performance: low distortion and intermodulation values and a high noise/signal ratio.
4.Operating Efficiency: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
5. Ease of Maintenance: advanced module engineering ensures extreme of access and simple maintenance. Includes an high performance air filter. The power supply is plug-in type, easily removable.
6.Interface Control: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
7.Input/Output Interface: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. TOSLINK, AES/ EBU digital audio inputs are available as an option.
8. Remote Control: built-in telemetry system via GSM modem or via WEB/SNMP (option).
9. Regulatory Compliance: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.

Product package
Transmitter, Power line, Audio line, Antenna,cable
