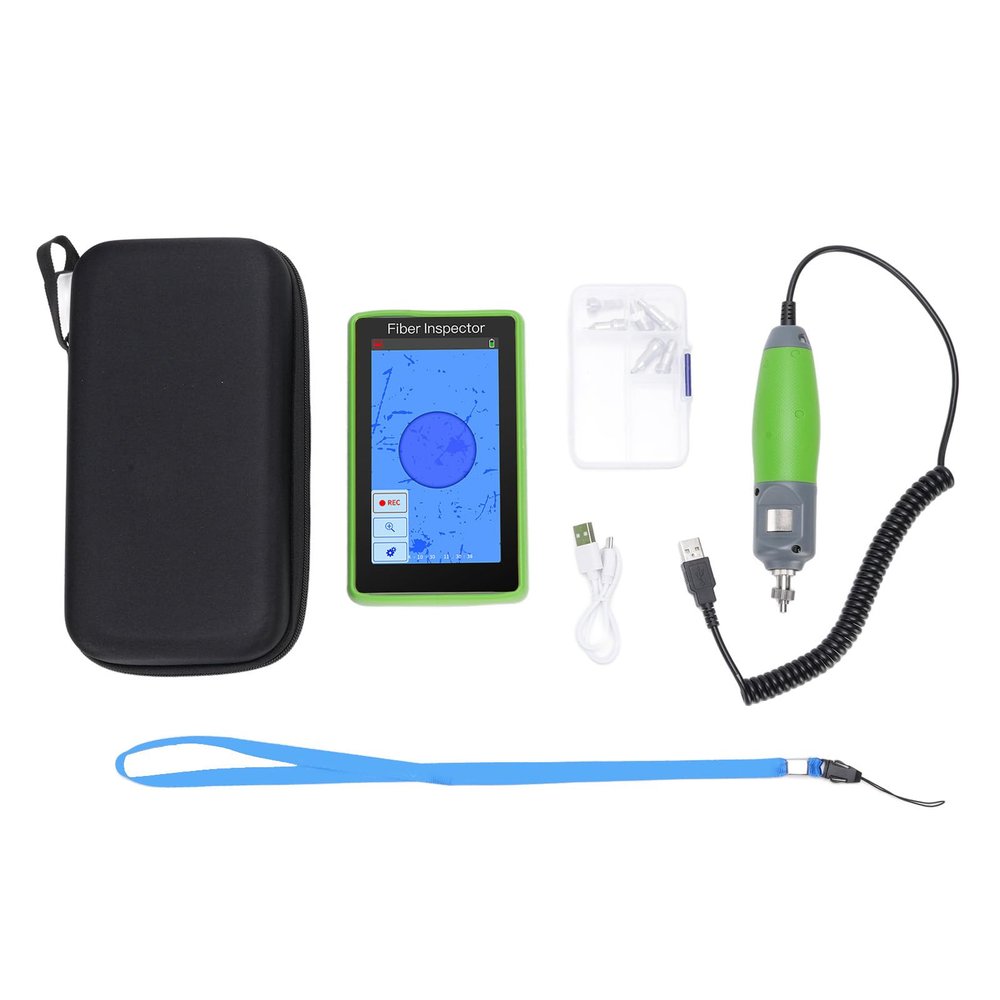

Fiber Optic Microscope 400X Magnification 5 Inch LCD Touch Screen for SC FC ST LC Connectors

Description

• [Fiber End Face Inspection] The fiber end face detector is equipped with SC, FC, ST, LC male and SC, LC female connectors, suitable for multiple interfaces, can quickly check the cleaning effect of fiber optic connectors to ensure network performance.
• [Real Time Measurement Recording] This fiber inspection video probe features real time video recording capabilities and small memory card (without) slot, convenient for recording measurement information, supporting data playback, easy for inspection and statistical analysis.
• [Long Battery Life] Equipped with a 4000mAh battery, the fiber optic inspection microscope ensures over 7 hours of continuous use, suitable for extended field testing sessions.
• [High Resolution Display] The fiber optic inspection probe boasts a 5 inch high definition LCD display with high brightness and clarity. Supports various functions including video recording, voice editing, image catch, zoom, grid judgment, and data storage.
• [User Friendly Design] The fiber optic inspector features a removable thick silicone case for impact guard and features a stand for easy viewing, ensuring safety and user comfort.

Spec:
Item Type: Fiber End Face Detector
Material: ABS
Model: AUA-600
5 Inch LCD Display:
Image Size (mm): 22
Image Pixels: 854x480
Video Frequency: 25FPS
LCD Screen: 960x240 LCD
Video Output Mode: NTSC/PAL
Video Playback Format: AVI
User Interface:
Compatible Storage Card: Small Memory Card (Not Included)
Capacity: 8GB
USB: 1.1/2.0
Hard Drive Format: FAT32
Power Supply:
AC Charger: 5V 2A
Internal Battery: 4000mAh Lithium Cell x 1 (Built in)
Battery Life: 7H
Detector:
Magnification: 200X, 400X (Default 200X)
Resolution (um): 854x480
Visible Range (um): 0.316x0.285
Size (WxDxH): Approx. 160x38x38mm / 6.30x1.50x1.50in
Image Sensor: 1/3 480
Storage Temperature: -18~35

How to Use:
Follow the instruction manual.

PackageList:
1 x Display (Without Small Memory Card)
1 x Detector
6 x Connector
1 x USB C Data Cable
1 x Lanyard
1 x User Manual
1 x Storage Box
1 x Carrying Bag
