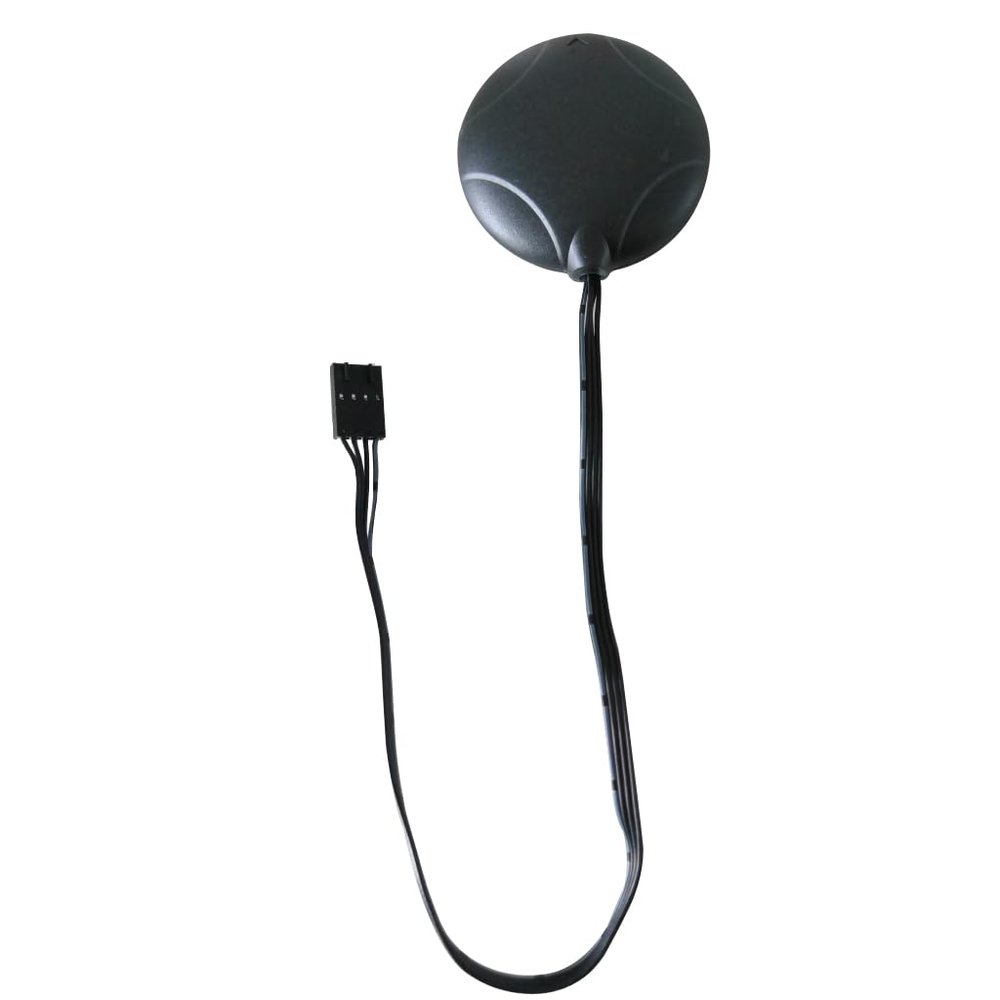

FEICHAO M10S G3 GPS Module TTL Parameter Adjuster Compatible with NAZA LITE V2 Flight Control (G3 Module)

Description

• It adopts U-xxxx/10 generation M10S four- mode module, which supports GPS+ Beidou + compatible with Galileo + compatible with Glonas four-mode satellite search, fast satellite search.
• 32-bit single chip processing data, performance and stability better than 8-bit single chip. (NAZA flight control also adopts 32 bit single chip microcomputer)
• The bottom adopts a shielded tinfoil metal label, which can effectively reduce the interference of GPS sources below the bottom. Built-in electronic compass with temperature compensation, automatic offset compensation.
• Perfect compatibility with NAZA-M/LITE/V1/ V2 flight control, EIf1/2/2 +,NAZA-H straight aircraft flight control. The method of use is the same as the original GPS method of compatible with DJI NAZA.
• Note: The first thing you do whenyou receive your GPS is to calibrate the electronic compass on the plane,which is very important. The arrow direction at the top of GPS is the direction of the nose, please pay attention when installing.

Specification:
Diameter: 55mm
Cable length: 270mm

Function:
1. The method of use is the same as the original GPS method of compatible with DJI NAZA.
2. Built-in electronic compass with temperature compensation, automatic offset compensation.
3. The bottom adopts a shielded tinfoil metal label, which can effectively reduce the interference of GPS sources below the bottom.
4. The method of calibrating the electronic compass is the same as the original GPS.

Calibration Method:
1. Connect the GPS to the flight control, and then toggle the mode transfer switch of the remote control continuously 7-10 times. At this time, the LED light of NAZA is orange and long bright.
2. Rotate the aircraft horizontally for 1 turn, then the LED light is green and long bright. Repeat the above steps if calibration is unsuccessful.

Online Upgrade:
1. Download Viva Firmware update program.
2. Connect the T1P using a USB to TTL cable (the CH340G chip is recommended to use USB to TTL).
Connect the TX from USB to TTL to RX from G3
Connect the RX from USB to TTL to TX from G3
3. Open the downloaded [fkjFirmwareUpdate V2.1.exe], select the corresponding serial port number, and then click to open the serial port.
4.Tips:
Update to change satellite search mode:
V7.0 firmware is GPS+ Compatible with Galileo + Compatible with Beidou
V7.1 firmware is GPS+ Compatible with Galileo + Compatible with Glonass

Note:
1. The flight controller will not include.
2. The first thing you do whenyou receive your GPS is to calibrate the electronic compass on the plane,which is very important. The arrow direction at the top of GPS is the direction of the nose, please pay attention when installing.
