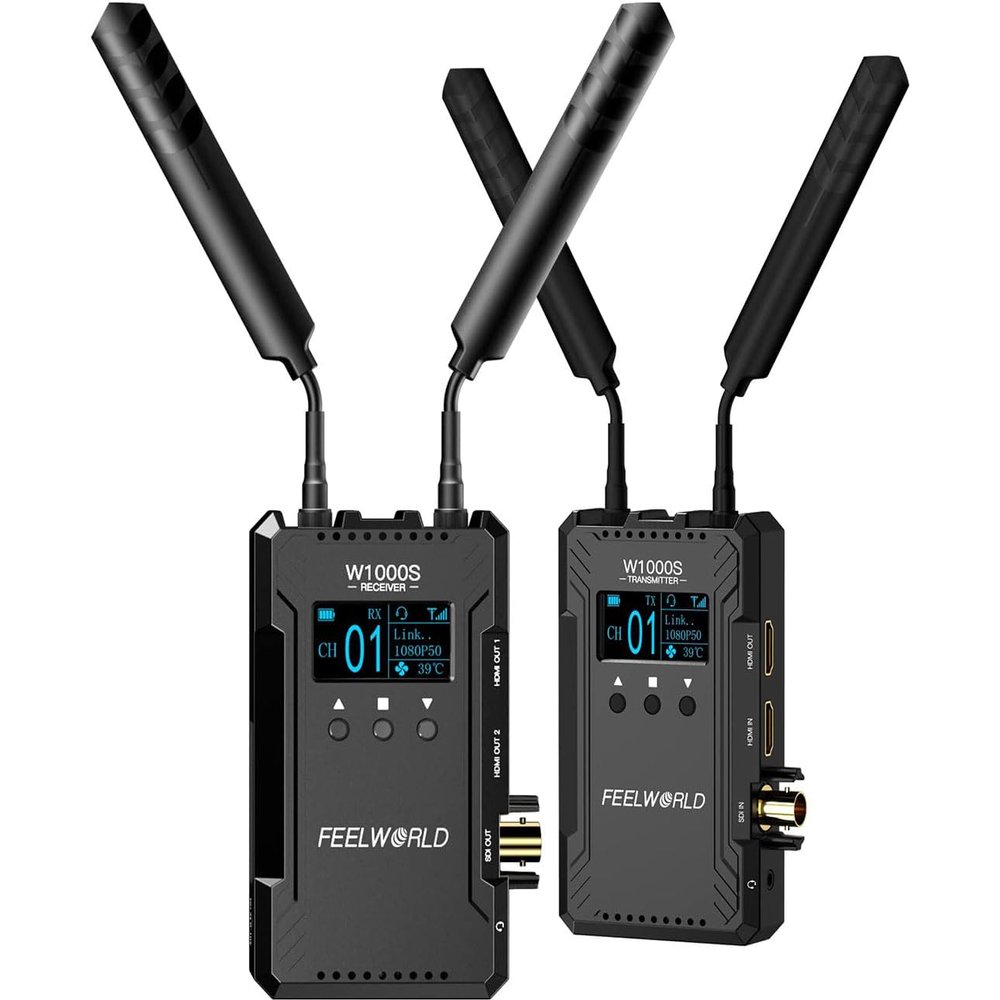

FEELWORLD W1000S Video Transmission System 1000FT Wireless SDI Dual HDMI Full Duplex Intercom Live Streaming

Description

• FEELWORLD W1000S TX/RX set is a real-time wireless video transmission system integrated with intercom and live streaming. With 8Mbps high data rate, SDI and dual HDMI ports and other features built for professional filmmaking.
• The one of highlights for W1000S is its full duplex intercom, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.
• With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on our personal computer without further encryption and decryption via a video capture device. Note: The Type-C to Ethernet adapter is optional
• The W1000S has more than 1000ft hassle-free and reliable range for wireless video and audio transmission; 0.08S achievable latency for real-time monitoring that enables.
• SDI input HDMI input and output on TX; SDI and dual HDMI output on RX. The transmitter can be flexible switched as a receiver, if you purchase two sets W1000S, you can setup 1 Transmitter, 3 receiver.
• The resolution supports 1080P60,1080i60 and under 1080P60 format, provide a higher quality image. More than one device can join the party. W1000S allows you have up to four receivers bound to one transmitter that efficient your crew monitor every shot as it happens.
• Here are 13 frequency channels. Automatically scan the current environment to find out available channels and avoid the channels with interference.

* Dual HDMI + SDI signal interfaces, meet your different needs
* More than 1000ft transmission range with 0.08S ultra-low latency
* Up to 1080P@60Hz, provide high quality image
* Wireless full-duplex talkback, real-time intercom between the director and the photographer
* With type-C to Ethernet adapter accessory, achieve live streaming
* The transmitter can be switched as a receiver at will
* One TX to multiple RX, monitoring for everyone on set
* Real-time APP monitoring for Android/iOS system
* 13 frequency channels, AUTO channel scan

Transmitter
Screen: OLED
Interface
1 * SDI input
1 * HDMI input
1* HDMI output
2 *Antenna port RP-SMA Male
DC power input
3.5mm headphone jack
Type-C

Power Supply Way/Voltage
F970 battery
Type-C: 5V/1.5A
DC adapter: 6-16V/1.5A

Power Consumption: <7.5W

HDMI Format
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
HDMI Type A

SDI Format
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
1*BNC

Frequency: 5.1-5.9GHz
Modulation Mode: OFDM
Transmission Power: Maximum 17dBm
Band Width: 20MHZ
Occupied Bandwidth: 20/40MHz
Latency: Min 0.08S
Intercom Frequency Response Range: 20Hz~20KHz
Operating Temperature: 0 40
Storage Temperature: -20 60
Unit Size(mm): 67L*24W*118H (excluding antenna
Unit Weight: 128g

Receiver
Screen: OLED
Interface
1 * SDI input
2* HDMI output
2 *Antenna port RP-SMA Male
DC power input
3.5mm headphone jack
Type-C

Power Supply Way/Voltage
F970 battery
Type-C: 5V/1.5A
DC adapter: 6-16V/1.5A
Power Consumption: <6.5W

HDMI Format
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
HDMI Type A

SDI Format
480P60, 576P60
720P60/59.94/50
1080P60/59.94/50/30/29.97/25/24/23.98
1080I60/59.94/50
1*BNC

Frequency: 5.1-5.9GHz
Modulation Mode: OFDM
Receiving Sensitivity: -87dBm
Band Width: 20MHZ
Occupied Bandwidth: 20/40MHz
Latency: Min 0.08S
Intercom Frequency Response Range: 20Hz~20KHz
Operating Temperature: 0 40
Storage Temperature: -20 60
Unit Size(mm): 67L*24W*118H (excluding antenna
Unit Weight: 128g
