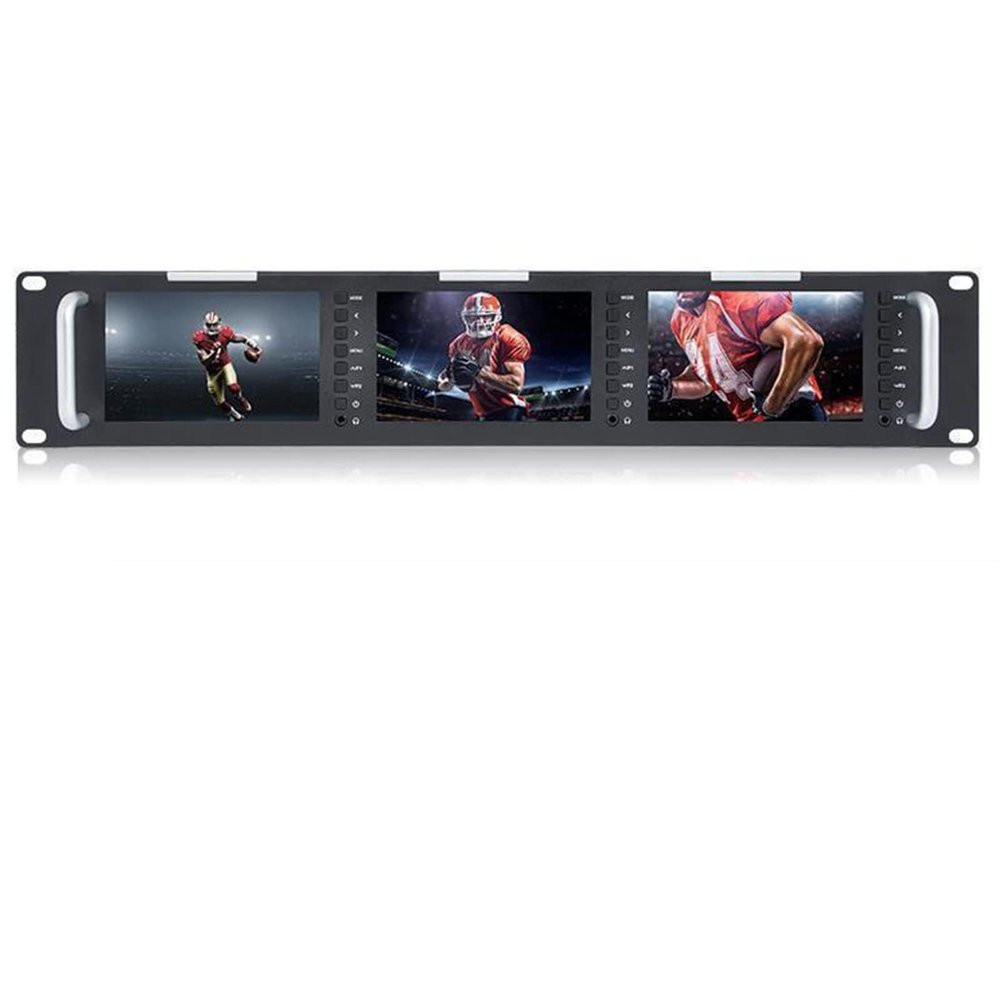

FEELWORLD T51 Triple 5 inch 2 RU Rackmount Monitor 800480 Broadcast LCD Monitor with 3G-SDI HDMI AV Input and Output

Description

• Triple 5" 2RU Rack MonitorsThree 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips.
• TFT Panel with LED backlightThe T51 is made of 3 5-inch TFT LCD panel, with 800480 resolution and LED backlight, 500cd/m brightness and 500:1 contrast. The viewing angle is Horizontal: 140/ Vertical: 120.
• Special FeaturesPeaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom, Custom Color Temperature.
• 3-color Tally LightThere are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.
• Multiple Inputs and OutputsEach LCD of T51 monitor supports:Input:3G-SDI X 1, HDMI X 1, CVBS X 1, Auido (L/R) X 2, Output: 3G-SDI X 1, HDMI X 1, CVBS X 1, Audio: Stereo Headphone.Standard Accessories1 3A Power Adapter, 1 Tally Kit, 1 Operation Manual.

Display Spec.
Model: T51
Screen Size: 5"3
Resolution: 800480 pixels
Dot pitch : 0.045(W)0.135(H) mm
Aspect Ratio: 16:9
Brightness: 500cd/m
Contrast Ratio: 500:1
Backlight: LED
Viewing Angle: 70/70(L/R) 50/70(U/D)

Input (Each LCD)
1 X BNC: 3G-SDI
1 X HDMI
1 X BNC: Video
2 X RCA: Audio(L/R)

Output (Each LCD)
1 X BNC: 3G-SDI
1 X HDMI
1 X BNC: Video
Audio (Each LCD)
Audio Out: Stereo Headphone 1

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
Input Voltage: DC924V
Power Consumption: 25W
Power Connector: DC/ 4-pin XLR
Working Temperature: -20C~55C
Storage Temperature: -30C~65C
Install Way: Rack Mount
Unit Size: 482.6Lx88Hx34D mm
Unit Weight: 1570g

Advanced Features
Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
Check Field (Red,Green,Blue,Mono)
Pixel to Pixel
Center Marker
Screen Marker (80%,85%,90%,93%,96%,2.35:1)
Image Flip (H, V, H/V)
Image Freeze
Zoom All
U/D & L/R Zoom
Custom Color Temperature
Built-in LED tally indicators (Red, Green, Yellow)
