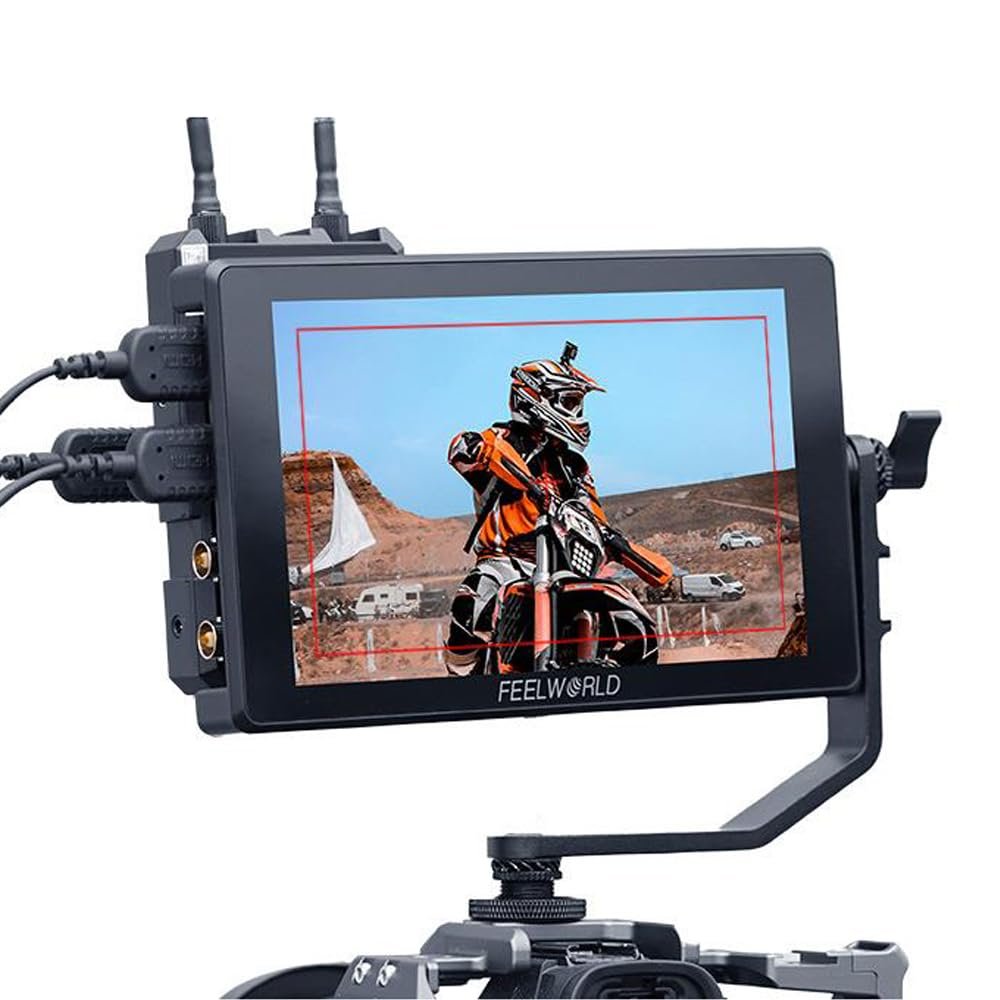

FEELWORLD SH7 7 inch HDMI SDI Cross Conversion 2200nit Ultra Brightness Camera Field DSLR Monitor Support SDI Timecode Touch Screen 3D LUT HDR Monitoring F970 External Install

Description

• HDMI and SDI Cross Conversion SH7 built-in signal cross conversion, allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can easy to convert signals and needn't the additional converters. Easy to Handle Various Application, Can be used for various broadcasting and live production.
• Viewable on the SunSH7 is 7 inch touchscreen 2200nit ultra bright HDR monitor, Ideal for outdoor shooting.The SH7 camera monitor has 1920x1200 Resolution, 16:10 Aspect Ratio, 1200:1 Contrast Ratio, 160 Viewing Angle.
• 3D LUT Loop-out and SDI Timecode SupportingSH7 allows you to load internally up to 50 custom LUTs, Both HDMI and SDI support LUT loop-out. Supports HDR (high dynamic range) monitoring.SH7 supports time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.
• Multiple Color Gamut and Pro auxiliary ToolsSH7 monitor supports REC709DCIP3BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.has professional auxiliary Tools Waveform, Vector, Histogram, Nine Grid, Embedded Audio Safe Frames, Center Marker, Ratio Marker, Scan Mode, Aspect Ratio, Image Flip, Image Freeze, P2P etc.
• HDMI and SDI In OutSDI Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98). HDMI Support Format: 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50)

* Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 50)
* SDI/HDMI support LUT out
* Waveform (RGB, YUV, Y)
* HDR
* Vector
* Histogram (RGB,Y )
* Embedded Audio
* Focus Assist(Yellow, Magenta, Cyan, Red, Green, Blue, White seven focus colors optional; 1~8 focus level adjustable)
* False Colors (Spectrum, ARRI)
* Zebra Exposure (0IRE100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
* Mirror (Auto, Flip H, FlipV )
* Image Freeze
* Center Marker
* Time code(for SDI signal)
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1, 4:5, 9:16: 1.85:1, 2.35:1)
* Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user.Under the user, you can customize the Video Width and Video Height100% ~ 300%)
* Cinema Guides(16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4, 1:1.9)
* Marker Color (Yellow, Magenta, Cyan, Red, Green, Blue, White)
* Crosshatch (3x3, 4x4, 5x3, 5x5, 6x4, 6x6)
* Zoom (1.0x5.0x)
* Pixel to Pixel
* Display Setup (can be adjust the image Brightness, Saturation, Hue, Sharpness 0~100)
* Color Space ( REC709, DCIP3, BT2020)
* Color Temp. ( 5600K, 6500K, 9300K, User.Under the user, the red, green, and blue values of the image can be adjusted 0~255)
* Built-in fan (Low, Middle, High)
*Battery Power Display
