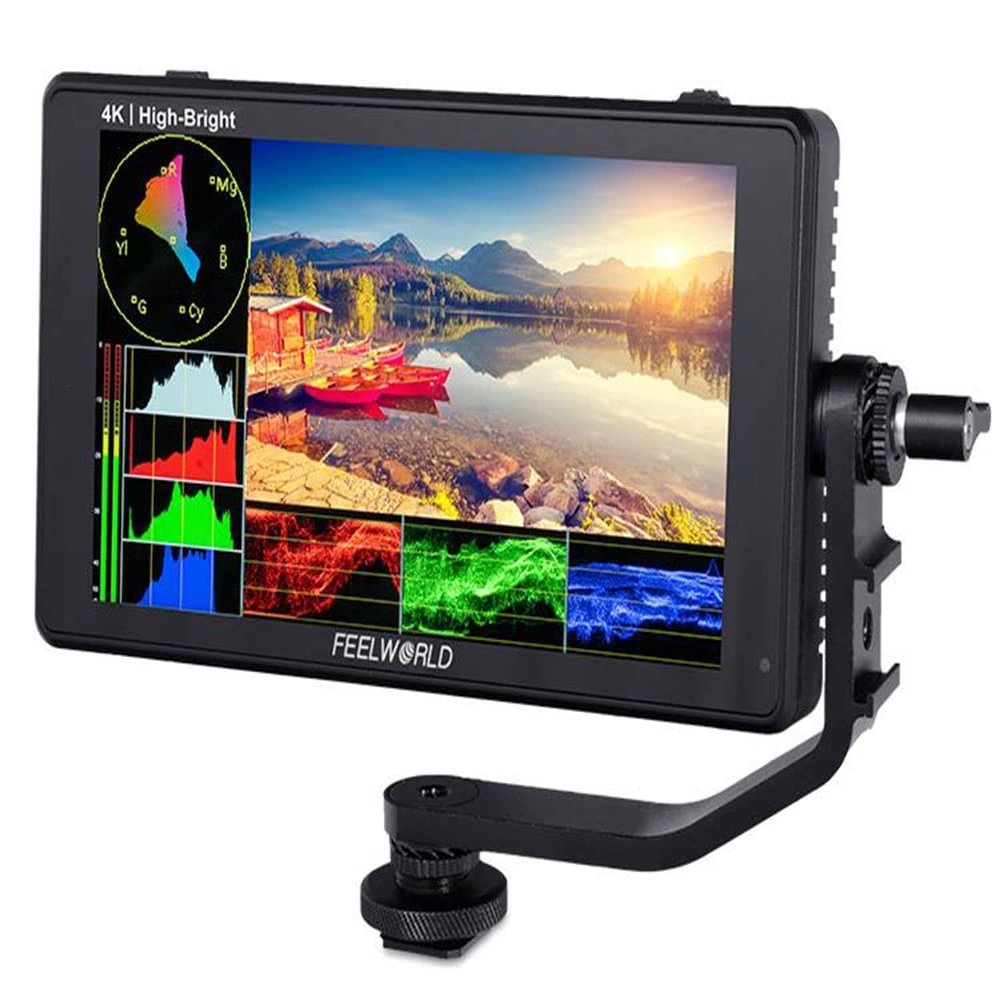

FEELWORLD LUT6E 6 Inch 1600nits 3D LUT Touch Screen DSLR Camera Field Monitor with Waveform VectorScope Histogram 4K HDMI Input Output 1920X1080 IPS Panel Attached Tilt Arm

Description

• Visible in SunlightFEELWORLD LUT6E is a 6 inch field monitor with 1600nits brightness, the screen visible even in sunlight. Equipped with HDMI input and output support up to 4K@30Hz, and a series professional composition tools, ideal choice for photographer and content creator.
• Touch Screen Custom LUTsYou can increase or decrease the brightness and volume simply by swiping up or down, slip from the bottom of the screen to enter the shortcut menu, double click shortcut customize feature. Support up to load 32 custom LUTs.
• Enjoy Sharper and Richer Colors ImageLUT6E has 1920 x 1080 maximum resolution, 1000:1 contrast ratio and sRGB / Rec.709 Color Gamut, enjoy sharper and richer colors image.New UI MenuLUT6E adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
• Accurate Expose and FocusThe professional tools are extremely helpful to your filming, like waveform, 3D LUT, RGB parade, vector scope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.
• Package Include1 FEELWORLD LUT6E monitor, 1 Mini/ Micro HDMI to HDMI Cable, 1 Tilt Arm, 1 ManualNote: battery not include

Model: LUT6E
Screen Size: 6" IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069 (L) x 0.069 (W) (mm)
Aspect Ratio: 16:9
Brightness: 1600cd/m
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80/80(L/R) 80/80(U/D)

Input
1 X HDMI

Output
1 X HDMI
1 X DC Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
Audio: 3.5mm Stereo Headphone

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (30/29.97/25/24/23.98)
40962160p (30/29.97/25/24/23.98)

General
Input Voltage: DC724V
Power Consumption: 10W Working Temperature: -20C~50C
Storage Temperature: -30C~60C
Install Way: 1/4"-20 Thread Socket (Right, Bottom)
Battery Plate: F970 Battery Plate
Unit Size: 162Lx93.2Hx29D(mm)
Unit Weight: 300g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (10%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.33X1.6X2.0X2.0X MAG)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (80%85%90%93%96%2.35:1)
* Ratio Marker (4:313:914:915:916:91.85:12.35:1)
* Marker Color (red, green, blue, white, black, gray)
* Color Temperature Adjustment (5600K,6500K,9300K
* Nine Grid
* Zoom Mode (2X,4X,9X,16X)
* Aspect Ratio
* Pixel to Pixel
