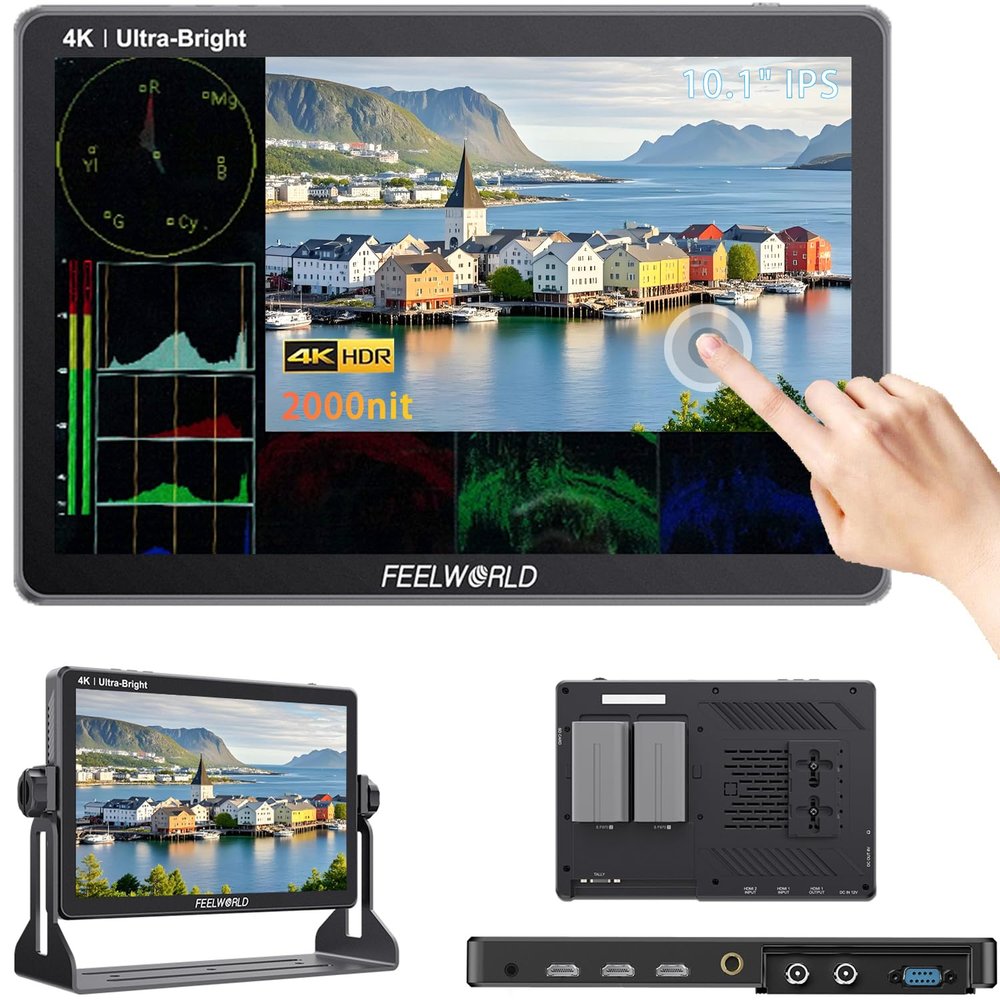

FEELWORLD LUT11S 10.1 Inch 2000nit Ultra Bright SDI Touch Screen DSLR Camera Field Monitor with 3D Lut Waveform Vectorscope Automatic Light Sensor HD 1920x1200 3G SDI 4K HDMI Input Output

Description

• Daylight ViewableUltra bright 2000nit, this makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight! The light sensor ensures that the screen is readable in different environments and always protects your eye.
• Innovative External Install and Power DesignF970 external install and power kit design is added to the back of the monitor, reduces the need for photographers to connect to external wireless transmission, LED light, video converter and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
• Touchscreen HDR and 3D LUTYou can use simple tap and swipe gestures for the important monitoring functions. Display an HDR signal and support load up to 50 custom LUTs, to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. The LUT11S supports 3G-SDI signal LUT loop-out function.
• Trust What You SeeThe professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus.
• SDI+Dual HDMI and Dual Battery PlatesSDI perfect for the movie cameras, dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz. LUT11S have dual battery plates, can install two standard NP-F batteries, long-lasting power for your screen. The monitor is equipped with 3 standard 1/4mounting threads (bottom, right, left side).

Model: LUT11S
Screen Size: 10.1" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.113(W) x 0.113(H) (mm)
Aspect Ratio: 16: 10
Brightness: 2000cd/m
Contrast Ratio: 800: 1
Viewing Angle: 85/85(L/R) 85/85(U/D)

Input
2XHDMI
1X3G-SDI
1XTally: 9 Pin Connect

Output
1XHDMI
1X3G-SDI
1XDC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
Audio: 3.5mm Stereo Headphone

SDI Input Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
2048x1080i (60/59.94/50)
2048x1080p (60/59.94/50/30/29.97/25/24/23.98)

SDI Output Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (60/50/30/29.97/25/24/23.98)
40962160p (60/50/30/29.97/25/24/23.98)

General
Input Voltage: DC724V
Power Consumption: 28W
Install Way: 1/4"-20 Thread Socket (Left, Right, Bottom)
Unit Weight: 810g

Advanced Features
Support 3D LUT Log to Rec.709, user 3D LUT Upload
Support Touch Menu
Parade (RGB, YUV, Y)
All Waves
Vector
RGB Histogram
Brightness Histogram
Embedded Audio
Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
False Colors
Zebra Exposure (1%~100% adjustable)
Check Field (Red, Green, Blue, Gray)
Scan Mode (Under Scan, Over Scan)
Anamorphic Mode
Image Flip (H, V, H/V)
Image Freeze
Center Marker
Safety Marker
Ratio Marker
Marker Color
Color Temperature Adjustment
Nine Grid
Zoom (100%~500%)
Aspect Ratio
Pixel to Pixel
