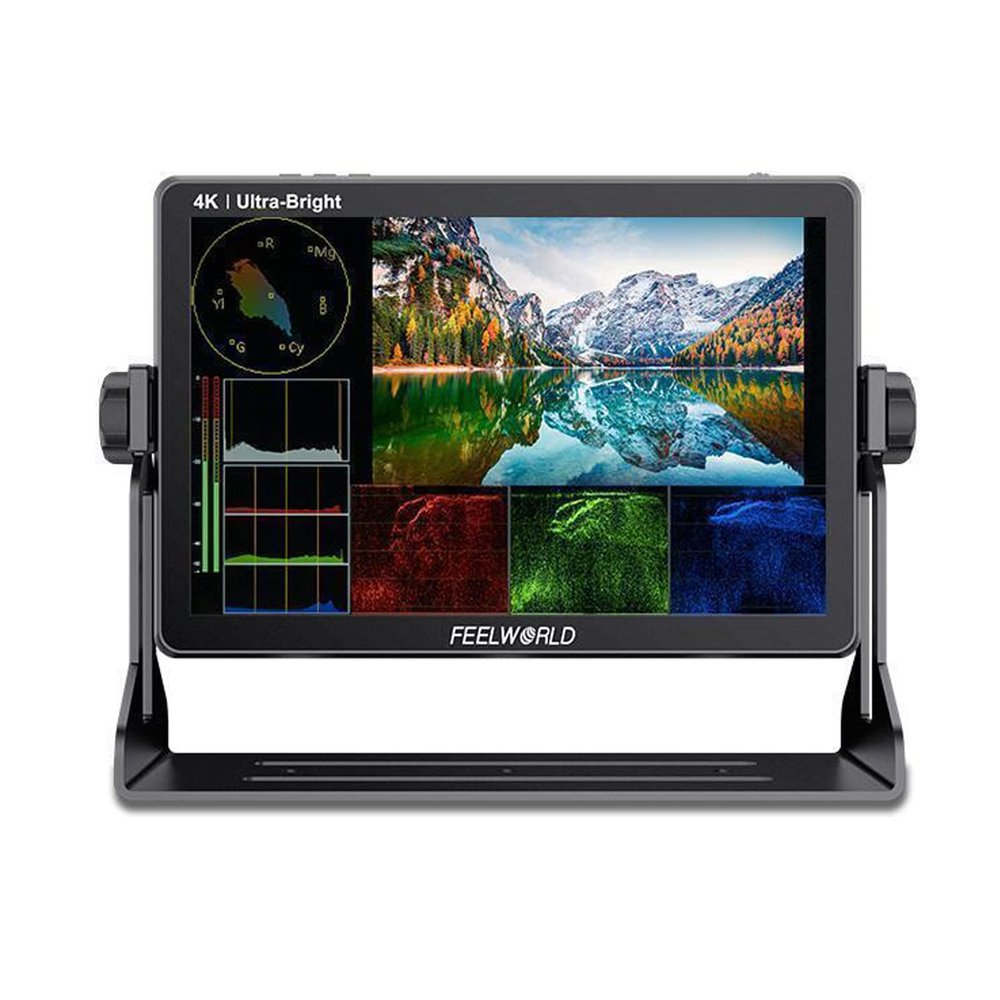

FEELWORLD LUT11 10.1 Inch 2000nit Ultra Bright Touch Screen DSLR Camera Field Monitor with 3D Lut Waveform Vectorscope Automatic Light Sensor HD 1920x1200 4K HDMI Input Output F970 External Power

Description

• Daylight ViewableUltra bright 2000nit, this makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight! The light sensor ensures that the screen is readable in different environments and always protects your eye.
• Innovative External Install and Power DesignF970 external install and power kit design is added to the back of the monitor, reduces the need for photographers to connect to external wireless transmission, LED light, video converter and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
• Touchscreen HDR and 3D LUTYou can use simple tap and swipe gestures for the important monitoring functions. Display an HDR signal and support load up to 50 custom LUTs, to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing.
• Trust What You SeeThe professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus.
• Dual HDMI and Dual Battery PlatesDual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz. LUT11 have dual battery plates, can install two standard NP-F batteries, long-lasting power for your screen. The monitor is equipped with 3 standard 1/4mounting threads (bottom, right, left side).

Model: LUT11
Screen Size: 10.1" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.113(W) x 0.113(H) (mm)
Aspect Ratio: 16: 10
Brightness: 2000cd/m
Contrast Ratio: 800: 1
Backlight: LED
Viewing Angle: 85/85(L/R) 85/85(U/D)

Input
2 X HDMI
1 X Tally: 9 Pin Connect

Output
1 X HDMI
1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
Audio: 3.5mm Stereo Headphone

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (60/50/30/29.97/25/24/23.98)
40962160p (60/50/30/29.97/25/24/23.98)

General
Input Voltage: DC724V
Power Consumption: 28W

Install Way: 1/4"-20 Thread Socket ( Left, Right, Bottom)
Unit Size: 242Lx156Hx23D(mm)
Unit Weight: 810g

Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (1%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16: 9, 16: 10, 4: 3, 5: 4, 1: 1, 1.91: 1.1, 4: 5, 9: 16, 1.85: 1, 2.35: 1)
* Ratio Marker (16: 9, 16: 10, 4: 3, 1.85: 1, 2.35: 1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment (5600K, 6500K, 9300K, user)
* Nine Grid
* Zoom (100%~500%)
* Aspect Ratio
* Pixel to Pixel
