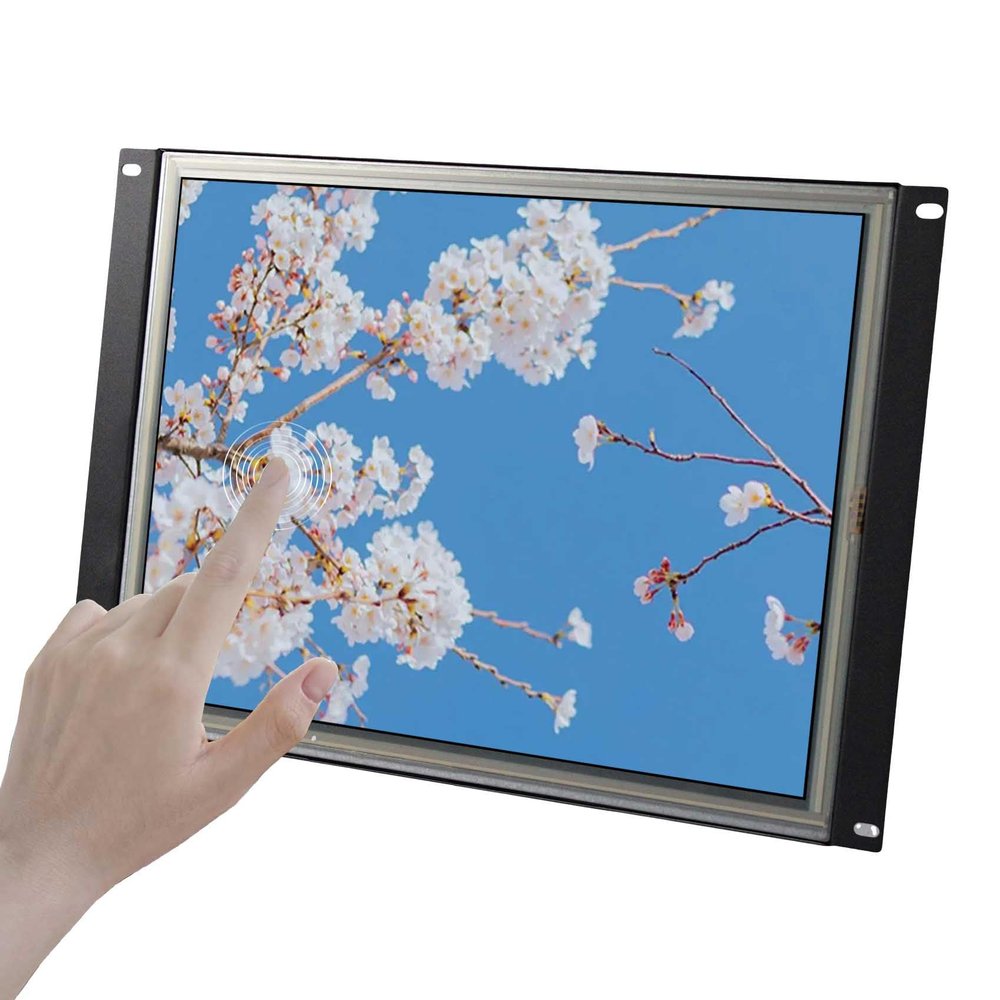

FanyiTek 15 inch 1024x768 1000nit Industrial Touch Screen with USB Controller Board 20pins

Description

• 4:3 aspect ratio screen1024x768 resolution,1000nit high brightness ,metal shell is sturdy,just required power on ,enter into signal ,it can work well with you.
• ParametersOutline Size 326.5 253.510(HVD)mm,Display Area 304.1 228.1 (HV)mm,Contrast Ratio 700:1,Signal Interface LVDS (1 ch, 6/8-bit),20 pins Connector,Backlight WLED.
• Viarious Video Input PortVideo Input: USB,can connecting PC computer ,laptop ,Rpi or other ports with these ports,Video Output: Speaker ,Earphone.
• Resistive Touch PanelNo need driver installed ,directly connecting USB touch cable well ,then power on, the touch function can be worked.
• UsageWidely used to working on industrial automation, monitoring system,Commercial Screen Display,etc..

USB LCD Controller Board:
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: USB

USB: Support Video Playback, Picture Playback, Text Playback,Upgrade Firmware
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90.7mm x 57.3mm x 14mm
15.0" G150XGE-1000 1024X768 Resistive Touch LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)768
Outline Size 326.5x 253.5 x 12(W x H x D)mm
Display Area 304.128 x 228.096(W x H)mm
Brightness 1000 cd/m (Typ.)
Contrast Ratio 700:1 (Typ.)
Viewing Angle 80/80/70/70 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1 15" 1024x768 1000nit Brightness Resistive Touch LCD Screen With USB LCD Controller Board
