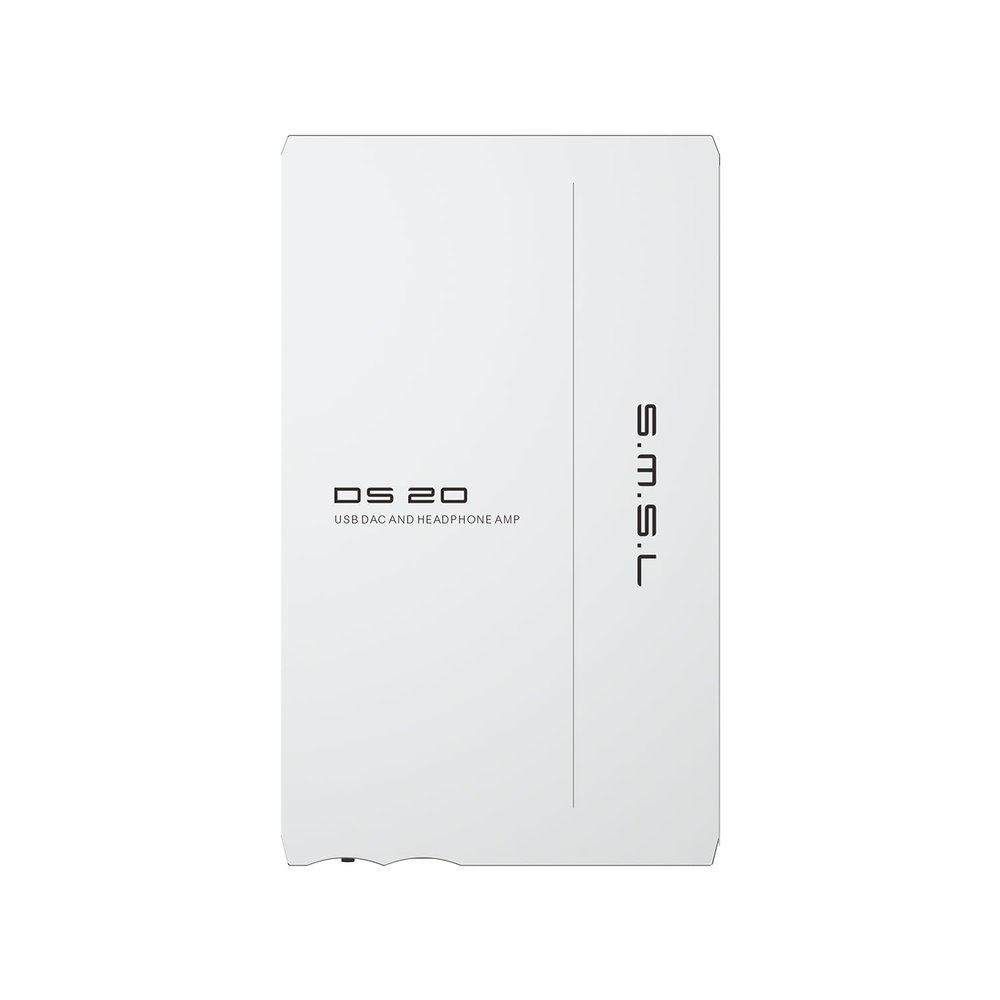

Fanmusic SMSL DS20 Protable USB DAC& Headphone Amplifier Quad CS43131 XU-316

Description

• Powered by 4xCirrus Logic CS43131 Latest Generation High-Performance DAC Chips. Circuit Design for Fully Balanced Ear Amplifier with PLFC. 3rd Gen XMOS XU-316, PCM Support: Up to 32-bit/768kHz,DSD Support: DSD256
• Dedicated Audio Clock Circuit. Significantly reduces clock jitter, minimizes tonal distortion, enhances soundstage positioning and micro-detail resolution.
• Magnetic Empowerment, Sturdy as a Rock. magnetic decoder crafts mimimallst HI-FI excellence.
• Dual Mode Selection USB1.1 and USB2.0. USB1.1 mode enables connectivity with gaming consoles.
• HI-FI Grade Internal Components. Precision-Tuned to Satisfy AudiophilesObsessive Pursuit of True-to-Original Sound.

USB transmission: Asynchronous
USB compatibility:
Windows7/8/8.1/10/11
Androidi0sMac OsxLinux
Bit depth: 1bit, 16~32bit
Sampling rate:
PCM 44.1~768kHz
DSD 2.8224~11.2896MHz
Battery capacity: 6000mAh(22.2wh)
Size: 71x17x118.5mm (WxHxD)
Weight: 275g
Input: USB
Output: 3.5mm HP; 4.4mm HP
Output level:
3.5mm HP Output 3 Vrms
4.4mm HP Output 6 Vrms
Output Impedance: HP Output approach 0
Output Power
16 500mW x2
32 500mW x2
64 350mW x2
150 240mW x2
300 120mW x2
600 60mW x2
THD+N (UN Weighted): 300 0.0002%
Dynamic range:
3.5mm HP Output 126dB
4.4mm HP Output 126dB
SNR:
3.5mm HP Output 126dB
4.4mm HP Output 126dB

WHAT IN BOX?
DS20 * 1
User manual * 1
Brand card * 1
