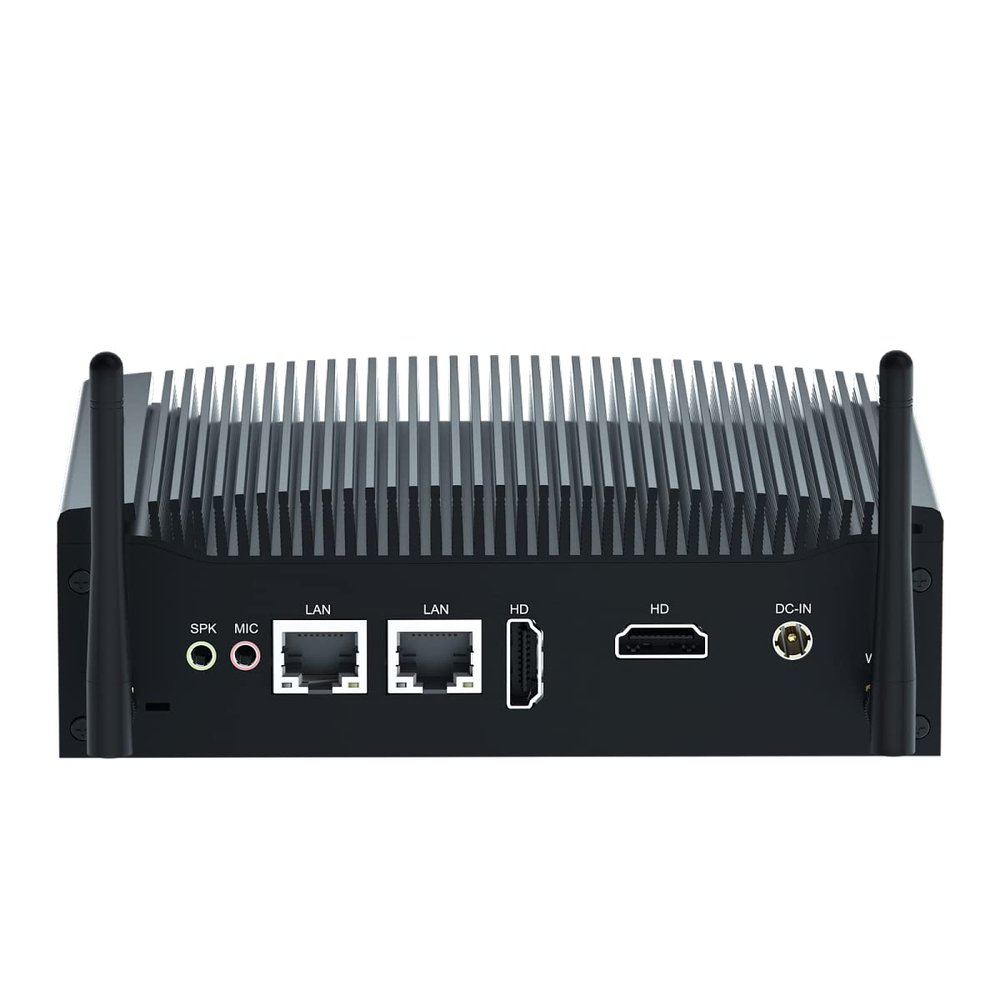

Fanless ITX Mini PC, Industrial PC Windows 11 pro, Core i5 10210U, 32GB DDR4 RAM 512GB SSD, Dual HD, 2-display, RS232 COM, Dual RJ45 LAN, Dual Band Wifi, BT4.2, SIM Slot, 4G Module, FP1 9Pin, WOL

Description

• Core i5 10210U and Windows 11 pro Fanless Industrial PC with 10th Core i5 10210U (4-core 8-thread, 1.60 GHz up to frequency 4.20 GHz, UHD Graphics), pre-installed Windows 11 pro. Powerful performance processor makes Venoen PC a ultra fast & smooth & power-saving mini PC which is effortless satisfy your daily entertainment, Games, office, education industry etc.
• Memory and Storage Capacity Expansion Venoen Industrial PC is equipped with 2 x DDR4 RAM slot, MAX 64GB; And 1 * M.2 2280 SSD + 1 * SATA3.0 for 2.5inch HDD/SSD dual hard drive design greatly enhances storage functions, simplifies data management, you can expand the storage as your demand, Large storage drives Small Case PC runs smoothly without waiting.
• Multifunction & Powerful Fanless PC i5 Windows 11 Pro with Dual LAN, Dual HD Output, Dual RS232 COM, 4x USB 3.0, 4x USB 2.0, 1x Kinsin-ton Hole, SPK/MIC, 12V DC IN, Aluminum Alloy Housing Heat Dissipation, No Fan, Low Noise, No Dust. Suitable for various harsh environments, such as the IOT, Medical Devices, Billboard, Kiosk, etc. The Industrial Mini PC supports commonly used wake-up LAN and Atuo Power On, making it easy to install.
• Mini PCI E and SIM slot Micro PC support Mini PCI-E Slot onboard, support Wifi / 3G / 4G Module(3 choose 1); PC adopts Dual Band wifi and BT model (2.4G/5G wireless connection), and 2x RJ45 Gigabit network port which can transmit at highly speed regardless of wireless or wired, maintain stable and reliable WiFi speed, refuse to freeze, and the remote collaboration is smoother. ITX PC also supports Auto power on, RAID, Wake on LAN and other functions.
• Fanless Cooling Design & Energy Saving Micro computer featured by noise-free, fanless design and brushed aluminum shell has excellent durability and heat dissipation, say goodbye to the worry of heat dissipation, compared with the consumption of 150W traditional computers, it helps to save more than 80% of energy for its DC 12V 5A power supply and 15W-28W power consumption.

H7 Fanless PC Small Desktop PC Specifications:

CPU:
Core i5 8260U, 4 Core 8 Thread, 1.60 GHz to 3.90 GHz, UHD Graphics 620
Core i5 10210U, 4 Core 8 Thread, 1.60 GHz to 4.20 GHz, UHD Graphics
Core i7 10610U, 4 Core 8 Thread, 1.80 GHz to 4.90 GHz, UHD Graphics
Core i3 1215U, 6 Core 8 Thread, up to 4.40 GHz, UHD Graphics
Core i5 1235U, 10 Core 12 Thread, up to 4.40 GHz, Iris Xe Graphics
Memory: 8th/10th : 2* DDR4 slots on board; 12th : 1* DDR5 slot on board
Storage: Support 1* M.2 SSD + 1* 2.5 SATA hard drive together
Ethernet: 2* RJ45 Gigabit Ethernet NIC

In-out interfaces:

Switch: 1 x On/Off switch
Display: 2 x HD-MI
USB: 4*USB 3.0 port; 4*USB 2.0 Port
Serial port: 2* RS232 COM port
SIM: 1 x SIM card slot on board (standard without SIM card)
Wifi: Mini PCI E Slot, Support Wifi Model / 3G / 4G Module (3 choosse 1)
Feature : FP1 9Pin onboard, support connect extranal switch
Other:
Dimensions: 170*126*58 mm
Weight: Net 1.8 kg, gross 2.5 kg
Temperature: -20 to 85
Humidity: 0%~ 95% relative humidity
Material: Brushed aluminum alloy housing
Language: Multilingual
Function: Supports Hardware Auto Power On, RAID, Network Wake-up, Diskless Boot, Temperature Management
Virtualization Application: This fanless mini PC is applicable to industrial computer, soft routing, virtualization, thin client, edge computing, visual inspection, industrial control, cloud server etc.

Package contents:
1 Mini PC; 1 power supply; 2 Antennas, SATA Cable, 1 HD Cable
