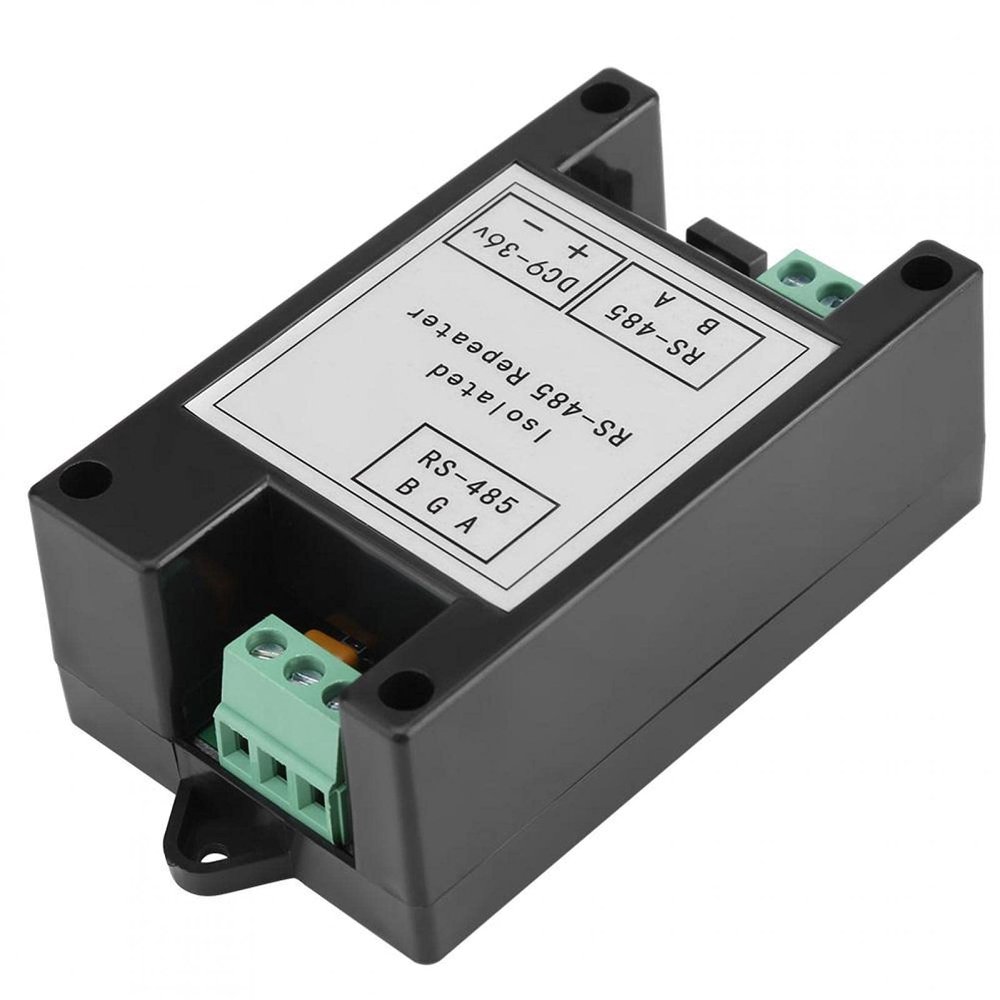

EVTSCAN DC 9V-36V Signal Repeater, 1pc Industrial Grade RS485 Signal Repeater Amplifier Isolated Distance Extender

Description

• Industrial grade design, communication is completely isolated, stable and reliable performance, transmission rate is up to 500Kbps
• Built-in high-quality DC/DC isolated power supply module realizes electrical isolation between ports
• Support multi-machine communication, can connect up to 128 nodes, and transmission distance is up to 1200 meters
• Data flow automatic control technology, automatically distinguish and control data transmission direction
• Multiple protective measures: positive and negative 15KV ESD protection; 600W dual channel TVS protection; 2.5KV communication isolation

Description:
This isolated RS485E repeater is a kind of high-performance industrial grade RS485 signal amplifier and extender. It can automatically sense data flow direction and communication baud rate, not requiring any control or handshaking signals, and ensuretransparent data transmission. Equipment power supply and communication signal are completely isolated, withsurge protection and static protection. It features long distance transmission, high speed, stable and reliable performance. Widely used for attendance machine, IC card charging system, automation control, access control system, parking lot, dining service system,highway toll system.

Specifications:

Recommended Value (Typical)
Limit Value
Working Voltage
9V~36V DC
9V~36V DC
Rated Power
0.36W (9V/35mA; 12V/27mA; 24V/15mA)
0.5W
Working Temperature
-30~70
-40~80
Responsible for Capacity
1~128 node
128 node
Communication Distance
0~1200 meters
1200 meters
Communication Rate
300~500K bps
500Kbps
Note:
It is suggested to use RS485E equipment under recommended value for long-term stable operation. Equipment will not damage when working under limit value, but may result in performance degradation. Do not exceed the limit value, otherwise it may damage the equipment.
