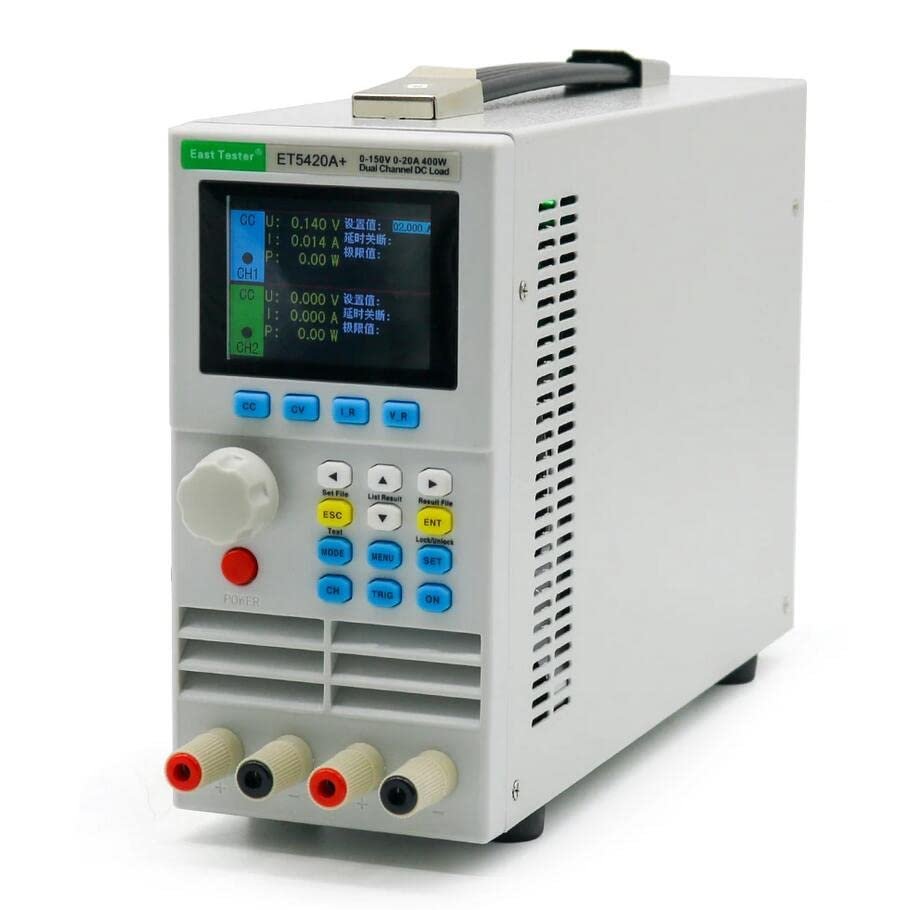

ET5420A+ Dual Channel DC Load Meter Programmable 200W*2 DC Electronic Load Battery Load Tester DC Tester 0-150V 0-40A (ET5420A+, USB)

Description

• Adopt 2.8-inch TFT liquid crystal display screen, display rich content; the operation process is simple and convenient, with an intuitive interface display system;
• With key lock function to prevent misuse;
• With over-voltage, over-current, over-power and over-temperature protection functions, over-voltage and over-current parameters can be flexibly set to achieve effective protection for the load;
• With intelligent fan speed control function, effectively reducing fan noise during work;
• With input polarity reverse prompt;

ET5420A+ Dual Channel DC Load Meter Programmable 200W*2 DC Electronic Load Battery Load Tester DC Tester 0-150V 0-40A

Specifications:
1. Power supply voltage: 100Vac10%~240Vac10%, 50/60Hz (global application)
2. Display: 2.8-inch TFT LCD screen, resolution 320240
3. Operating temperature: 0C to 40C
4. Storage temperature: -10C to 70C
5. Relative humidity: <80%
6. Interface: standard USB, optional 485 or 232
7. Size: 90190300mm

Main function introduction:
1. Provide CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes;
2. Provide professional battery testing;
3. Provide professional LED testing;
4. Dynamic test mode, which can test the dynamic output performance of the power supply;
5. Scanning test mode, which can test the continuity of power output within a certain range;
6. List mode, which can simulate various loading state changes;
7. Short circuit test for simulating load short circuit;
8. Support external trigger input;
9. Built-in buzzer alarm;
10. Power off to keep data storage function;

Package included:
1 xDual Channel DC Load Meter
1 x Power Line
2 x Fuse
1 x English Manual
