ERoomQ Microscope Accessories Kit 38MP HDMI USB Digital Video Microscope Camera Continus Zoom 180X C-Mount Rotatable Stand Soldering Mobile Phone Repair Tools Microsco(14MP HDMI)

Description

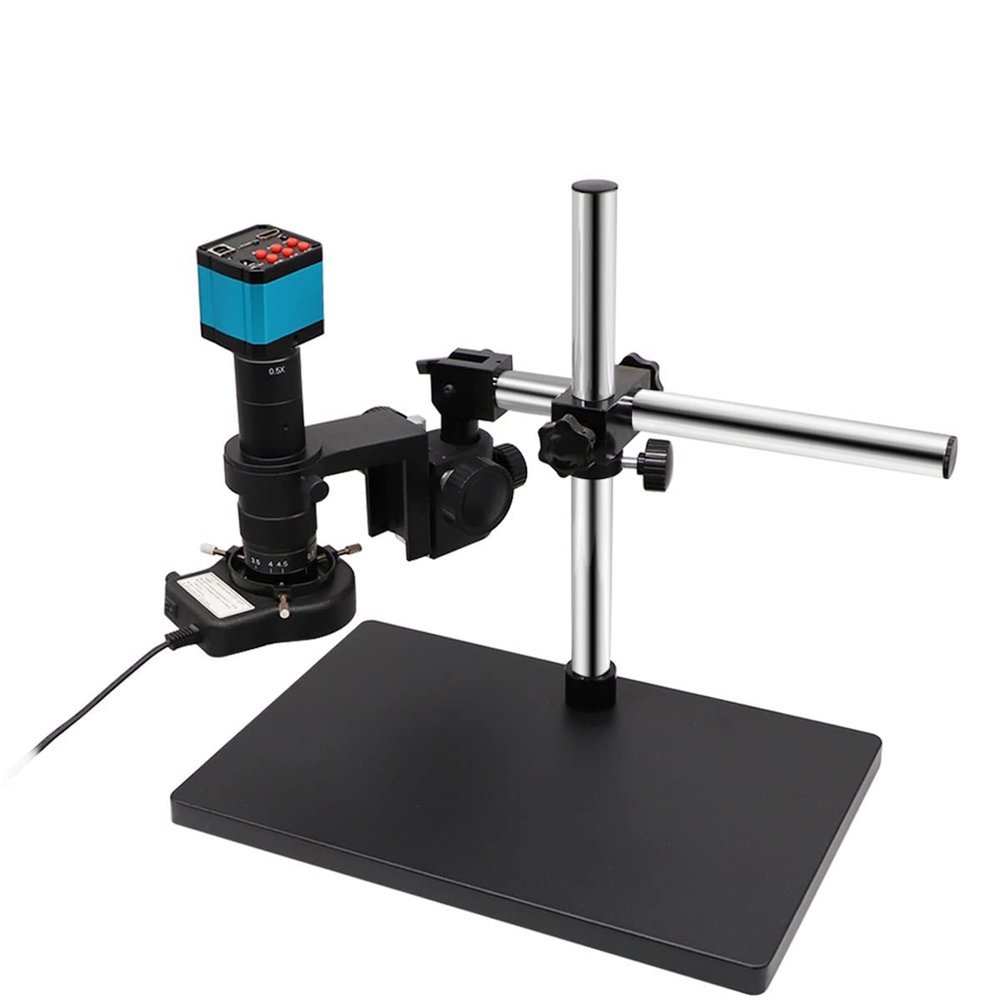

• Digital Industrial Microscope Camera + 180X C mount lens (0.5X) + 56 LED ring Light + Stand holder (360 degrees of free adjustment and rotation)
• Base holder: Upper and lower, left and right side can be adjusted and moved, 360 degrees of free adjustment and rotation. Universal direction - any direction can be adjusted
• High Quality, High Resolution, Clear Images. 38.0MP/16MP/14MP/2MP 1/2.3 / 1/3 Inch big size CMOS Image Sensor. it is used extensively electronic component manufacturing. Specially suited for LED, electronic PCB / Phone Logic Board inspection, pressing plating and electronic component inspection.
• Professional and practical design with beautiful appearance, easy to carry and use.
• Usually used in laboratories, schools, teachers, sample observation, eyepiece protection, etc.

Feature:
High Quality, High Resolution, Clear Images
38.0MP/16MP/14MP/2MP 1/2.3 / 1/3 Inch big size CMOS Image Sensor
TF Card Video Recorder
Photo Model / Video Model
Industry CMOS Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It builds in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative
Supply USB2.0, HDMI HD video,Two output
Specification:
Basic function:Brightness, contrast, saturation, white balance,
black and white switching, date adjustment
Image adjustment:Exposure, Flicker restrain, Acutance,
Gamma, Cb/ Crgain adjustment
Camera function:Digital zoom, Horizontal/
vertical mirror, image freeze
Storage:Image capture,video, image preview, TF card formatting
color, line, displacement, and hidden
Crosshair:Can adjust color, line size, hide or display
White balance: Auto/manual
TF card interface: Max 64G-128G
HDMI interface: Standard HDMI output / VGA Output
HDMI Image resolution: 8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF Card),
USB Image resolution: 1920 *1080 (for PC USB)
Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*720@ 30FPS 640*480 @ 30FPS
320*240 @ 30FPS for USB / VGA
Video format: MP4
Image format:JPG
Color: Color/black and white
Freeze: Support/NO
Exposure:Auto/manual
Camera Interface:C-MOUNT
Remote operation:Yes/NO
C-MOUNT Lens (0.5X Module):
Working distance: 50~155mm
zoom c-mount Lens
Magnification Power by 8X~180X
Size: 115mm(L) * 40mm(DIA)

56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
56Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
