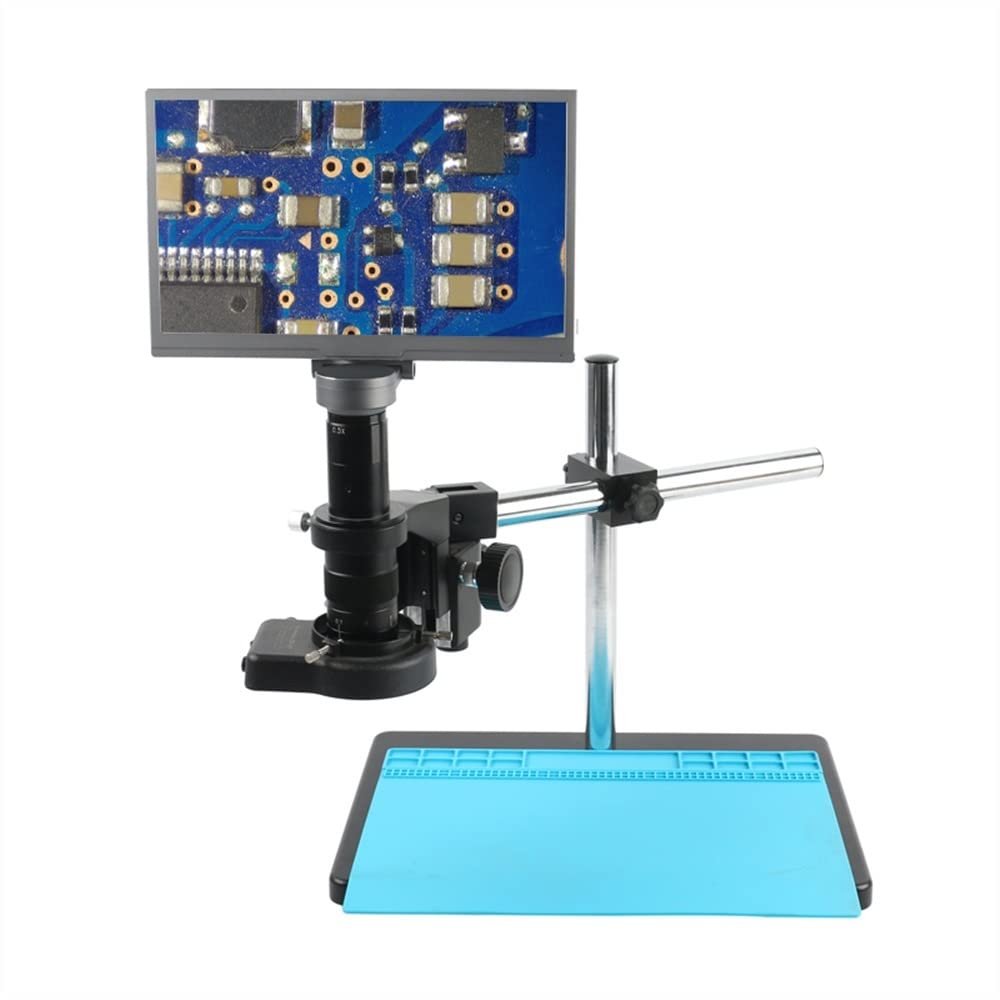

ERoomQ 1080P 11.6 inch LCD Monitor HDMI Industrial Digital Video Recorder Measurement Storage Microscope Camera System 180X/ 300X Lens

Description

• Integrated display Microscope camera. Sensor siz: 1/2". Resolution:1920*1080P@ 60FPS.
• 120x 180x 300x Feature: Working distance: 95mm. zoom c-mount Lens. 0.5X/1X/0.35X C-mount adapter. zoom ratios: 6.5:1. Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display).
• 200X 500X Feature: 200X Working distance:100mm -175mm. 500X Working distance:90mm -120mm. Connector:CS C mount. Zoom:continouasly variable zoom. Objective Magnification:0.7X - 5X(about 28 - 200X on the display)/(about 70 - 500X on the display).

Function:
Series :Integrated display Microscope camera
Sensor siz: 1/2"
Material: Aluminum alloy
Effective pixel:Full H_D
Resolution:1920*1080P@ 60FPS
Output:HDMI / USB card
Pixel size:3.75*3.75m
Power:DC-12V/1A
Size:279.00*54.00*190.00mm
Weight 0.7kg
Features:
Basic function:Brightness, Contrast,Saturation, White balance,
Black-and-white switch, HDR wide dynamic
Storage function:Instant photo, video, picture preview,
dynamic contrast, SD card formatting
Camera function:Digital zoom(Max.10x), Horizontal/
vertical mirror, image freeze
Crosshair:Can adjust color, line size, hide or display
Reticle:4 sets of reticle,can adjust color, size, shift and hide
Grid line:8 sets of grid lines,each set can
be corresponding to one product
Other functions:Integrated 90 degree adjustable bracket
Language: Chinese / English
120x 180x 300x Feature:
Working distance: 95mm
zoom c-mount Lens
0.5X/1X/0.35X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)
Size: 168mm(L) * 50mm(DIA)
200X 500X Feature:
200X Working distance:100mm -175mm
500X Working distance:90mm -120mm
Connector:CS C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 28 - 200X on the display)/(about 70 - 500X on the display)
Eyepiece lens adapter:0.4X/1X
Fixed position:50mm
Locking:0.7X - 5X Locking
Thread:42mm
Auxiliary Objective Lens:0.35X, 0.5X, 2X,1X (optional)
Size:132mm(L) * 55mm(DIA) / 175mm(L) * 55mm(DIA)
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Suit for the dia of the lens: 30mm-160mm
