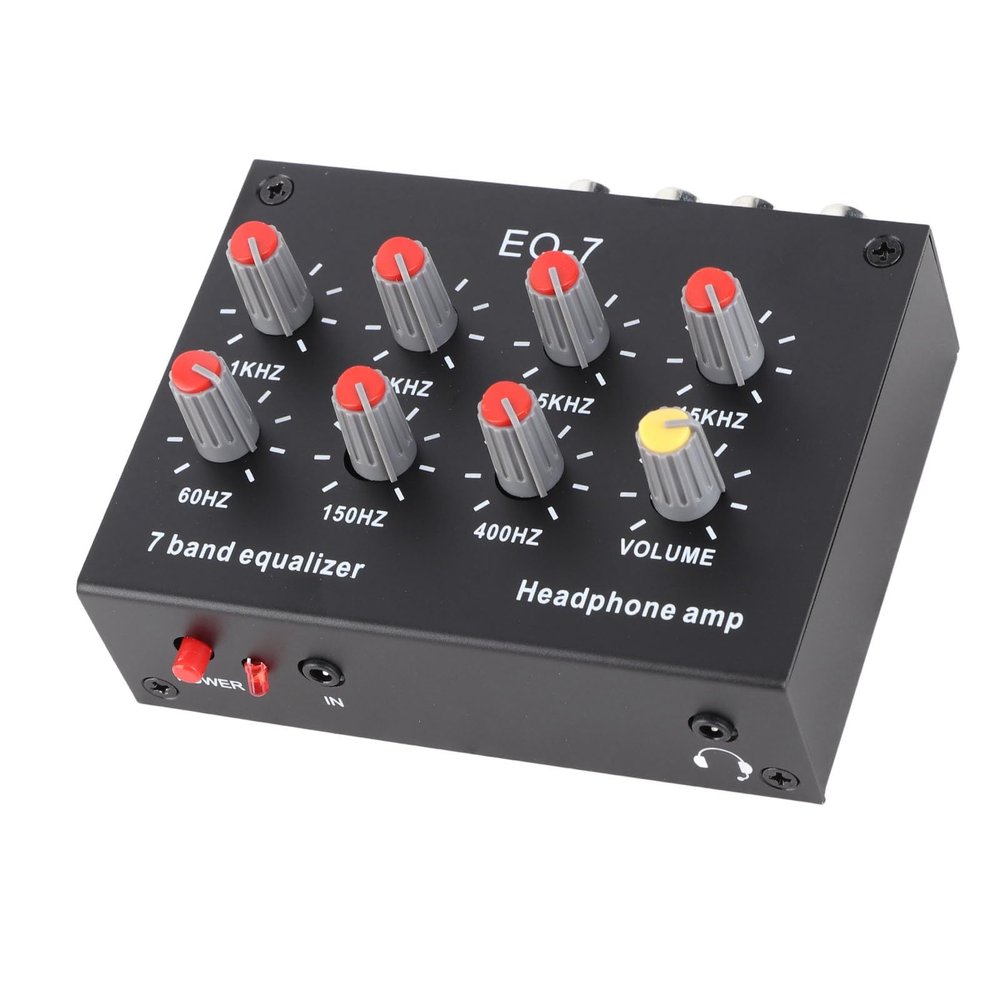

Equalizer Home Audio, Graphic Equalizer 7 Band Sound Equalizer Audio Equalizer With 12dB High Bass Adjustment for Recording Streaming Podcasting

Description

• Advanced Control Range- Equipped with a 7 band equalization circuit control range of 12dB and equalization band at multiple frequencies, our equalizer home audio provides incredibly precise audio adjustments. Composed by ti or ST original TL074 for superior audio experience.
• Headphone Compatibility- The versatile graphic equalizer comes with an added of an ear amplifier that is composed of NE5532. This type 47 headphone driver circuit easily drives all types of headphones with an adjustable high and low.
• Versatile Interface- Featuring a 3.5mm input interface that supports a 4 pole plug, our audio equalizer is designed for versatile usage. The output connects to headphones with a microphone, enabling normal voice call functions on cell phones.
• Resilient Construction- Made of a sturdy aluminum alloy, our digital equalizer is high-strength, and stable. It operates with a DC5V12V power supply and provides dual-channel sound.
• Essential Parameters- With a preamplification gain, this home audio equalizer assures 5 times amplification. The sound equalizer has an input impedance of 20K and output impedance of 600 ohms, courtesy of the classic 4580 op-amp.

Description

1. Control Range: 7 band equalization circuit control range 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
2. Basic Parameters: 7 band sound equalizer preamplification gain, 4580 classic op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.
3. Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.
4. 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group interface is available.
5. Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, , stable performance, DC5V12V power supply, dual channel sound.

Specification:
Item Type: 7 Band Sound Equalizer
Material: Aluminum Alloy
Power Supply: DC5V-12V
Interface Specification: 5.5x2.1
Input Impedance: 20K
Output Impedance: 600 Ohms
Equalization Circuit Control Range: 12dB
Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ

packing list:
1 x 7 Band Sound Equalizer
1 x Supply Cable
