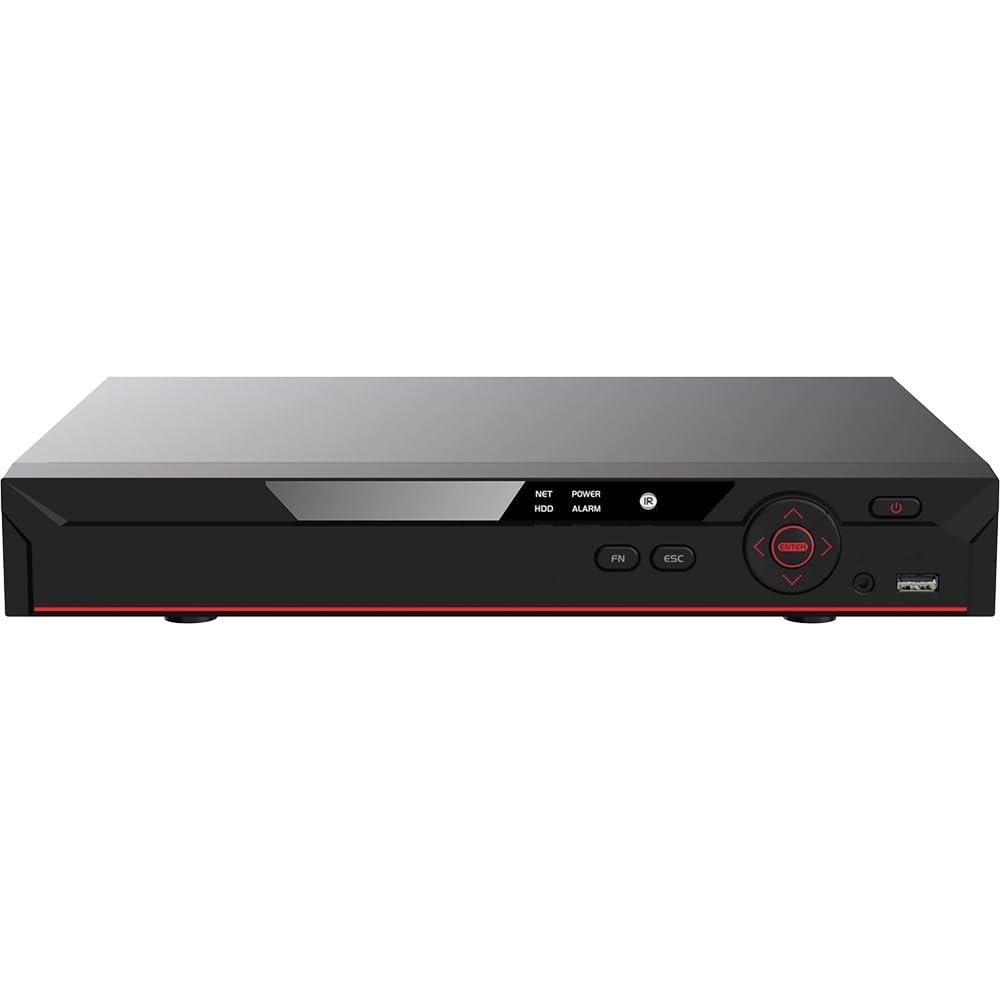

ENS XVR501H-08-I3-V2 8-Channel Penta-Brid 5MP Value/1080P Mini 1U 1HDD Digital Video Recorder, 64Mbps Incoming Bandwidth, Embedded Linux, IoT & POS Functionalities, HDMI/VGA, Audio, 1 SATA

Description

• Max Recording Resolution: 5MP Lite
• Channels: 8CH
• LAN Ports: 1
• SATA: 1X SATA PORT
• Video Outputs: HDMI / VGA
• NDAA Compliant: No
• Hardware Features: Alarm in, Alarm out
• HDD Not Included

ENS XVR501H-08-I3-V2 8-Channel Penta-brid 5MP Value/1080P Mini 1U 1HDD Digital Video Recorder, 64Mbps Incoming Bandwidth, Embedded Linux, IoT & POS Functionalities, HDMI/VGA, Audio, 1 SATA

KEY FEATURES
- H.265+/H.265 dual-stream video compression
- Supports all-channel AI Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 12 channels IP camera inputs, each channel up to 6MP
- Max 64 Mbps incoming bandwidth
- Up to 4 channels video stream (analog channel) Perimeter Protection
- Up to 8 channels video stream (analog channel) SMD Plus
- Up to 2 channels video stream (analog channel) human face recognition
- IoT & POS functionalities

SPECIFICATIONS
- Main Processor: Industrial-grade processor
- Operating System: Embedded Linux
- Operating Interface: Web; Local GUI
- Face Database Capacity: Up to 10 face databases with 10,000 face images in total
- Mobile Phone Access: iOS; Android
- Recording Playback: 1/4/9
- Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
- General Alarm: Motion detection; video loss; video tampering
- Intelligent Alarm: Face detection; face recognition; perimeter protection
- Anomaly Alarm: No disk; disk error; disk full; offline; IP conflict; MAC
- Audio Input: 1-channel RCA, 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- HDD Interface: 1 SATA port, up to 16TB capacity
- RS-485: 1 port, for PTZ control
- USB: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
- HDMI: 1
- VGA: 1
- Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
- VGA: 1
- Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
- Power Supply: 12 VDC, 2A
- Power Consumption: <7 W (without HDD)
- Operating Temperature: 10C to +55C
- Storage Temperature: 20C to +60C
- Operating Humidity: 93% (RH)
- Dimensions: 12.80"W 10.12"D 2.17"H
- Weight: 2.58 lb
