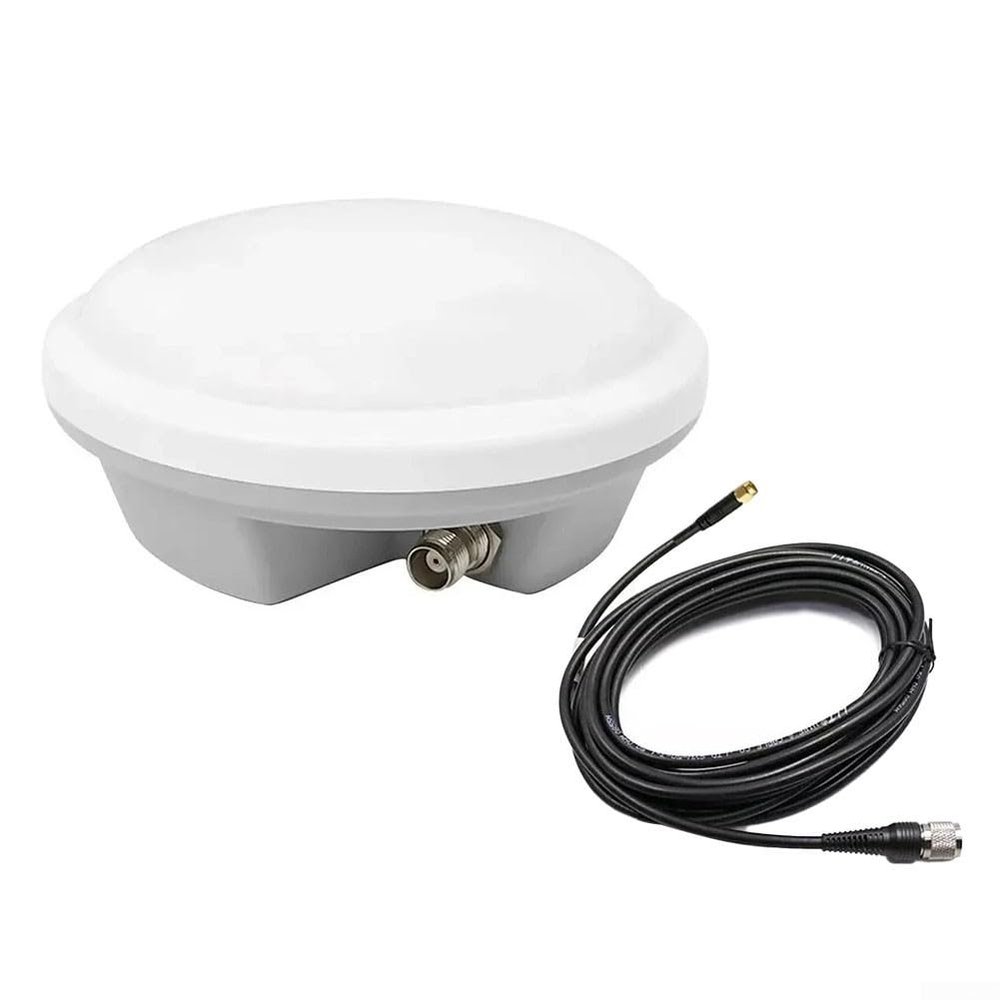

Elmtap AG-35H GNSS Antenna High GPS For L1 L2 L5, BDS, GLONASS And For Galileo Signal Reception(TNC-TNC)

Description

• [COMPREHENSIVE SATELLITE SUPPORT] The AG-35H GNSS Antenna is engineered to receive signals from multiple satellite systems including GPS, GLONASS, BDS, and , offering nice versatility for all your mapping needs.
• [RELIABLE PERFORMANCE] Rigorously tested for stability, this antenna provides consistent performance even in challenging conditions, making it nice for professionals in the field.
• [EFFICIENT SIGNAL RECEPTION] With its advanced 4 feed points design and RHCP polarization, the antenna excellent signal and reduces noise interference during operation.
• [CONSTRUCTION] Made from ABS and metal materials, this antenna is built to endure harsh weather conditions while delivering long lasting performance.
• [SIZING REMINDER] you verify your specific size requirements before purchasing to achieve nice results.

Features:
* Manufactured and tested under strict quality control standards.
* Stable performance and high reliability.
* AG-35H GNSS Antenna Magnet GPS L1 L2 L5 for Galileo Glonass BDs Car Roof for Agricultural Mapping AG35.
* Four-star full-frequency GNSS measurement antenna side outlet.

Specifications:
Part name: Full-frequency measurement antenna
Connecting wire (optional): TNC-TNCTNC-SMA
Material: ABS, metal
Color: white
Size: 152mm*67.5mm
Antenna structure: Four feed points, double-layer superposition structure
Supported satellite signals: GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L-Band
Maximum gain: >5.0dBi@FC
Polarization: Right-hand circular polarization (RHCP)
Antenna axis ratio @ : <1.5dB
Horizontal coverage angle: 360
Characteristic impedance: 50 ohm
Phase center error: 2.0mm
Phase center repeatability: 1.0mm
Working frequency: 1164MHZ~1300MHZ;1525MHZ~1621MHZ
Low noise gain: 40+2.0dB (Typ. @25C)
Installation : 5/8-11 and magnetic suction cup

Package contents:
1 x full-frequency measurement antenna
1 x connecting cable
