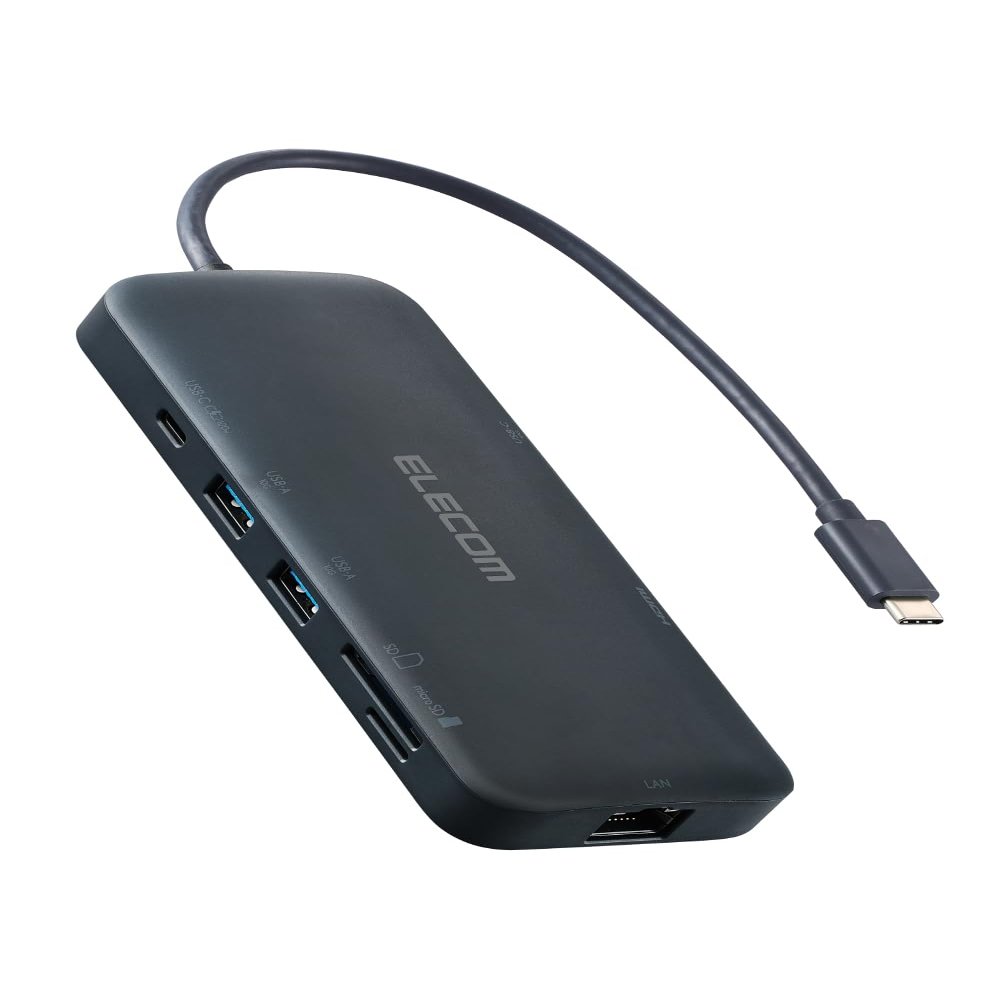

Elecom DST-W10 8 in 1 PD100W HDMI 4K/60Hz Docking Station USB 10Gbps USB 3.2 (Gen2) Ultra Fast Data Transfer Navy

Description

• A docking station that connects to a computer with a USB Type-C (TM) connector to connect a USB device or HDMI display. One cable connects all the peripherals needed to a USB Type-C (TM) computer
• Unique design for stable connection Designed to stabilize the quality of data communication between a computer and a docking station with measurements taken according to the certification test of transmit and reception signals. It minimizes the compatibility problem between connected devices and provides a smooth operating experience
• 1 USB Type-C (TM) port compatible with USB Power Delivery Connect the USB Type-C compatible AC charger to power your device and unit at a maximum of 100 W. Since the product consumes 15 W, the actual output is up to 85 W. If you need power supply at 85W, please prepare an AC charger with 100W output
• Super Fast Data Transfer USB 10 Gbps (USB 3.2 (Gen2) USB Type-C port x1 and 2 USB-A ports
• It is equipped with an HDMI port that can output video from a computer to an external monitor (Supported resolution: up to 4K/60Hz)

Specifications:
Supported OS (Windows): Windows 11/10
Supported OS (mac): macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12
Supported OS (iPadOS): iPad OS 17/iPad OS 16
Supported OS Note: *Updates to the latest version of each OS and installation of service pack may be required.
Connector specifications (upstream): USB Type-C (TM) plug, USB Power Delivery support (maximum input 100W/maximum output 85W), DisplayPort(TM) Alt mode (works with USB 2.0 compatible when connected to USB 2.0 (video output is not supported when USB 2.0 connected))
USB port (downstream): 1: USB Type-C port x 1 *USB Power Delivery port for charging only
USB port (downstream): 2: USB-A port x 2 *Video output is not supported.
USB port (downstream): 3: USB Type-C port x 1 *Video output is not supported.
Video output port (downstream): 1: HDMI(R) port x 1; Supported resolution: Up to 4K/60Hz>
Video output port (downstream): *Input signal must be compatible with standard DisplayPort 1.4.
LAN port (downstream): RJ-45 (1000BASE-T/100BASE-TX/10BASE-T)
Card reader (downstream): 1: SD card slot x 1 *SD/SDHC/SDXC
Card reader (downstream): 2: microSD card slot x 1 *microSD/microSDHC/microSDXC
Cable Length: Approx. 7.9 inches (20 cm) *Not including plug.
Color: Navy
External dimensions: Width 5.9 inches (150 mm) x Depth 2.2 inches (55 mm) x Height 0.7 inches (17 mm) *Cable not included
Operating Environment: Temperature: 32F - 104F (0C - 40C), Humidity: 25%-75% *No condensation
Warranty period: 1 year

Description
A docking station that connects to a computer with a USB Type-C (TM) connector to connect a USB device or an HDMI display. One cable connects all the peripherals needed to a USB Type-C (TM) computer.
Unique design for stable connection. Designed to stabilize the quality of data communication between a computer and a docking station with measurements taken according to the certification test of transmit and reception signals. It minimizes the compatibility problem between connected devices and provides a smooth operating experience.
1 USB Type-C (TM) port compatible with USB Power Delivery You can connect the USB Type-C compatible AC charger to charge your computer. USB Power Delivery allows you to power your device and unit up to 100 W.
The product consumes 15 W, so the actual output is up to 85 W. If you need power supply at 85W, please prepare an AC charger with 100W output.
It is equipped with an HDMI port that can output video from a computer to an external monitor (Supported Resolution: up to 4K/60Hz).
When performing video output with this product, please make sure the device is compatible with DisplayPort(TM) Alt Mode.
It has 1 USB Type-C port and 2 USB-A ports that support USB 10 Gbps (USB3.2 (Gen2).
This product is designed to increase the USB port. It is not recommended to charge your smartphone or tablet with the USB port used for data transfer.
Equipped with SD card slots and microSD card slots that support SDXC/SDHC. It is also convenient for transferring data from images and videos. Two card slots can be used simultaneously.
- Equipped with a LAN port that can connect a PC to a wired network.
Connecting to a computer is compatible with USB 10Gbps (USB3.2 (Gen2) to achieve ultra-fast data transfer up to 10Gbps.
Cable is a direct connection type that does not need to worry about losing it. The cable length is approximately 7.9 inches (20 cm) that can be connected to a tablet PC/2 in 1 computer.
If you are considering implementation by a corporation, we recommend checking it in your environment before purchasing.
Depending on the specifications of devices equipped with a USB Type-C port, some functions may not be available.
*USB Type-C compatible AC charger for charging a computer is not included. Please prepare them separately.
If a computer is not compatible with charging from a USB Type-C port, it cannot be charged via the USB Type-C port. Please make sure your computer supports USB Power Delivery when charging.
If a computer does not support video output from a USB Type-C port, the video output port of this product will not work. Please make sure the device supports DisplayPort(TM) Alt Mode when video output.
This product will not work on the system screen or BIOS screen before operating the OS.
Please connect this product directly to the USB Type-C port on your computer. If you connect to the USB hub or the USB Type-C port on the expansion board, this product will not be compatible.
*USB Type-C and USB-C are trademarks of USB Implementers Forum.
This product meets more than one of our own environmental certification standards and displays the "THINK ECOLOGY" mark.
Our commitment to environmental protection, the weight of the plastic in the packaging container of the product has been reduced by 20% more than our in-house standard products.
We are committed to environmental protection, and the packaging container of the product is made up of only paper, cardb
