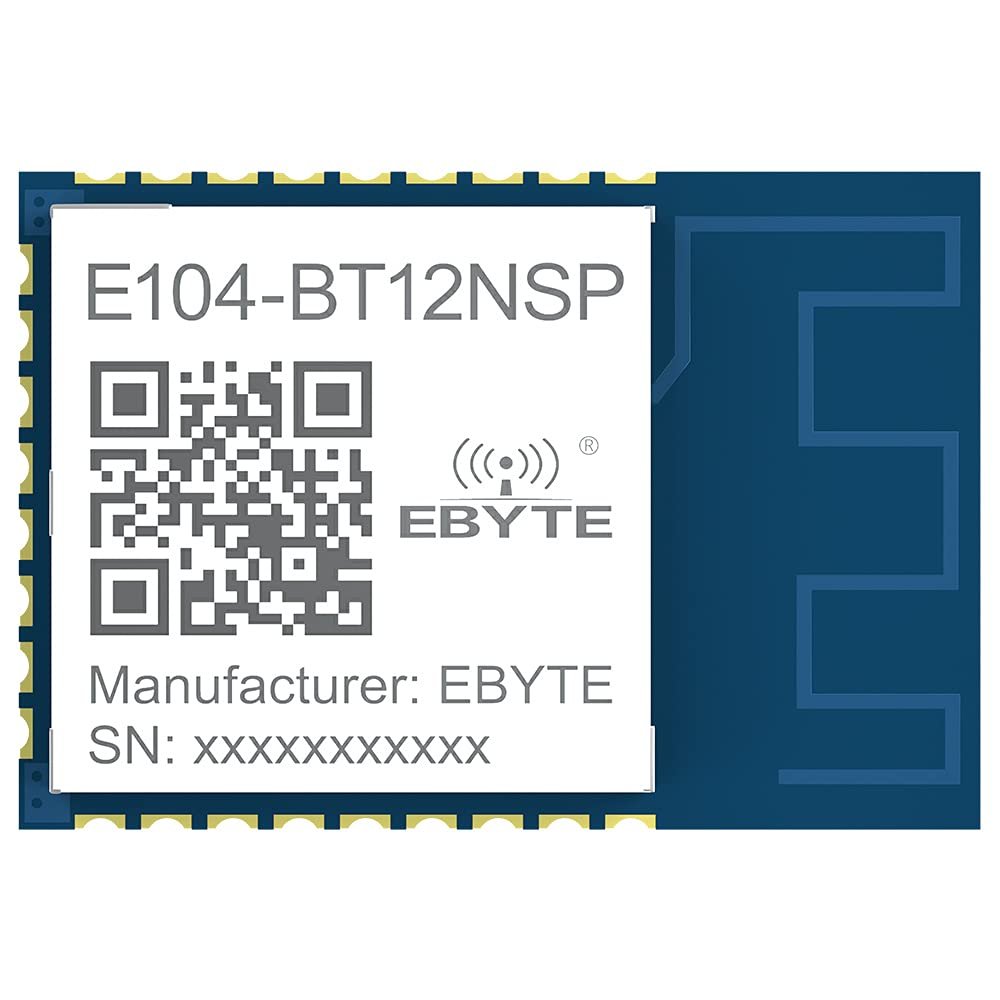

EBYTE GFSK Bluetooth Self Mesh Module 10dBm 2.4Ghz BLE E104-BT12NSP 60m Support Sig Mesh V1.0 Max 16383 Nodes UART Interface

Description

• Application-smart home, etc; Building automation; Luminaires;Wireless sensor networks; Internet of Things.
• E104-BT12SP Bluetooth Mesh self-organizing network module supports Sigmesh V1.0 standard, single network theory can accommodate up to 16,383 nodes
• The network information is automatically memorized after the device enters the net, and the network time is completed within1 second.Mobile phone APP can be used as proxy on any node to realize remote control of Mesh network
• .It is convenient to broadcast in-network or any fixed point data transmission. The transmission packet can support 60 bytes maximum.Support SIG standard HSL(H:Hue,S:Saturation,L:Lightness) model,one key implementation of lamp control application scene,and support Skycat elves.Suitable for Internet of Things information gathering, large-scale network communication, smart home, etc.
• Warranty: We have 1 year warranty. If you need user manual or any problems contact with us free.

[Frequency]?2400~2483.5MHz
[Modulation]?GFSK
[Distance]?60m
[Size]?19*13mm
[maximum emitting power]?10dBm
[Introduction]?E104-BT12NSP Bluetooth Mesh self-organizing network module supports Sigmesh V1.0 standard, single network theory can accommodate up to 16,383 nodes.The network information is automatically memorized after the device enters the net, and the network time is completed within1 second.
Feature
Support TmallGenie.
Support TmallGenie.
PCB carrier antenna, 60m maximum open communication distance
Multi-stage adjustable power at +10 dBm
serial port baud rate dynamic compatibility
Radio channels 37, 38, 39.
Network Cancellable Center Node
Memory network information, auto-online.
Over. One second to go.
Support mobile phone APP access
Maximum number of nodes in network 16383
Support for SIG Mesh Generic Model
Support for SIG MESH HSL Lighting Models
Support Custom Serial Port Data Transmission Model
Supports low power consumption (SIG standard low power consumption)
support crosstalk wake-up
