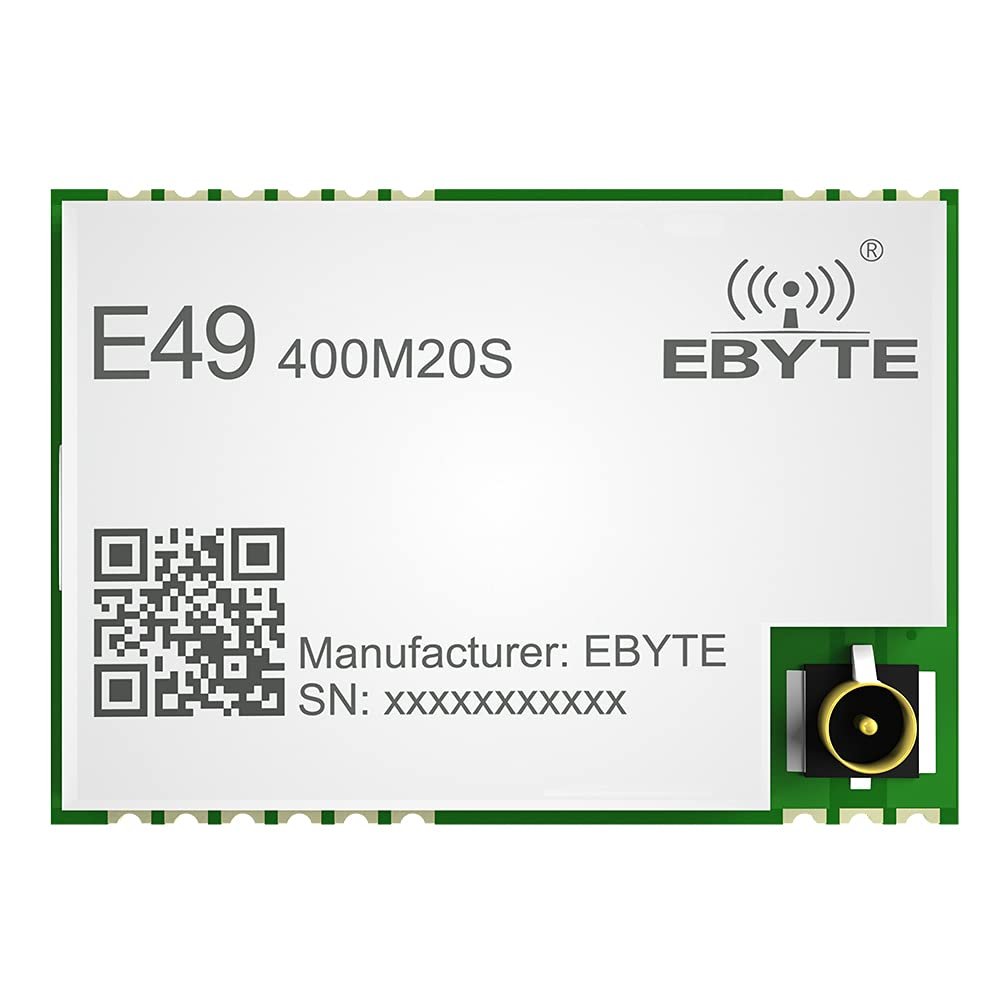

EBYTE CMT2300A Wireless Data Transmission Module 20dBm 433MHz rf Module SMD Wireless Module IPEX/Stamp Hole E49-400M20S SPI Module

Description

• E49-400M20S is a cost-effective wireless data transmission module launched by Chengdu Ebyte. It is a pure hardware module based on CMT2300A.
• E49-400M20S supports a maximum transmit power of 20dBm, and users can set a lower output power to save power consumption. The module works in the 410MHz ~ 510MHz frequency band, covering the commonly used 433MHz and 470MHz frequency bands.Since this module is a pure RF transceiver module, it uses an SPI interface and requires an MCU driver.
• Application -Smart home and industrial sensors, etc.; Security system, positioning system; Wireless remote control, UAV; ? Wireless game remote control; Healthcare products; Wireless voice, wireless headset; Automotive industry applications.
• Features-The measured communication distance can reach 2.5km; The max transmit power is 20dBm, and the software can be adjusted in multiple levels; Support ISM 433MHz/470MHz frequency band; data transmission rate from 0.5Kbps to 300Kbps; ? low power consumption mode, suitable for battery applications; GFSK modulation and OOK and (G)MSK; 2.6V?3.6V power supply; stamp hole and IPEX interface, users can choose to use according to their own needs

[IC]? CMT2300A
[Frequency]?410~510MHz
[Power]?20dBm
[Distance]?2.5km
[Size]?20*14mm
[Weight]?1.20.1g
[Introduction]?E49-400M20S is a cost-effective wireless data transmission module launched by Chengdu Ebyte. It is a pure hardware module based on CMT2300A. E49-400M20S supports a maximum transmit power of 20dBm, and users can set a lower output power to save power consumption.
