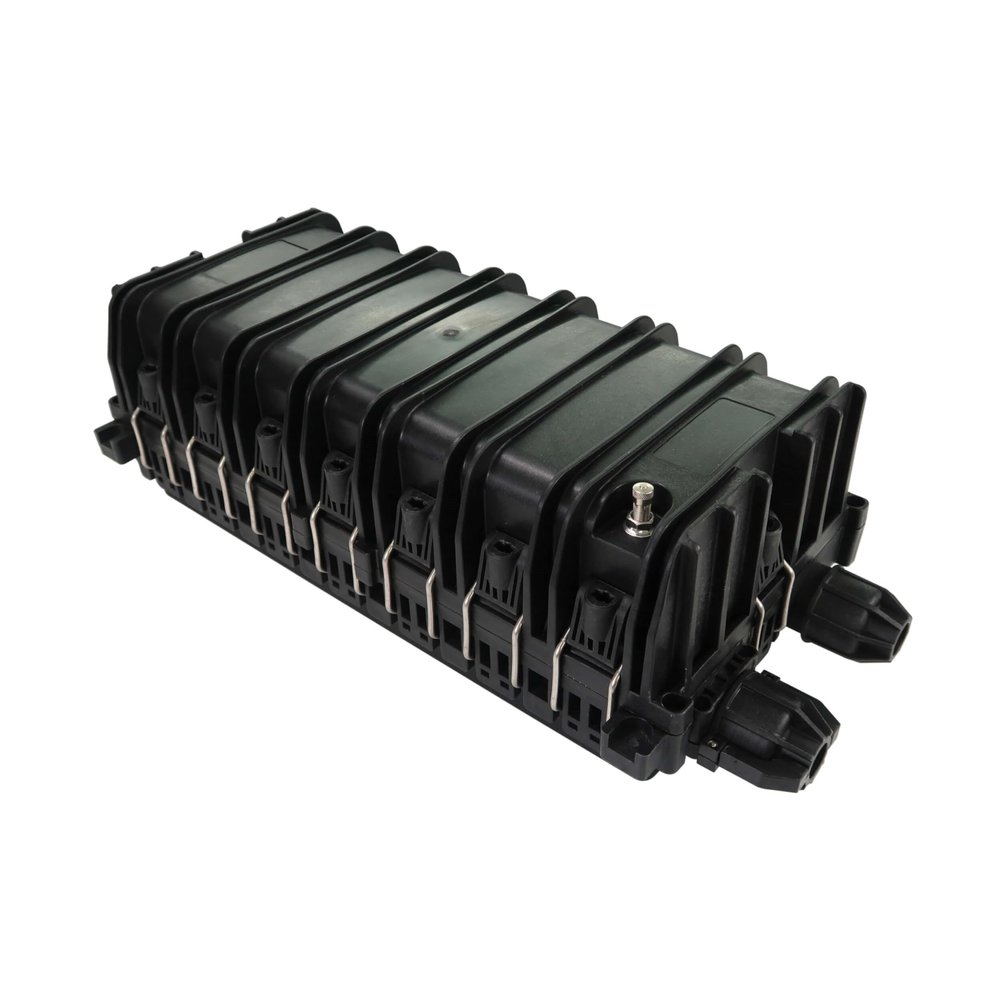

Eaton Tripp Lite Fiber Optic Splicing Enclosure, Horizontal Box, 288 Fiber Capacity Single Mode & Multimode, 6 Cable Trays, Outdoor IP68 Rated, Lifetime Manufacturer's Warranty (N600H-0288-6)

Description

• FIBER SPLICE ENCLOSURE: Ideal for single mode and multimode. Provides 4 cable entry passthroughs. The 6 hinged splicing trays enable access to cabling without removing other trays. Built-in labels log what is spliced to the 12 main MPO cable colors.
• 288 FIBER CAPACITY: Accommodates up to 48 unterminated cables or 288 splicing connections. Included tubing protects each splice point. Integrated ties keep cables secure. Recommended for FTTH/FTTP installations, including long underground fiber runs.
• INDOOR & OUTDOOR INSTALLATION: IP68 rating means this enclosure is 100% protected against dust and able to endure immersion in 1.5 meters of water for up to 60 minutes. Protects outdoor fiber cable connections from the elements in a large deployment.
• FLEXIBLE OPERATION: Compatible with pole, on a wall, on overhead telco lines or underground installation. Operating temperature range from -49F to 149F (-45C to 65C) supports safe installation in a wide range of outdoor climates.
• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a manufacturer's Lifetime Limited Warranty and is supported by Eaton's expert technical support team over phone and email.

Provides Durable, Customizable Protection for Outdoor Fiber Cable Runs
This fiber splicing horizontal enclosure comes with six splice trays that accommodate up to 48 unterminated cables each to give you more flexibility in adjusting cable lengths and connection types directly on-site. The N600H-0288-6 is ideal for single mode and multimode fiber infrastructure in municipal broadband installations, including residential (Fiber to the Home or FTTH) and commercial (Fiber to the Premise or FTTP). This also includes underground fiber runs and those spanning utility poles.

Flexible Connections in Your Fiber Network
By accommodating and protecting 288 splicing connections, the N600H-0288-6 provides a high level of scalability in your network design. The enclosure supports up to four cable entry passthroughs to support a variety of cable runs. Each hinged fiber splice tray allows access to internal cabling without having to remove other trays, making on-going re-entry and re-use convenient.

IP68 Rating Denotes Resistance to Dust and Water
The N600H-0288-6's IP68 rating means the enclosure is 100% protected against dust and able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance.

Cable Management That's User Friendly
Built-in labels log which fiber is spliced to each of the 12 main MPO cable colors. Integrated cable ties keep cables well organized and secure. Included tubing protects each splice point.

A Great Variety of Installation Choices
Operating temperature range from -49F to 149F (-45C to 65C) supports safe installation in a wide range of outdoor climates. It can be installed on a pole, on a wall, on overhead telco lines or underground.

Package Includes
N600H-0288-6 288 Fiber Splice Horizontal Enclosure
(288) Splicing tubes
(20) Cable ties
(6) Choke plugs
(12) Cable grommets
EVA tube
Silicon oil
Insulation tape
Cleaning paper
Aerial-mounting hardware
Owner's manual
