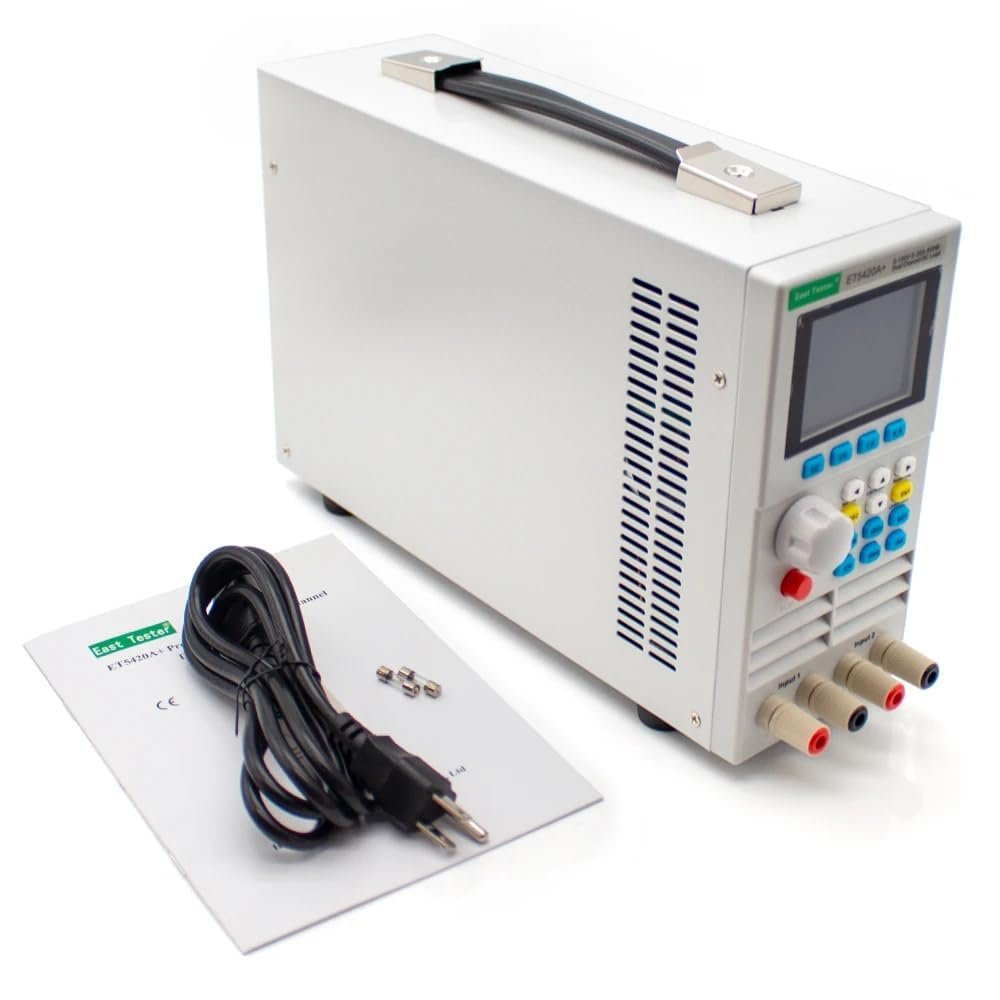

ET5420A+ Dual Channel Programmable 200W*2 DC Electronic Load Battery Load Tester DC Load Meter Tester 0-150V 0-40A (USB)

Description

• Adopt 2.8-inch TFT liquid crystal display screen, display rich content; the operation process is simple and convenient, with an intuitive interface display system;
• With key lock function to prevent misuse;
• With over-voltage, over-current, over-power and over-temperature protection functions, over-voltage and over-current parameters can be flexibly set to achieve effective protection for the load;
• With intelligent fan speed control function, effectively reducing fan noise during work;
• With input polarity reverse prompt.

Dual Channel Programmable 200W*2 DC Electronic Load Battery Load Tester DC Load Meter Tester 0-150V 0-40A

Features:
Adopt 2.8-inch TFT liquid crystal display screen, display rich content; the operation process is simple and convenient, with an intuitive interface display system;
With key lock function to prevent misuse;
With over-voltage, over-current, over-power and over-temperature protection functions, over-voltage and over-current parameters can be flexibly set to achieve effective protection for the load;
With intelligent fan speed control function, effectively reducing fan noise during work;
With input polarity reverse prompt.

Main function introduction:
Provide CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes;
Provide professional battery testing;
Provide professional LED testing;
Dynamic test mode, which can test the dynamic output performance of the power supply;
Scanning test mode, which can test the continuity of power output within a certain range;
List mode, which can simulate various loading state changes;
Short circuit test for simulating load short circuit;
Support external trigger input;
Built-in buzzer alarm;
Power off to keep data storage function

Specifications:
Power supply voltage: 100Vac10%~240Vac10%, 50/60Hz (global application)
Display: 2.8-inch TFT LCD screen, resolution 320240
Operating temperature: 0C to 40C
Storage temperature: -10C to 70C
Relative humidity: <80%
Interface: standard USB, optional 485 or 232
Size: 90190300mm

Package includes:
1 xDual Channel DC Load Meter
1 x Power Line
2 x Fuse
1 x English Manual
