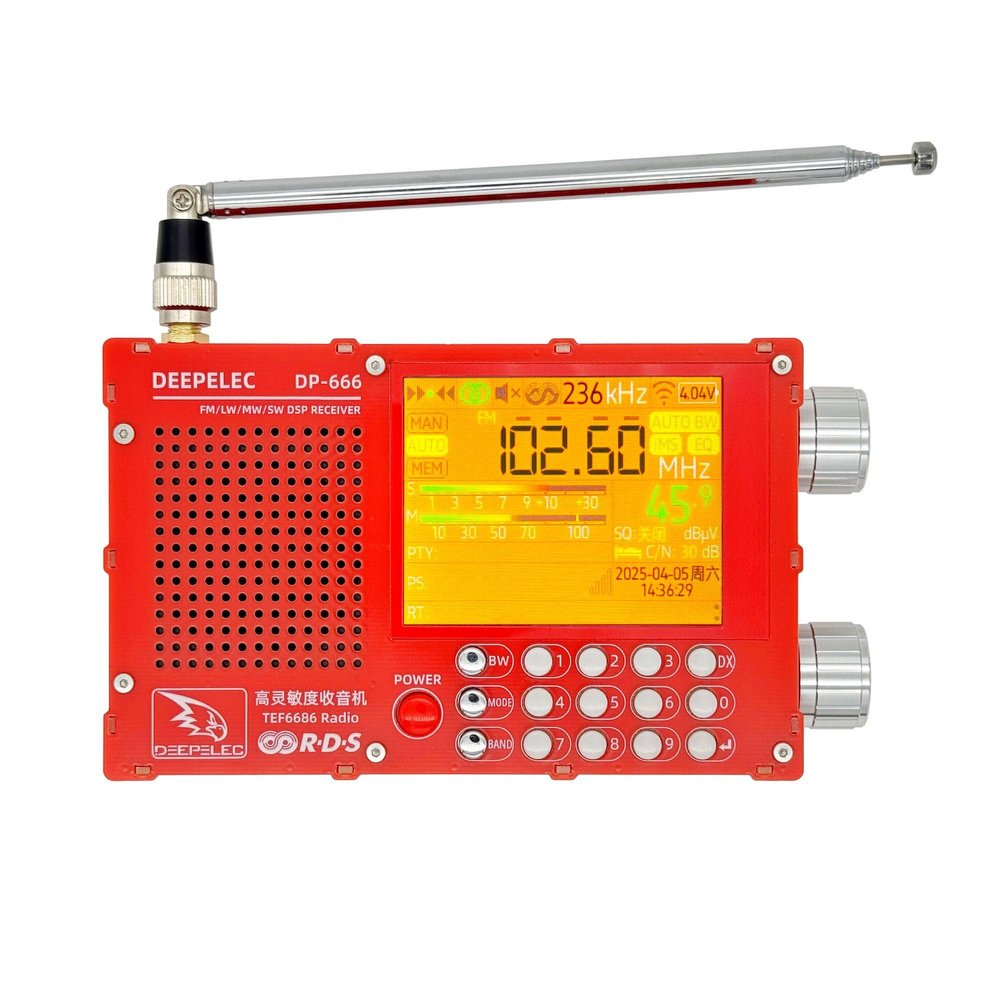

DP-666 TEF6686 Full Band Radio, FM AM Shortwave Radio RDS, 2.8 Inch Resistive Touch LCD Color Screen, Portable High Sensitivity Travel Radio (red)

Description

• [HIGH SENSITIVITY RADIO] Experience superior reception with the DP-666, powered by the advanced TEF6686 chip, ensuring excellent selectivity and high sensitivity for all your favorite AM, FM, and shortwave stations.
• [USER-FRIENDLY DESIGN] The redesigned circuit board and 8 inch resistive touch LCD provide a user-friendly interface with easy frequency input and rich RDS information display for seamless navigation.
• [LONG-LASTING BATTERY] Equipped with a powerful 5000mAH battery, this portable radio guarantees extended playtime, perfect for travel or outdoor activities without worrying about recharging.
• [SIZING REMINDER] Please refer to the specifications for dimensions and ensures compatibility with your needs.
• [RICH RDS DISPLAY]: View comprehensive station information on the 2.8-inch resistive touch LCD color screen. The radio supports full Radio Data System (RDS) functionality, displaying station names, program types, radio text, and more when broadcast by local stations. The intuitive touch interface makes navigation simple and enjoyable.

Features:
1. This is a high-sensitivity radio based on high-performance automotive-grade TEF6686 chip, with excellent selectivity and ultra-high sensitivity. This automotive for DSP tuner has a wide range of functions and advanced algorithms (CEQ, EMS, and PACS, noise canceller...), (software for DEFINED radio) signal processing, especially in improving multipath, adjacent frequency interference, weak signal processing and noise elimination.
2. This is a radio built on the open source project TEF6686_ESP32 of PE5PVB. In addition to listening to radio stations, the project also supports a wealth of advanced features, such as: almost all RDS (Radio Data System) data display, automatic/manual radio station scanning, squelch function, battery voltage display, changeable themes, multi-language, radio station presets, etc.
3. We redesigned the circuit board based on the mature TEF6686 front-end receiving circuit, and equipped the DP-666 with a 2.8-inch resistive touch LCD color screen based on the open source project. While the portability of the machine, it can display rich RDS information (RDS information requires local radio support); a numeric keyboard has been added to facilitate users to quickly input frequencies; a large-capacity 5000mAH battery supports longer standby time.
In short, I hope this portable high-sensitivity travel radio will satisfy you!

PE5PVB project: https://github.com/PE5PVB/TEF6686_ESP32
DP-666 project: https://github.com/flyoob/TEF6686_ESP32
TunertechnologyDAB

Specifications:
Part name: DP-666 radio
Material: PCB acrylic board
Color: white, yellow, black, red
Size: as shown

Package contents:
1. Host *1 (3.7V/5000mAh lithium battery installed)
2. High-quality telescopic antenna with for SMA connector *1
3. USB-A to TYPE-C 1 meter data cable *1
4. Storage bag *1
