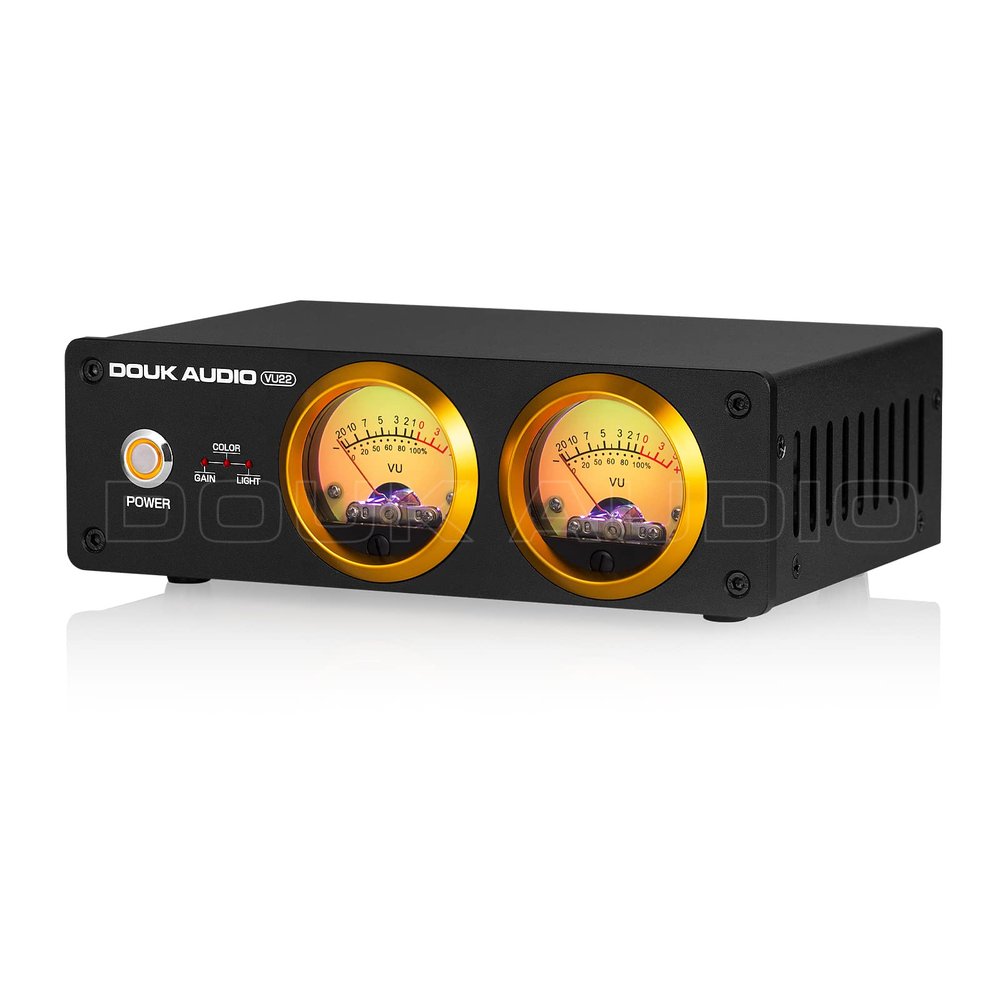

Douk Audio VU22 Dual Analog VU Meter Display DB Panel MIC+LINE Sound Level Meter (Black)

Description

• Wired and wireless audio inputs: with stereo RCA/3.5mm AUX audio input and microphone pick up, work well with most audio devices such as phone, computer, CD players, or speakers etc., very suitable for home/office/studio to dynamically decorate your auditory feast.
• Excellent sound and free settings: with 100K high-impedance input circuit, ensuring clean sound without any audio rendering when using line inputs. The color and light level of backlight also can be adjusted freely, perfectly match with different styles of audio device and environments.
• Advanced AGC algorithm and better display: AGC ensures ideal visual effects even the input signal is in a small to large range, avoid that no display when input low signal and display in full screen when input high. With gain adjustment even can set the swing range of pointer, easily to control most input signals and achieve better beating effects.
• Attractive looking and powerful design: all metal case with CNC machined panel, solid stepless adjustment knob, all interfaces are gold-plated to ensure the tight connection, ensures the smooth transmission of the original audio signal and minimizes the loss of the signal during transmission.

Warm Tips
1. Without power adapter, and VU22 needs to be powered by separate USB power supply, don't use the USB port of computers or share the power supply with audio source, otherwise common ground noise will be caused.
2. Stereo RCA and 3.5mm AUX input are in parallel, two inputs and outputs will work simultaneously, so please don't connect RCA and 3.5mm AUX input at the same time avoid mixing.

Parameters
Audio input: stereo RCA / 3.5mm AUX / Microphone
Audio output: stereo RCA / 3.5mm AUX
Input impedance: 100K
Input voltage: 0.1-2Vrms
Frequency response: 5Hz-20KHz
Brightness color: switchable
Brightness level: adjustable
Gain adjustment: support
Working voltage: DC 5V (1A)
Power interface: USB (type-C)
Setup save: support
VU meter diameter: 45mm
Dimensions(W*D*H): 177*115*59mm / 6.97*4.53*2.32in
Net weight: 661g / 1.46lb
Package weight: 900g / 1.98lb

Packing List
1*VU22 VU Meter
1*USB Cable (No power adapter)
4*Rubber Feet
1*User Manual
