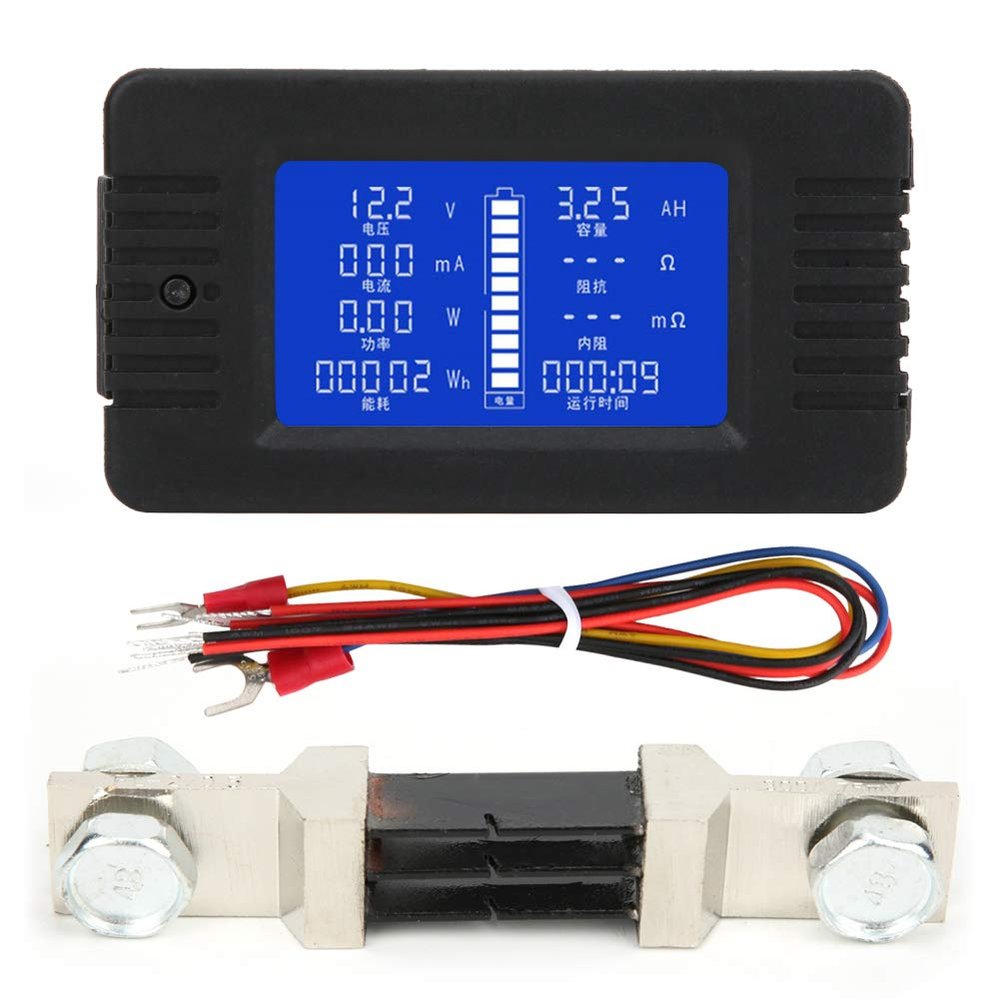

Digital Battery Rank Monitor PZEM-015 Multi-Function Battery Meter LCD Digital Battery Test Detector with 300A Shunt(015 English (300A))

Description

• Construction: Crafted with high strength elastic material this shunt withstands impacts without cracking making it ideal for demanding environments like marine engines or off grid solar installations where equipment durability is for consistent performance monitoring
• Comprehensive Data Display: Simultaneously key parameters including voltage discharge current power capacity and internal through the large LCD screen providing a complete overview of your battery system status at a whether for RV power or solar storage applications
• Measurement: Advanced chip technology ensures highly accurate readings of battery voltage current and capacity with soldering processes delivering trustworthy data for decisions on energy usage in marine solar or automotive contexts
• Clear Visual Interface: The high contrast LCD display offers exceptional readability in various lighting conditions from bright sunlight to dim engine rooms enabling easy monitoring of battery status during RV trips marine excursions or solar power management
• Multi Function Monitoring: Measure essential battery metrics like remaining power energy consumption and runtime specifically designed for 12V 24V systems including AGM lithium and batteries in solar setups RVs boats and backup power applications.

Specification:Condition: 100% Brand New
Item Type: Battery Tester
1. Voltage:
Measuring Range: 0-200V (<8V requires external power supply);
Display Format: <10V display such as: 9.99V; <100V display such as: 99.9V; 100V display such as: 199V
Minimum Resolution: 0.01V
Starting Voltage: 0.05V
Measurement Accuracy: 1%
2. Current:
Measuring Range: 0-300A,
Display Format: <1A display such as: 999mA; <10A display such as: 9.99A; <100A display such as: 199.9A; 100A, display such as: 199A
3. Power:
Measuring Range: 0-60000W
Display Format: <10W, display such as: 9.99W; <100W display such as: 99.9W; <1000W display such as: 99W; <10000W such as: 9.99KW; 10000W display such as: 19.9KW
Minimum Resolution: 0.01W
Starting Power: 0.2W
Measurement Accuracy: 1%
4. Impedance:
Measuring Range: 0-1000
Display Format: <100 display such as: 99.9; 100 display such as: 999
--- is displayed when the overrange or current is 0.
Minimum Resolution: 0.1
5. Internal Resistance:
Measuring Range: 0-999m
Display Format: Such as 999m, --- is displayed when the range or current is 0.
Resolution: 1m
Measurement Accuracy: 1%
6. Capacity:
Measuring Range: 0-1000AH
Display Format: <1AH display such as: 999mAH; <10AH display such as: 9.99AH; <100AH, display such as: 99.9AH; <1000AH display such as: 999AH
Minimum Resolution: 1mAH
Measurement Accuracy: 1%
Package List:1 x Tester1 x Shunt1 x Chinese and English Manual 1 Set of Wires
