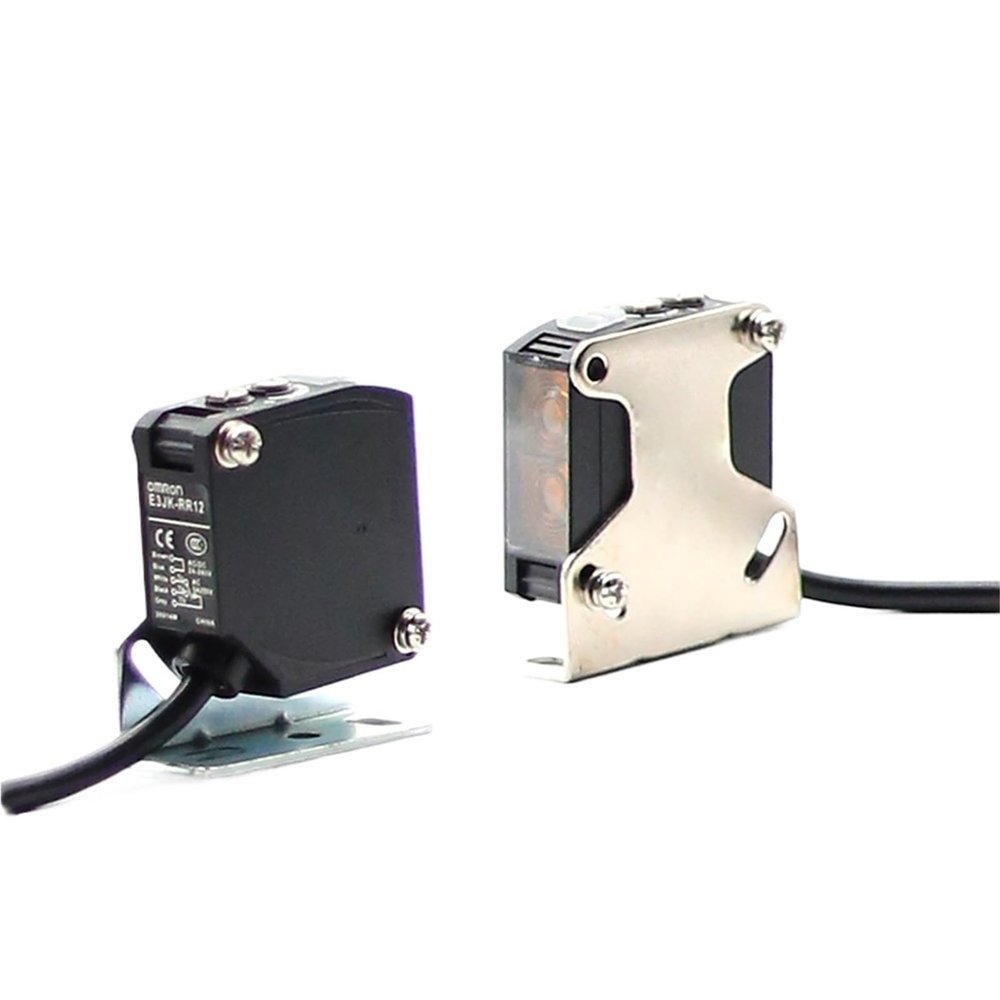

Diffuse Reflection Switch E3JK-DR12 DR11 RR11 RR12 TR11TR12 Sensor Feedback Reflex Relative Reflection(E3JK-TR11)

Description

• Switches
• Diffuse Reflection Switch E3JK-DR12 DR11 RR11 RR12 TR11TR12 Sensor Feedback Reflex Relative Reflection

Switches
Detection Method
Diffuse Reflection
Feedback Reflex
Relative Reflection
Type
NPN
E3JK-DN11
E3JK-DN12
E3JK-RN11
E3JK-RN12
E3JK-TN11
E3JK-TN12
PNP
E3JK-DP11
E3JK-DP12
E3JK-RP11
E3JK-RP12
E3JK-TP11
E3JK-TP12
DC AC universal
E3JK-DR11
E3JK-DR12
E3JK-RR11
E3JK-RR12
E3JK-TR11
E3JK-TR12
Detection Range
2.5m10%
50cm10%
8m10%
5m10%
20m10%
10m10%
Detect objects
Opaque object
Control output
N/P: less than 300mA, a: less than 400mA J: less than 2A (contact life: 100,000 times)
Material
The shell:ABS Detection surface:PMMA
Conductor length
2M
Protective structure
IP67
Use temperature
30~65No ice
Operating humidity
35~95RH
Annex
Bracket/screw/nut
