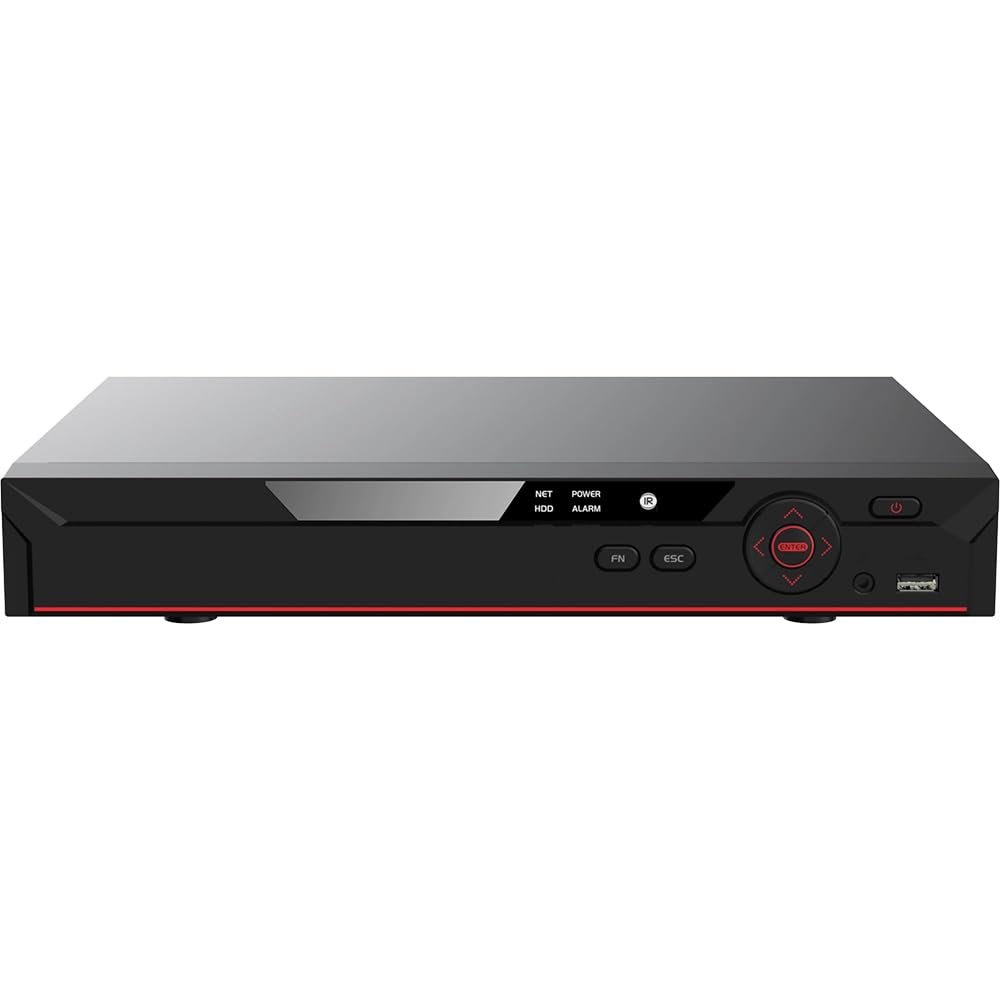

Diamond XVR501H-16-4KL-I3-V2 DVR Max.32CH (Upto 16CH BNC/32CH IP) 8MP @ 7FPS HDMI/VGA Audio 1SATA

Description

• Max Recording Resolution: 8MP
• Channels: 16CH
• LAN Ports: 1
• SATA: 1X SATA PORT
• Video Outputs: HDMI, VGA (Independent)
• NDAA Compliant: No
• Hardware Features: Audio in, Audio out
• HDD Not Included

ENS XVR501H-16-4KL-I3-V2 Diamond 16-Channel Digital Video Recorder, 8MP@7FPS Resolution, Max 128Mbps Incoming Bandwidth, Embedded Linux, 16 Playback, HDMI/VGA, Audio, 1 SATA

ENS Security, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max. full-channel SMD Plus to benefit customers from AI upgrade. This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor

KEY FEATURES
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
- Up to 8 channels video stream (analog channel) Perimeter Protection
- Up to 16 channels video stream (analog channel) SMD Plus
- Up to 2 channels video stream (analog channel) human face recognition
- IoT & POS functionalities

SPECIFICATIONS
- Main Processor: Industrial-grade processor
- Operating System: Embedded Linux
- Operating Interface: Web; Local GUI
- Mobile Phone Access: IOS; Android
- Recording Playback; 1/4/9/16
- General Alarm: Motion detection; video loss; tampering
- Intelligent Alarm: Face detection; face recognition; perimeter protection
- Two-way Talk: Yes
- HDD Interface: 1 SATA port, up to 16TB capacity for each disk.
- RS-485: 1 port, for PTZ control
- USB: 2 (USB 2.0 port, USB 3.0 port)
- HDMI: 1
- VGA: 1
- Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Power Supply: DC 12V, 3A
- Operating Temperature: 10C to +55C
- Operating Humidity: 10%90% (RH)
- Dimensions: 12.80"W 10.12"D 2.17"H
- Weight: 2.87 lb
