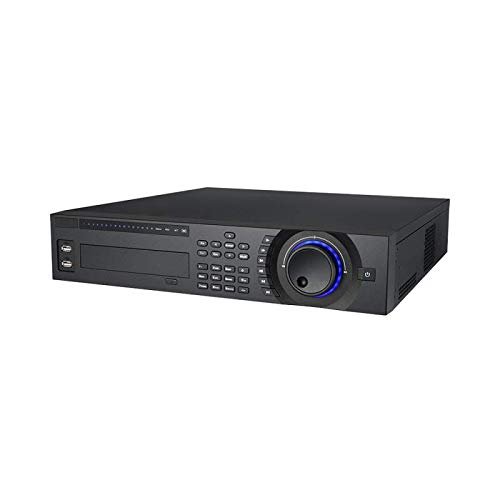

Diamond - NVR508S-64/16P-4KS2E - 64 Channel 2U 16POE 4K&H.265 PRO Network Video Recorder, (NO HDD Included)

Description

• H.265/H.264/MJPEG/MPEG4 codec decoding
• Max 320Mbps incoming bandwidth - Up to 12Mp resolution preview&playback
• 2HDMI/VGA simultaneous video output
• 3D intelligent positioning with Dahua PTZ camera - Support RAID 0 /1/5/6/10
• 64 Channel 2U 16 PoE 4K&H.265 Pro Network Video Recorder, 320Mbps, 2 HDMI, 1 VGA, 16CH Alarm, 8 SATA, Advanced IVS

System CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG Main ProcessorEmbedded Processor Video Out2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA Video Resolution3840x2160, 19201080, 12801024, 1280720, 1024768 IPC In64CH Display Split1st screen: 64CH: 1/4/8/9/16/25/36 2nd screen: 1/4/8/9/16 Audio In1 Audio Out1 2 Way Audio1 Channel Input, 1 Channel Output, RCA Recording Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. Recording Rate320Mbps Bit Rate16kbps~20Mbps for per channel Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Alarm In16 Channel, Low Level Effective, Green Terminal Interface Alarm Out6 Channel, NO/NC Programmable, Green Terminal Interface Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video DetectionMotion Detection, MD Zones: 396 (22 18), Video Loss and Tampering Alarm Relay Output6 Channel, NO/NC Programmable, Green Terminal Interface Playback Channels1/4/9/16 Playback SearchTime/Calendar Search, Event (motion) Playback FunctionPlay, Pause, FF, FB; Digital zoom Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device Network InterfaceRJ-45 port (10/100/1000Mbps) PoE Ports16 ports (IEEE802.3af/at) Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P Network Max. Users128 users MobileiPhone, Android USB4 ports (2 Rear USB3.0,2 Front USB2.0) RS4851 port, for PTZ control RS2321 port, for communication with PC or keyboard Internal HDD8 SATA III Ports, up to 8TB capacity for each HDD e-SATA1 eSATA port
