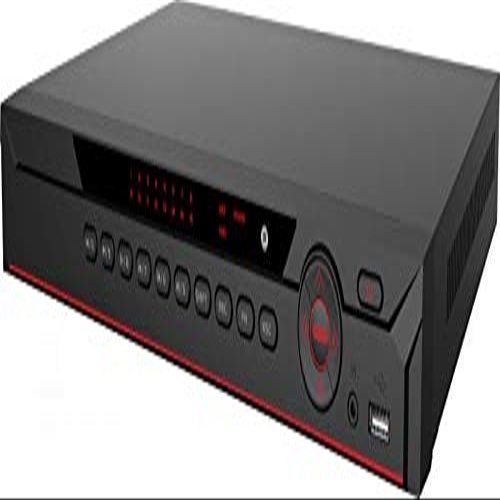

Diamond NVR302A-16-4KS2 16-Channel Lite Series Network Video Recorder; Supports 4K Resolution (3840x2160) for Recording, Live Viewing, and Playback; HDMI and VGA Interfaces; HDD Not Included

Description

• H.265/H.264 codec decoding
• Max 200Mbps Incoming Bandwidth
• Up to 8MP Resolution for Preview and Playback
• HDMI/VGA simultaneous video output
• Support ANR technology to enhance storage reliability when the network breaks down
• HDD not included

Diamond NVR302A-16-4KS2 16-Channel Lite Series Network Video Recorder; Supports 4K Resolution (3840x2160) For Recording, Live Viewing, and Playback; HDMI and VGA Interfaces; HDD Not Included

Is the first Lite Series NVRs which can support up to 4K and H.265. Provides up to 8MP resolution. For applications where details are critical for identification, it provides a powerful image performance with up to 4K. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and backup storage. This NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without video management system (VMS)

Key Features:
- H.265/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- HDMI/VGA simultaneous video output
- Support ANR technology to enhance storage reliability when the network breaks down
- HDD not included

Specifications:
- Interface: 1 HDMI, 1 VGA
- Resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
- OSD: Camera Title, Time, Video loss, Camera lock, Motion detection, recording
- Video Detection: Motion Detection, MD Zones: 396(22x18), Video Loss and Tampering
- Playback: 16CH: 1/4/8/16
- Backup Mode: USB Device/Network
- Internal HDD: 2 SATA III Port, Up to 6 TB capacity for each HDD
- HDD Mode: Single
- USB: 2 USB Ports (1 USB2.0, 1 USB3.0)
- IP Camera Input: 16-Channel
- Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
- Recording Compression: H.265/H.264
- Recording Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
- Network Interface: 1 RJ-45 Port (10/100/1000Mbps)
- Max. User Access: 128 users
- Power Supply: DC12V/4A
- Overall Dimensions: 14.8 x 11.1 x 2.2 inches
- Weight: 3.5 pounds
