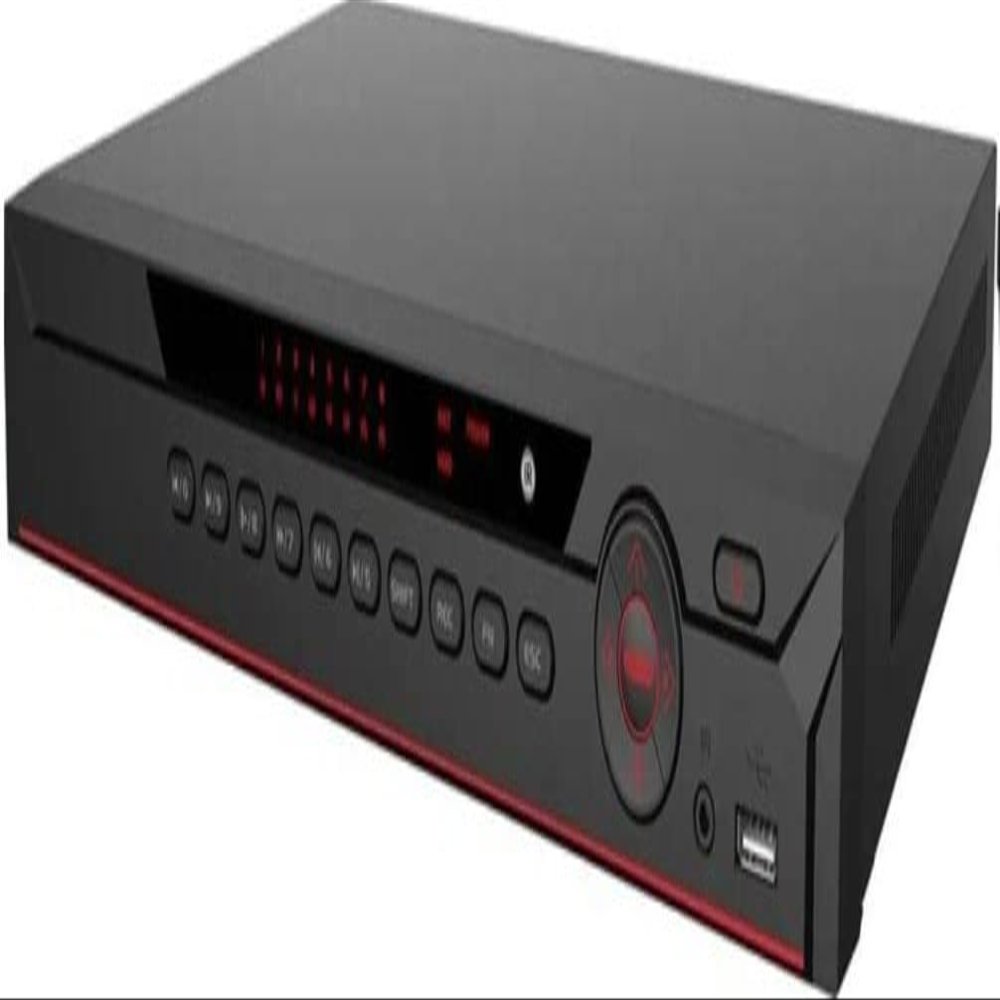

Diamond NVR302A-16/16P-4KS2/L 16-Channel 1U 16 PoE 4K&H.265 Lite Network Video Recorder, Industrial-Grade Embedded Processor, Embedded Linux OS, 160/64 Mbps Bandwidth, HDMI/VGA, Audio/Alarm, 2 SATA

Description

• New UI interface with easier operation experience
• P2P remote surveillance, video play on a mobile device
• 16ch@720P(30FPS), self-adaptive decoding capability
• Supports mainstream cameras of ONVIF and RTSP protocol
• VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K

Diamond NVR302A-16/16P-4KS2/L 16-Channel 1U 16 PoE 4K&H.265 Lite Network Video Recorder, Industrial-grade Embedded Processor, Embedded Linux OS, 160/64 Mbps Bandwidth, HDMI/VGA, Audio/Alarm, 2 SATA

Key Features
- New UI interface with easier operation experience
- Smart H.265/Smart H.264
- P2P remote surveillance, video play on a mobile device
- 16ch@720P(30FPS), self-adaptive decoding capability
- Supports mainstream cameras of ONVIF and RTSP protocol
- VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K
- DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP (Network Time Protocol), and DDNS (Dynamic Domain Name System)

Specifications
- Main Processor: Industrial-grade embedded processor
- OS: Embedded Linux
- Network Bandwidth: 160Mbps for access, 160Mbps for storage and 64Mbps for forwarding
- Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Video: Smart H.265+/H.265/Smart H.264+/H.264
- Audio: G.711A/G.711U/PCM/G726
- Record Mode: Priority of record mode: Manual recording/alarm recording/motion detection recording/timed recording
- General Alarm: Motion detection, privacy masking, video loss, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Alarm Linkage: Video recording, snapshot, log, preset point, tour
- HDD: 2 SATA ports, up to 10TB for a single HDD
- USB: 1 front, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- RCA Input: 1
- RCA Output: 1
- Alarm: 4 input/2 output
- Network: 1 RJ45 port (10/100/1000 Mbps)
- Operating Conditions 10C to +55C
- Storage Conditions 0C to +40C
- Operating Humidity 10%~90%
- Storage Humidity 30%~85%
- Power Supply: 100V240V, 47Hz63HZ, 3.5A
- Dimensions: 14.76"x12.89"x2.12"
- Net Weight: 5.80 lb
- Gross Weight: 8.62 lb
