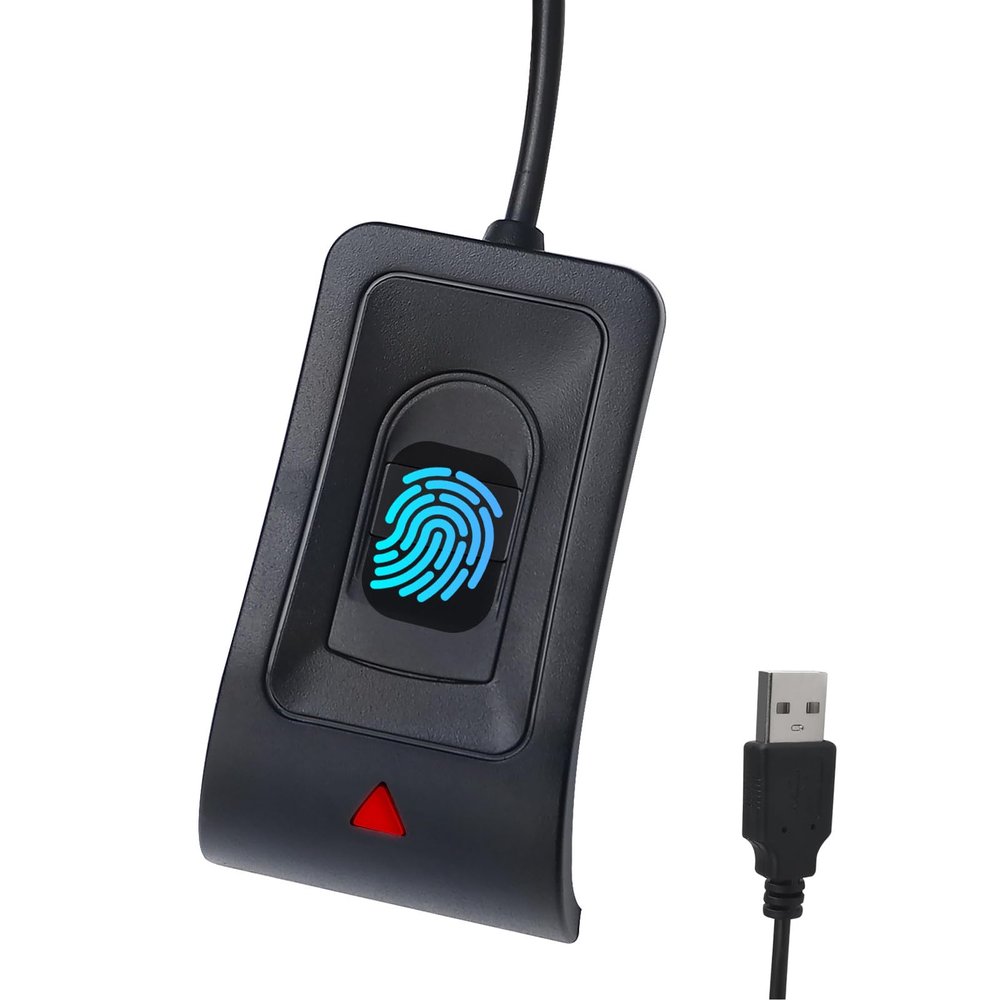

Desktop USB Fingerprint Reader, Computer Fingerprint Key Reader, USB Security Key with Extension Cable for Auto Calibration Recognition, Password

Description

• Hold Many Fingerprints: Fingerprint scanner can hold 10 fingerprints, set fingerprints for multiple accounts, set fingerprints for each family member using a separate account, and automatically log in to their own accounts through fingerprints.
• 360 Degree Auto Calibration: 360 degree auto calibration and recognition function, press the correctly registered finger at any angle on the module to complete the comparison.
• Multifunctional: Multi functional design, fingerprint collection, fingerprint registration, fingerprint matching and fingerprint search can be done independently.
• Wide Application: Mini fingerprint reader is used for fingerprint access control machine, fingerprint root search, fingerprint attendance machine, fingerprint storage cabinet, one touch automatic operation, fingerprint printing, fingerprint lock, fingerprint security.
• Compact Structure: Computer fingerprint reader is compact, easy to carry and store, low power consumption, universal interface, high reliability and easy to operate.

Spec:
Item Type: Fingerprint Key Reader
Material: ABS
CPU: 144Hz main frequency, 1M Bits Flash Memory, 128KB
Fingerprint Capture: Capacitive capture
Fingerprint Image Size: 192 x 192 (pixel), 508 DPI
Fingerprint Registration Capacity: 10 by default, expandable to 5000
False Acceptance Rate (FAR): Rejection Rate (FRR): Matching Method: 1:N and 1:1 matching
Fingerprint Template Size: 570 bytes Byte
Security Level Setting: Level 1 to Level 5 configurable, factory set value: Level 3
Processing Speed:
Fingerprint Feature Extraction Time 1:N matching time (for 3000 full registrations) Communication Interface: UART, 3.3V-TTL level or USB communication
Serial Communication Parameters:
No Parity Parity = NONE, 1 stop bit Stop Bit = 1
No Control = NONE
Baud rate of 9600, 19200, 38400, 57600, 115200 (bps)
Factory Setting: 115200bps
Operating Voltage: vin voltage: DC3.3V10%
Operating Current: less than 30mA, peak less than 80mA (instantaneous current) when collecting fingerprints
Sleeping Current: less than 10uA working environment
Operating Temperature: -10-60

Package List:
1 x Fingerprint Key Reader
