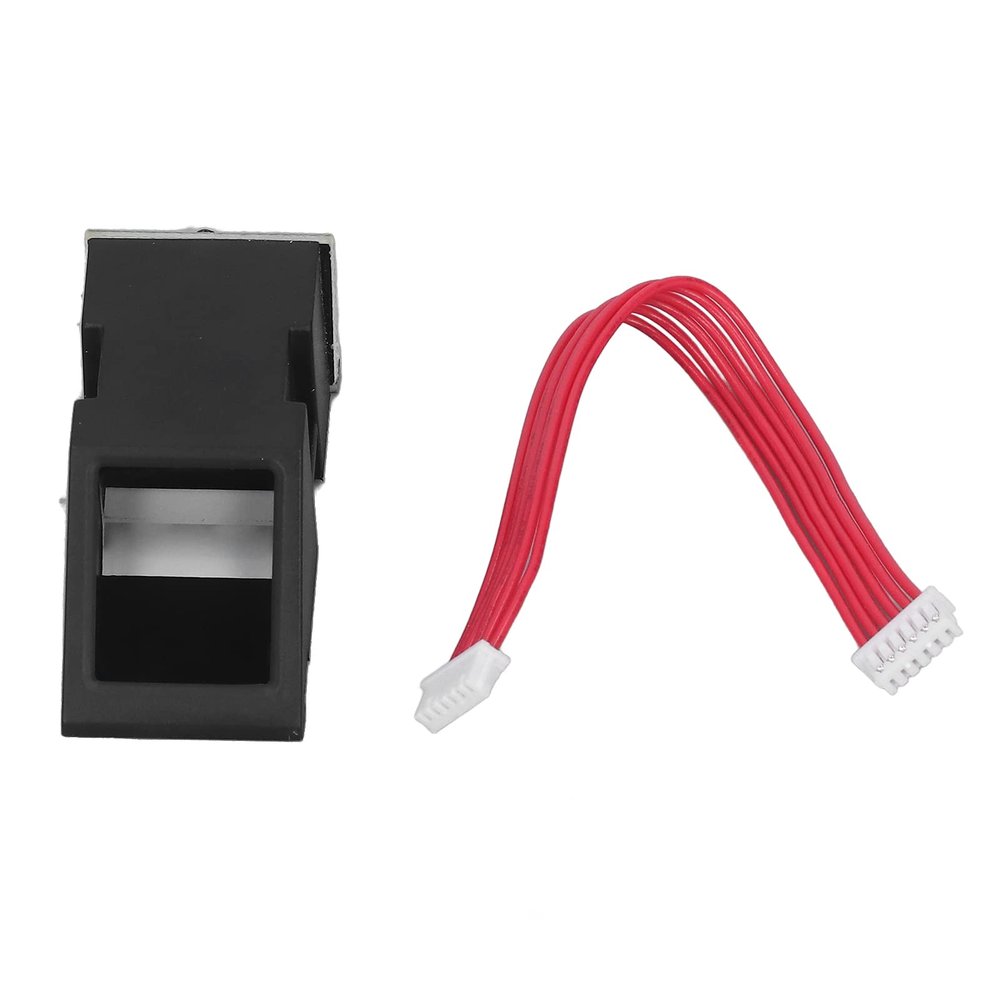

DC3.66.0V DY50 Optical Fingerprint Reader Sensor Module Embedded Access Control Device for Fingerprint Identification Systems

Description

• MULTIPLE FUNCTIONS -- With independently complete fingerprint collection, fingerprint registration, fingerprint comparison, live fingerprint detection and fingerprint search functions.
• -- Good adaptability to all kinds of fingerprints, such as dry fingers, wet fingers and light textured fingers, etc., with high recognition rate and good correction.
• COMPACT SIZE -- The sensor is small in thickness and volume, flexibly embedded in various products with limited volume, with strong antistatic ability, and .
• SIMPLE DEVELOPMENT -- need to have expertise in fingerprint identification, develop your own fingerprint application products according to the provided control instructions.
• WIDE APPLICATION -- Suitable for various fingerprint identification systems, such as fingerprint door locks, safes, industrial computers, POS machines, attendance machines, etc.

Specification:
Item Type: Fingerprint Sensor
Model: DY50
Material: ABS
Power Scatter: 7.2 Watts
Supply Voltage: DC 3.6-6.0V
Supply : Current: Less than 120MA
Current: Less than 140ma
Fingerprint Imaging Time: Less than 1.0 seconds
Window Size: 1x18mm/0.04x0.71in
Coincidence Mode: Coincidence Mode (1: 1), Search Mode (1: N)
Signed File: 256 bytes
Template File: 512 bytes
Storage Capacity: Up to 200
Rating: 5 (Low To High: 1.2, 3.4, 5)
False Rate (): Below 0.001% (Level 3)
False Rejection Rate (RRF): Less than 1.0% (Level 3)
Search Time: Less Than 1.0 Seconds (average 1: 500)
Computer Interface: ( level TTL) or USB2.0 USB1.1
Baudio () Communication Speed: (9600 x n) where n=1-12 (n=6 previous value, ie 57600bps)
Working Environment:
Temperature: -20-50
Humidity: 40-85%RH ( shrinkage)
Storage: Temperature: -40-85
Humidity: Less than 85%h (without condensation)
Application Areas:

embedded into a variety of end products such as:
1. Information products, access control and attendance
2. safety deposit box (cabinet)
3. POS machine
4.
5. Vehicle fingerprint products, etc.

Package List:
1 x Fingerprint Reader
1 x Cable
