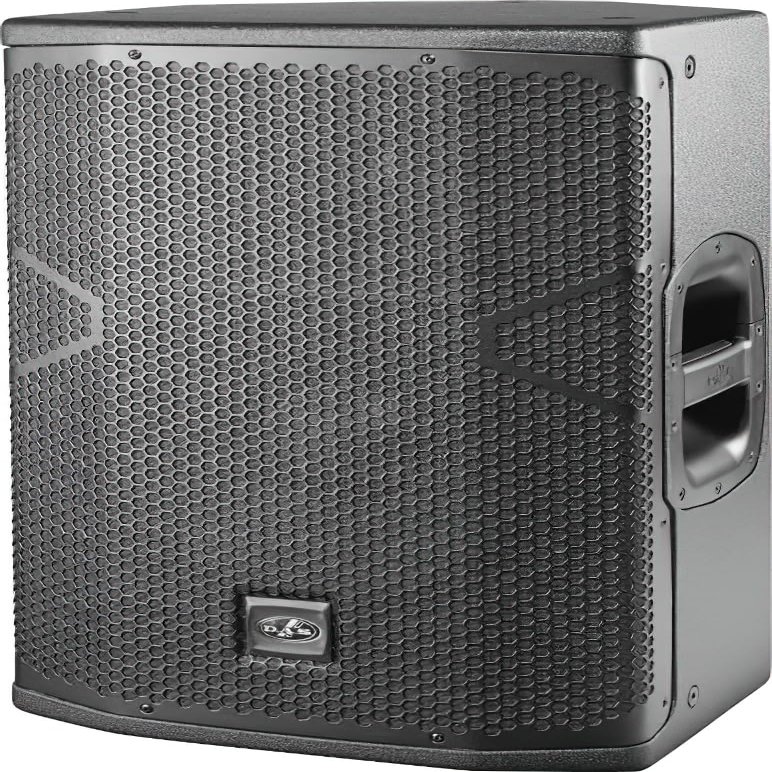

DAS Audio 10431090 Model VANTEC-12 2-Way Passive Full Range Loudspeaker, Black; 12" F Series Low Frequency Transducer; 1" FEM Optimized Compression Driver; Built-in Rigging Points

Description

• 2-way, full-range system
• 12" Fseries bass loudspeaker
• 1 x FEM-optimized compression driver
• Enclosure design Allows for stage monitor use
• Built-in rigging points
• Dual Angle (0/10) Pole mount socket
• Applications: Concerts and corporate A/V, Portable and live clubs, Concert halls, theaters and auditoriums, Houses of worship

DAS Audio 10431090 Model VANTEC-12 2-way Passive Full Range Loudspeaker, Black; 12" F Series Low Frequency Transducer; 1" FEM Optimized Compression Driver; Built-in Rigging Points

The VANTEC-12 is a 2 way passive full range loudspeaker that utilizes a 12" F series low frequency transducer and a 1" FEM optimized compression driver. The multi angle cabinet is constructed of Birch plywood protected by the DAS ISO-flex black paint finish. Two bar handles and a rugged steel grille are provided. A 35 mm tripod socket with dual angle (0/10) allows for stand mounting.

Key Features:
- 2-way, full-range system
- 12" Fseries bass loudspeaker
- 1 x FEM optimized compression driver
- Enclosure design allows for stage monitor use
- Built-in rigging points
- Dual Angle (0/10) Pole mount socket
- Applications: Concerts and corporate A/V, Portable and live clubs, Concert halls, theaters and auditoriums, Houses of worship

Specifications:
- Frequency Range (-10 dB): 65 Hz - 20 kHz
- Horizontal Coverage (-6 dB): 90
- Vertical Coverage: 50
- Nominal Impedance: 8 ohms
- RMS Power Handling: 500 W
- Peak Power Handling: 2000 W
- On-axis Sensitivity 1W/1 m: 98 dB SPL
- Maximum Peak SPL at 1 m: 135 dB
- Recommended Amplifier: PA-1500
- Audio Input Connector: 1 x speakON NL4
- Audio Output Connector: 1 x speakON NL4
- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Depth: 380 mm (15 inches)
- Dimensions (HxWxD): 24.4 x 15 x 15 inches
- Net Weight: 45.2 pounds
