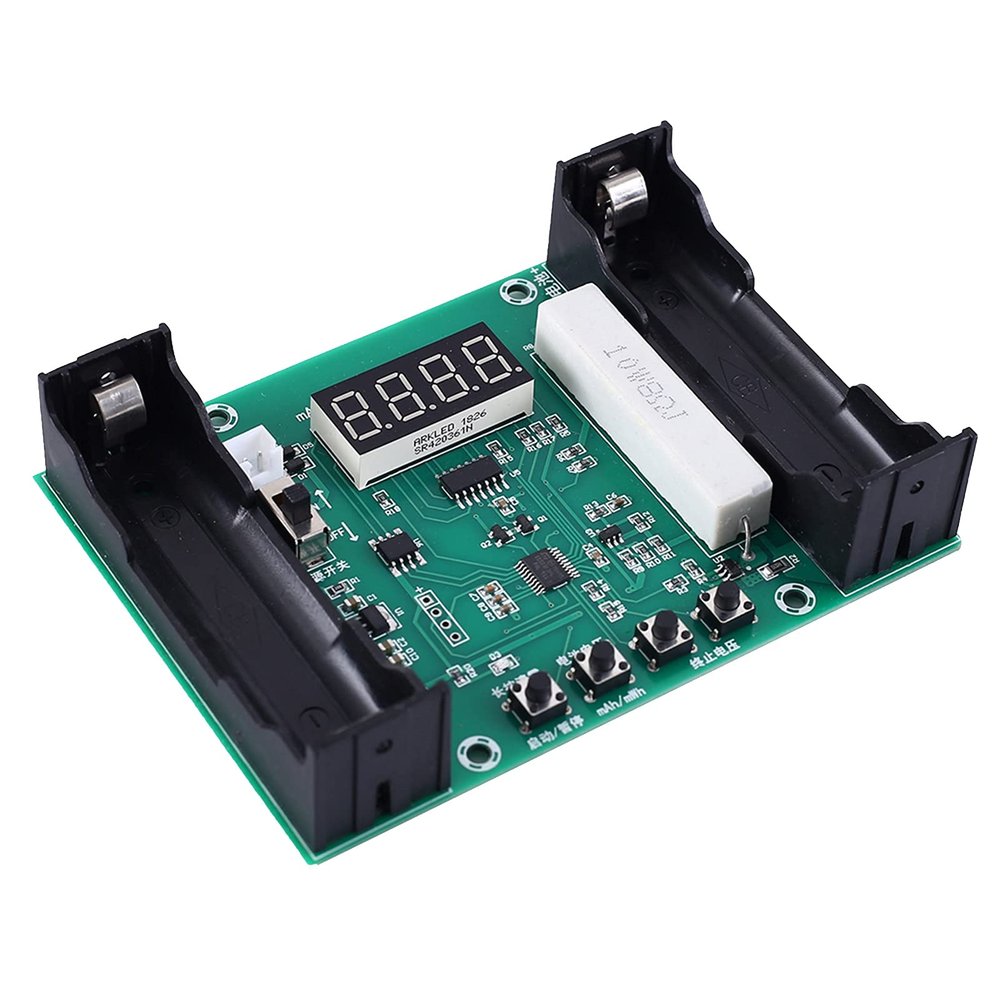

DADAKEWIN Battery Capacity Tester MAh MWh for 18650 Lithium Battery Digital Measurement Lithium Battery Power Detector Tester Voltmeter (Size : 18650)

Description

• 1>.Dual working power supply
• 2>.18650 battery special tester
• 3>.Support display discharge capacity
• 4>.Support display discharge energy
• 5>.Support parameter memory function

1.Description:It is a Lithium battery capacity tester.It is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery.2.Feature:1>.Dual working power supply2>.18650 battery special tester3>.Support display discharge capacity4>.Support display discharge energy5>.Support parameter memory function3.Parameter:1>.Model: XH-M2402>.Work Voltage:DC 5V~12V or 18650 battery3>.Stand-by current:5~7mA4>.Discharge current:500mA5>.Load power: 10W 8ohm6>.Measuring voltage accuracy:0.1V7>.Discharge capacity accuracy:1mAh8>.Discharge energy accuracy:1mWh9>.Work Temperature:-25~8510>.Work Humidity:5%~95%RH11>.Size:110*80*25mm4.18650 battery introduction:1>.The rated voltage of the 18650 battery is generally 3.7V.2>.The discharge stop voltage of the 18650 battery is generally 2.75V.3>.It should start charging the battery when the voltage of the 18650 battery drops to 0.875 times(3.24V) the rated voltage.4>.Excessive battery discharge will reduce battery life.5>.It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.6>.The charging voltage is generally 4.2V/4.3V/4.35V7>.Measuring time formula.The discharge current of this product is 500mA.If the battery capacity is 2000mAh.Then the measuring time is about (2000/500) 4 hours.5.Use Steps:1>.Connect work voltage DC 5V~12V from white XH2.54-2P socket or install a 18650 battery at left battery socket.2>.Install a measured 18650 battery at right battery socket.3>.Turn on power supply switch. Then the screen will display current battery voltage.4>.Set discharge stop voltage.Press button + and - to set discharge stop voltage.Parameters can be saved automatically.It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.5&g
